Vacuum controller

We can't find products matching the selection.

Frequently Asked Questions (Vacuum controller)

Two-point control works by opening and closing a solenoid valve. The pump runs continuously, the vacuum is maintained between two switching points within a hysteresis range. VARIO control, on the other hand, controls the motor speed of the pump directly. The pump runs only as fast as necessary, which significantly saves energy, enables whisper-quiet operation, and extends maintenance intervals. VARIO offers precise vacuum without hysteresis for shortest process times and reproducible results. The "Automatic Evaporation" mode with continuous boiling pressure tracking is only available with VARIO pumps.
Yes, with the SYNCHRO function extension, two processes can be controlled in parallel with one VACUU·SELECT controller. The processes run independently and simultaneously – for example, two rotary evaporators or two vacuum outlets in the fume hood (here a combination of rough and fine vacuum is also possible). SYNCHRO is designed for two-point control and requires additional accessories such as suction line valves, sensors, Y-adapters, and check valves. The SYNCHRO license applies to a single controller.
LADS OPC UA (Laboratory and Analytical Device Standard) is a manufacturer-independent communication standard for laboratory devices, based on OPC UA from Industry 4.0. Selected vacuum pumps from VACUUBRAND with VACUU·SELECT controller support LADS and can be seamlessly integrated into LIMS, ELN, MES, or cloud platforms. The interface enables process control, monitoring, asset management, and download of logs. This forms the foundation for automated workflows, auditable processes, and the Laboratory 4.0 of the future – with standardized networking of devices from different manufacturers.
For integration into automation systems, from network integration to laboratory information and management systems (LIMS), VACUUBRAND offers suitable connections as well as modern and proven interfaces. These include Modbus TCP (over Ethernet), RS-232 (over USB with additional adapter), and LADS OPC UA on request. Via the VACUU·BUS system, you can integrate additional valves and sensors into your process. The connection of components is simply via "plug and play".
Depending on the configuration, the vacuum controller offers many predefined processes: for example, vacuum control, evacuation, evacuation and hold, automatic evaporation or boiling point detection, filtration, freeze-drying, vacuum drying, Schlenk line, and VACUU·LAN. In addition, custom processes can be created via the editor.

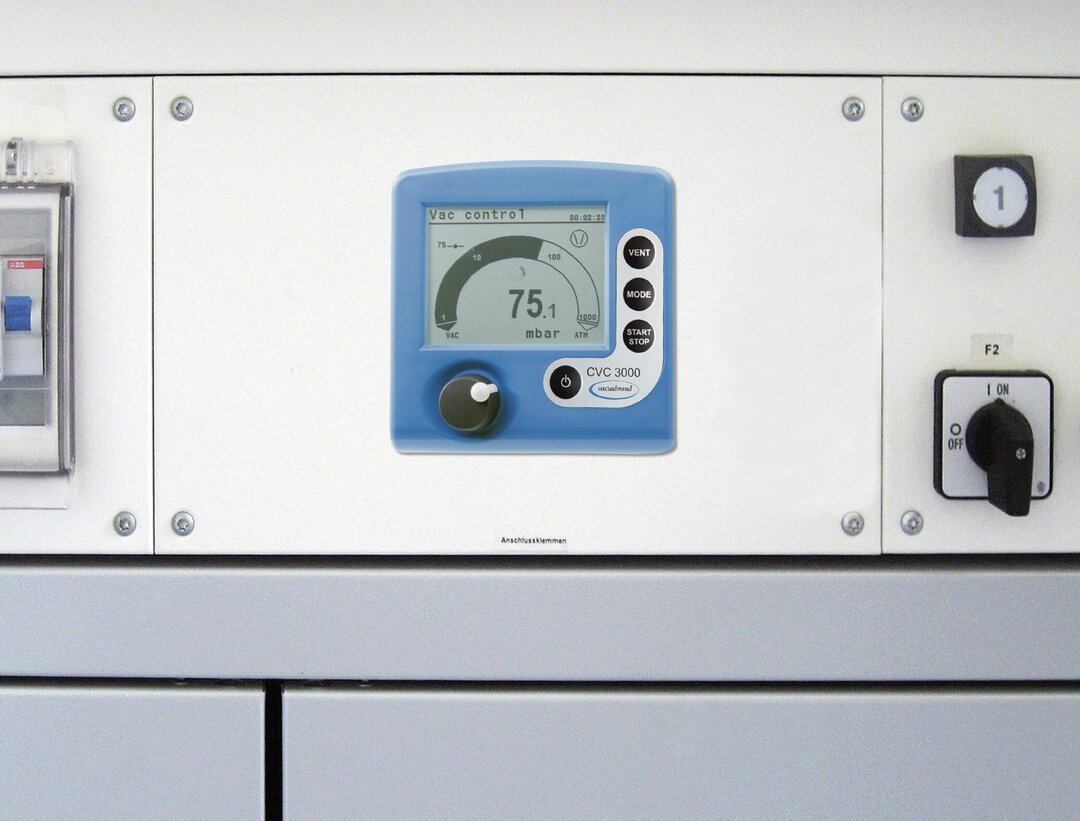

Yes, the vacuum controller is ready for immediate use with existing vacuum sources as a benchtop version, scaffold mounting, or built-in version for laboratory furniture. It is equipped with integrated sensor and chemistry vacuum valve as well as standard laboratory connections. In the built-in version, spring clips are mounted on the back of the controller. The device can thus be clipped directly into the installation cutout of laboratory furniture or a control cabinet. The display can be rotated so that the controller can be clipped in either horizontally or vertically.
Two optional software add-ons can be ordered for the VACUU·SELECT vacuum controller. These are "User Management" for flexible rights assignment and "SYNCHRO" for parallel control of two processes with a single vacuum controller.

VACUU·SELECT controller for precise vacuum control in the laboratory

Predefined applications at the touch of a button – developed for the chemistry lab

Ready for the digital laboratory with modern interfaces

The VACUU·SELECT vacuum controller is available in various versions for all laboratory requirements. The compact controller with integrated sensor and chemistry vacuum valve is ready for immediate use with existing vacuum sources – as a benchtop version, scaffold mounting, or built-in version for laboratory furniture. Chemistry pumping units combine controller, sensor, and diaphragm pump into ready-to-use complete solutions. Packages for fine vacuum control for existing vacuum sources cover the control range from atmospheric pressure down to 10⁻³ mbar and contain all required components. VACUU·SELECT supports two control methods: Classic two-point control through valve control as well as precise VARIO control through speed control for shortest process times and minimal energy consumption.
The VACUU·SELECT controller impresses with application-oriented user guidance with integrated help function and intuitive touch display in 15 languages. Predefined processes for all common laboratory applications enable quick start without complex parameterization. The "Automatic Evaporation" mode finds the boiling pressure independently and continuously adjusts the vacuum – fully automatic at the touch of a button. The application editor allows easy creation of individual vacuum processes via drag & drop. Chemically resistant materials, potted display electronics, and a glass touchscreen offer the best protection. With vacuum pumps with integrated controller, the control unit can be detached – the pump can be placed in the base cabinet while you conveniently operate the controller from the laboratory bench.
VACUU·SELECT vacuum controllers with LADS OPC UA interface are available on request. These are prepared for integration into modern laboratory networks and automation systems. Selected vacuum pumps with integrated VACUU·SELECT controller support LADS OPC UA – the new cross-manufacturer communication standard for laboratory and analytical devices. This enables seamless integration into LIMS, ELN, MES, SCADA, or cloud platforms. The LADS interface supports process control, monitoring, asset management, and download of process and result logs. Additionally, modern interfaces such as Modbus TCP over Ethernet and RS-232 over USB are available. Additional valves and sensors can be integrated via the VACUU·BUS system through plug and play – the foundation for automated workflows and auditable processes in Laboratory 4.0.
