RZ 6 +FOPackage rotary-vane pump
Overview
- high flow rates even at vacuum levels approaching ultimate vacuum
- high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
- vacuum-tight at switch-off; external anti-suckback valve not needed
- large oil volume: Long intervals between oil changes
- ease of maintenance due to telescopic design
Ultimate vacuum
2 x 10-3 mbar
Ultimate vacuum with gas ballast
1 x 10-2 mbar
Max. pumping speed 50 Hz
5.7 m3/h
SKU
20798049
Package rotary-vane pump in action
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The FO oil mist filter separates nearly 100% of oil mist at the ultimate vacuum of the pump. Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers.
Technical data and graphs
| Max. pumping speed 50 Hz | 5.7 m3/h | |
| Max. pumping speed 60 Hz | 4.0 cfm | |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10-4 mbar | |
| Ultimate vacuum | 2 x 10-3 mbar / 1.5 x 10-3 torr | |
| Ultimate vacuum with gas ballast | 1 x 10-2 mbar / 0.75 x 10-2 torr | |
| Number of stages | 2 | |
| Water vapor tolerance with gas ballast | 40 mbar | |
| Lower ambient temperature (operation) | 12 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Oil capacity (B-Oil) min. | 0.34 l | |
| Oil capacity (B-Oil) max. | 0.73 l | |
| Inlet connection | small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.18 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 420 mm | |
| Dimension B in mm | 230 mm | |
| Dimension H in mm | 240 mm | |
| Weight | 17.8 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA | |
| NRTL certification | No | |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. With oil mist filter FO. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
für Zoom klicken
Pump down graph 50 Hz (10 l volume)
für Zoom klicken
Pump down graph 60 Hz (10 l volume)
Equipment
-
![Tubing, stainless steel, KF DN 16,length 1000 mm]()
KF DN 16, 1000 mm Metal vacuum tubing with small flangesThis might also interest you
-

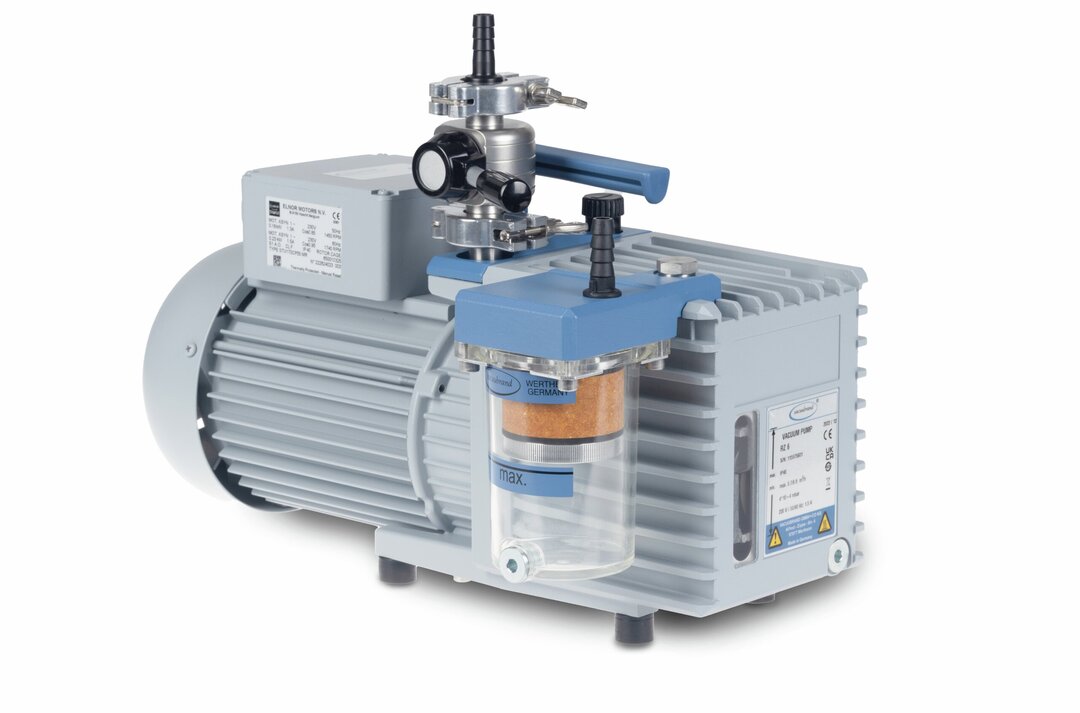

![Rotary vane pump package RZ 6 with oil mist filter and butterfly valve VS 16]()

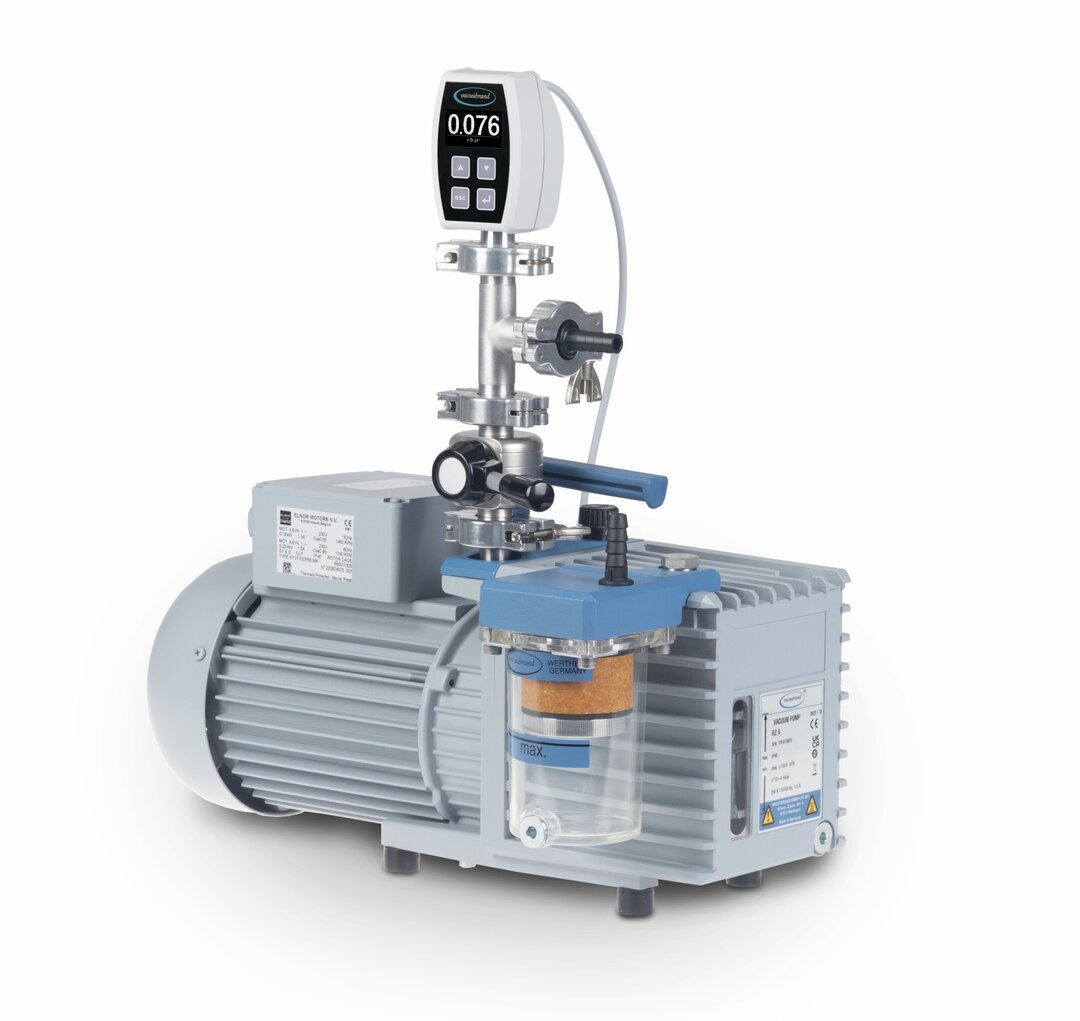

RZ 6 +FO +VS 16 Rotary vane pump![Rotary vane pump package RZ 6, with oil mist filter, butterfly valve VS 16 and vacuum gauge VACUU·VIEW extended, 230 V/50-60 Hz]()
