KF DN 20/25Adapting centring ring for small flange
Overview
SKU
20660128
Adapting centring ring for small flange in action
Centring ring, stainless steel, KF DN 20/25, sealing ring FPM
Technical data and graphs
| Dimensions A in mm | 26 mm | |
| Dimension B in mm | 20 mm | |
| Dimensions C in mm | 22 mm | |
| Sealing ring inner diameter x cord thickness in mm | 28 x 5 |
This might also interest you
-
![Clamping ring, aluminum, KF DN 20/25]()
KF DN 20/25 Clamping ring for small flange![Centring ring, stainless steel,KF DN 25, sealing ring FPM]()

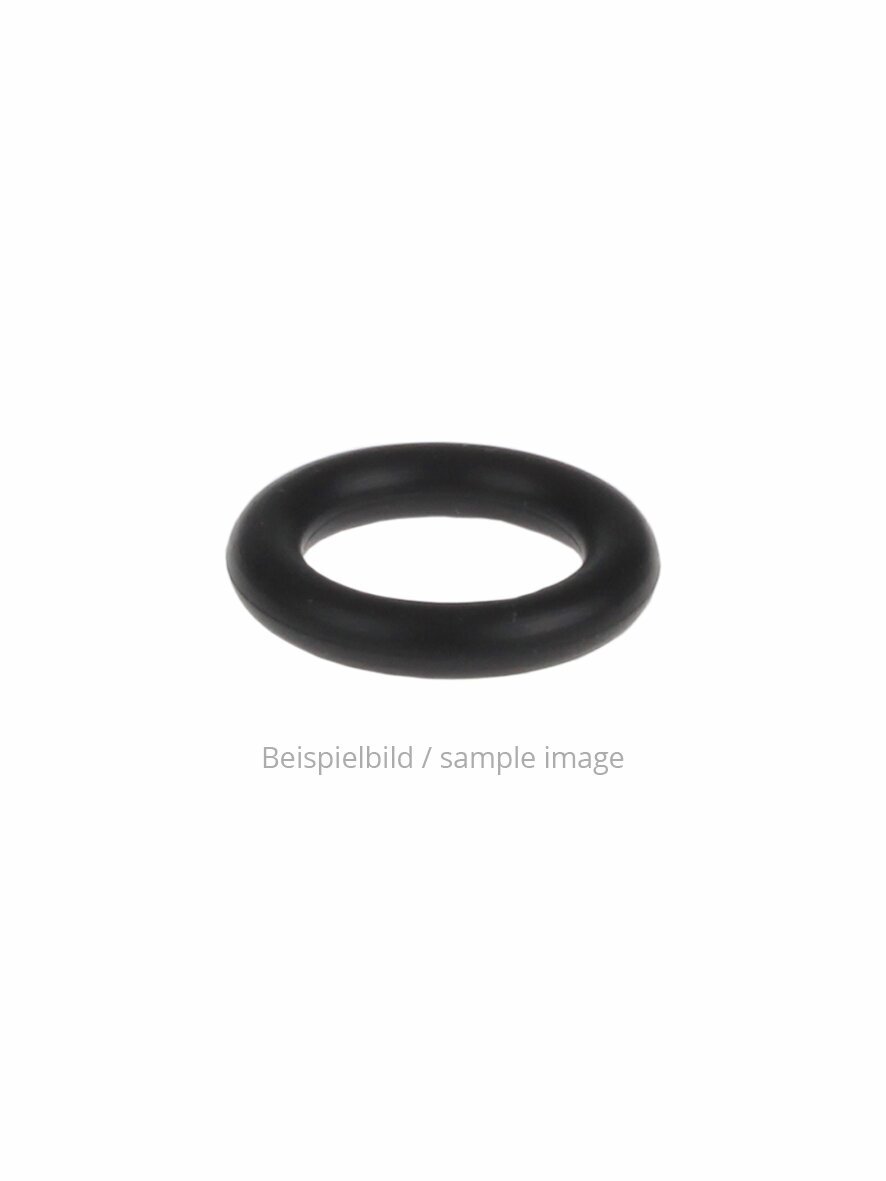

KF DN 25 Centring ring for small flange![Spare sealing ring, FPM, for KF DN 16,18mm x 5mm]()
