VK 25Ball valve

Overview

SKU 20665505
On demand

Inquire
Add to Compare list
main product photo

Ball valve in action

Ball valve VK 25, brass, small flange, KF DN 25

Valves of the VK series are sturdy isolation devices for the rough and fine vacuum range. A precisely machined ball with a hole through the middle is rotated by means of shaft and lever. When the valve is open, the hole provides unimpeded passage of media over the entire nominal cross section. Ball valves are therefore also used for load locks, e.g., for sample holders, thermocouples or helium supply lines. The VKE series uses stainless steel for the metal parts and fiberglass reinforced PTFE seatings.


Technical data and graphs

Flange connection small flange KF DN 25
Operation Manual
Leakage rate 1 x 10-6 mbar l/s
Leakage rate of seat 1 x 10-6
Fitting length between flanges 100 mm

This might also interest you

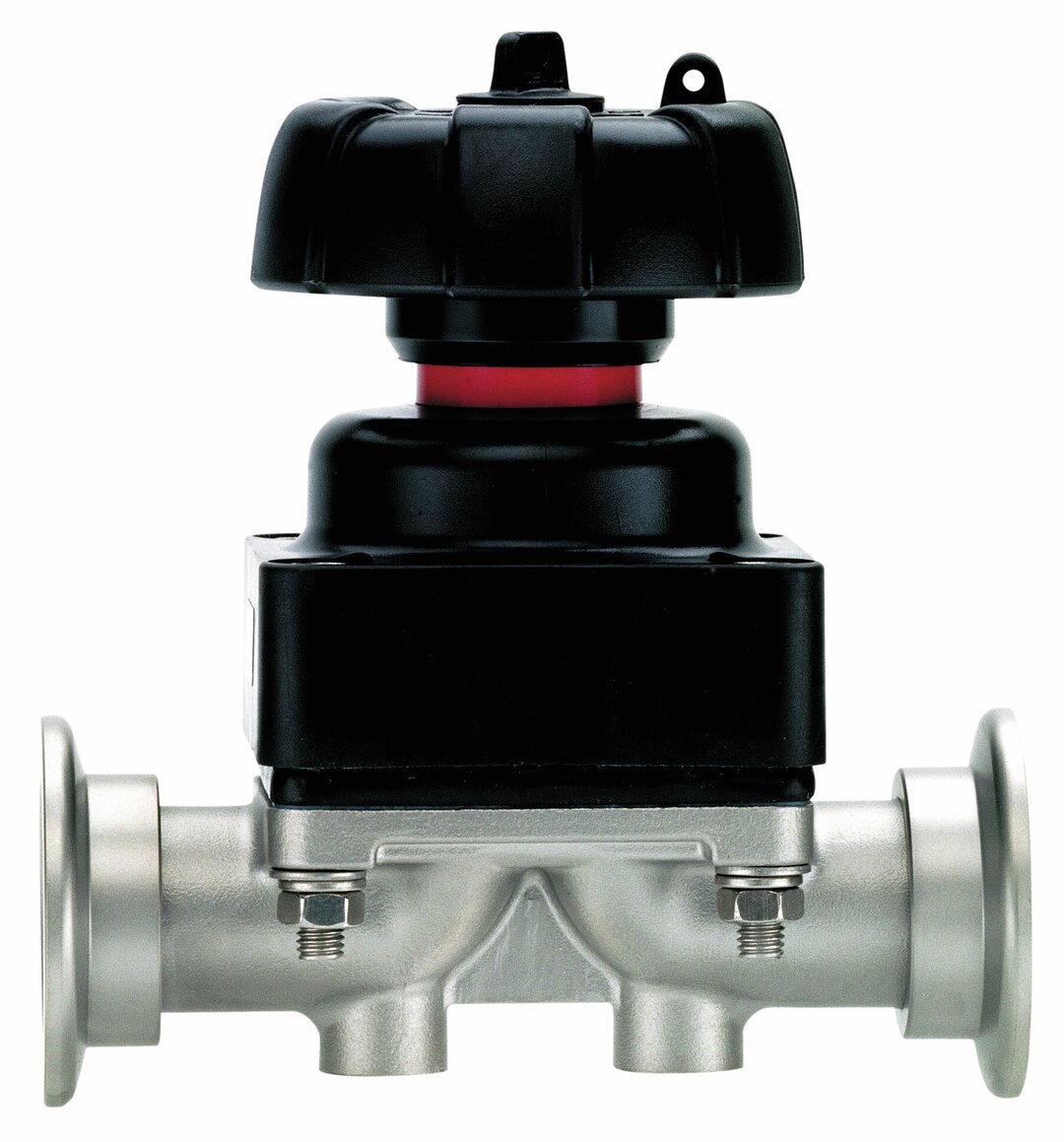

  1. Diaphragm in-line valve VM 25
    VM 25 Diaphragm valve
    • Chemically resistant
    • Hand-operated
    • Leak rate 1 x 10-4 mbar l/s

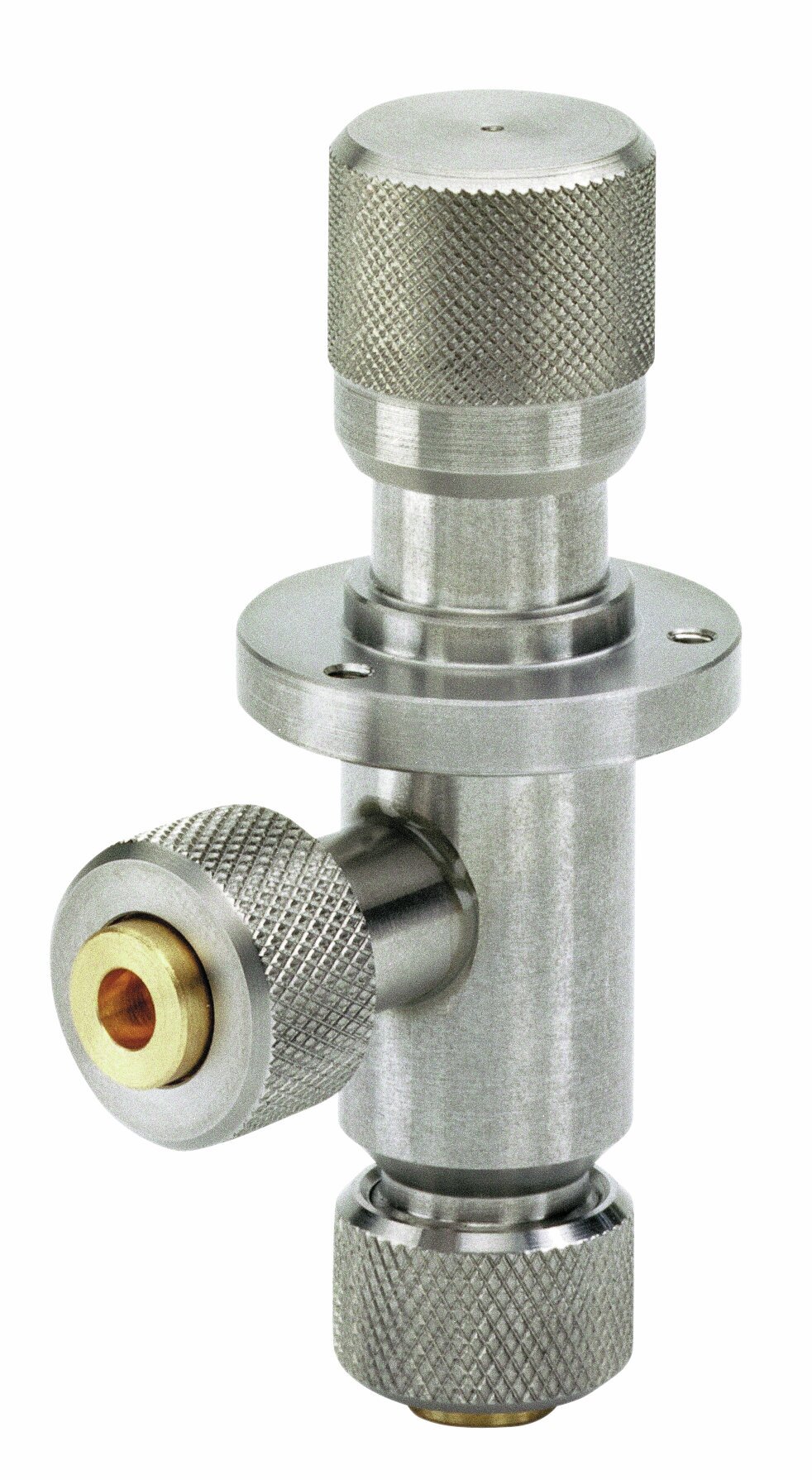

  2. Gas inlet valve VGL, stainless steel,with soldering connections
    VGL Gas inlet valve
    • Hand operated
    • Fixed, permanent fitting
    • Leak rate 1 x 10-9 min l/s

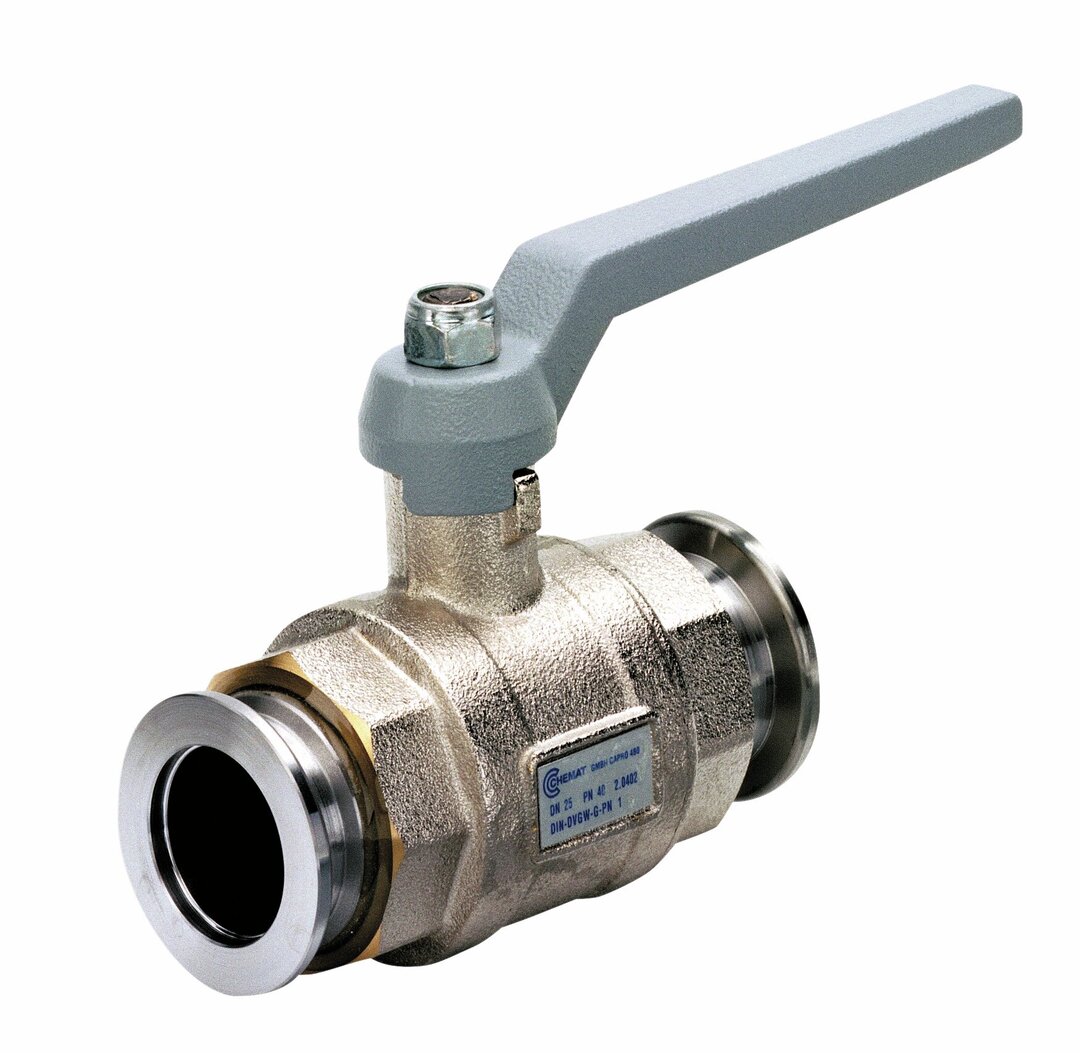

  3. Ball valve VK 16, brass, small flange,KF DN 16
    VK 16 Ball valve
    • For rough and fine vacuum range
    • Leak rate 1 x 10-6 min l/s
  4. Coolant valve VKW-B, VACUU·BUS,DN 1,5 mm, inlet G3/4" / G1/2",outlet nozzle 6 mm, cable length 2 mcertification (NRTL): C/US
    VKW-B Cooling water valve
    • Mains plug VACUU·BUS®
    • Nominal width 1.5 mm

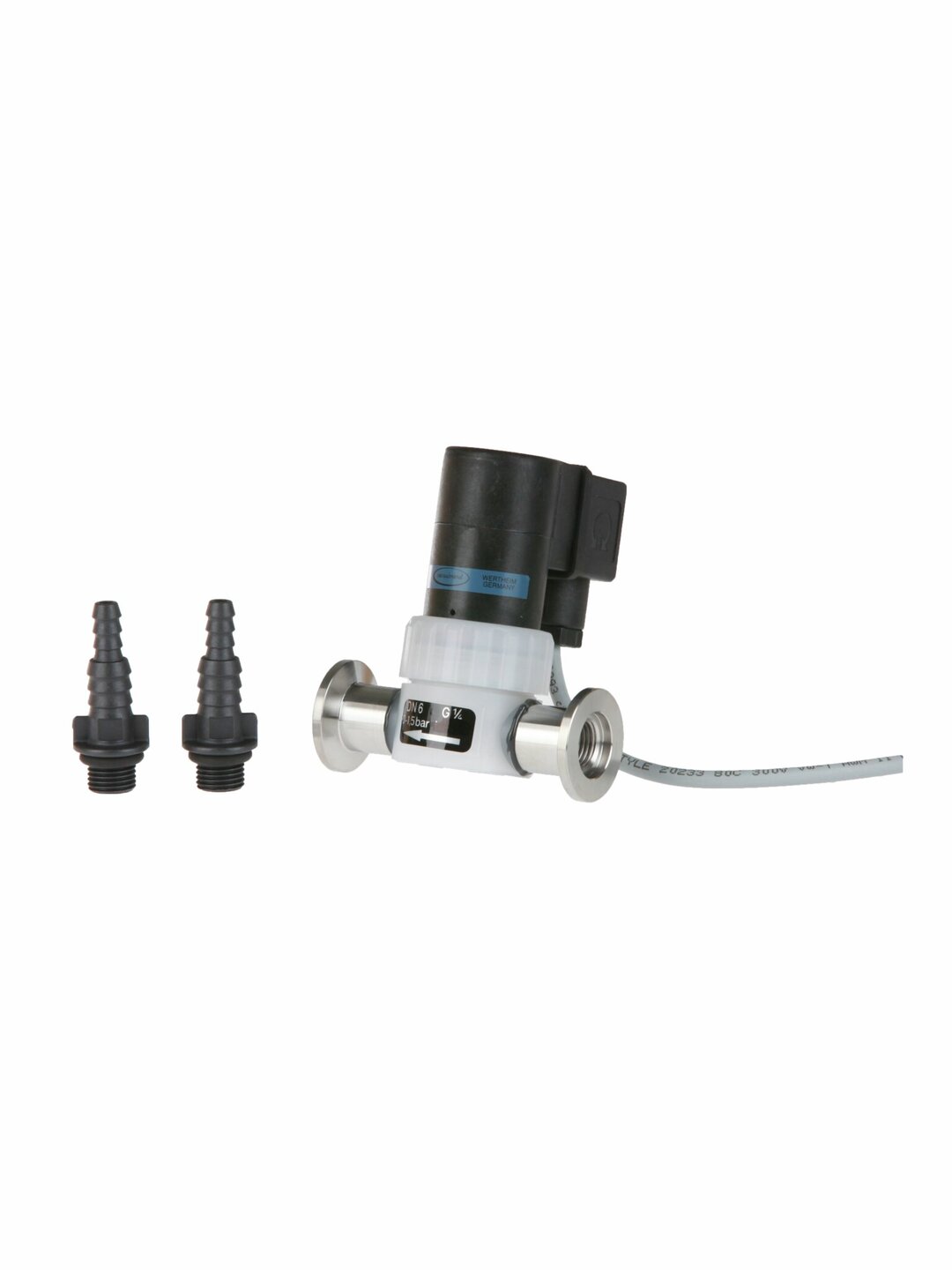

  5. In-line isolation valve VV-B 6C,VACUU·BUS, PVDF/fluoroplastics,electromagnetic, with KF DN 16 andhose nozzle, certification (NRTL): C/US
    VV-B 6C Solenoid-operated valves
    • High operating cycles
    • Long term tightness
    • Leak rate 1 x 10-2 mbar l/s

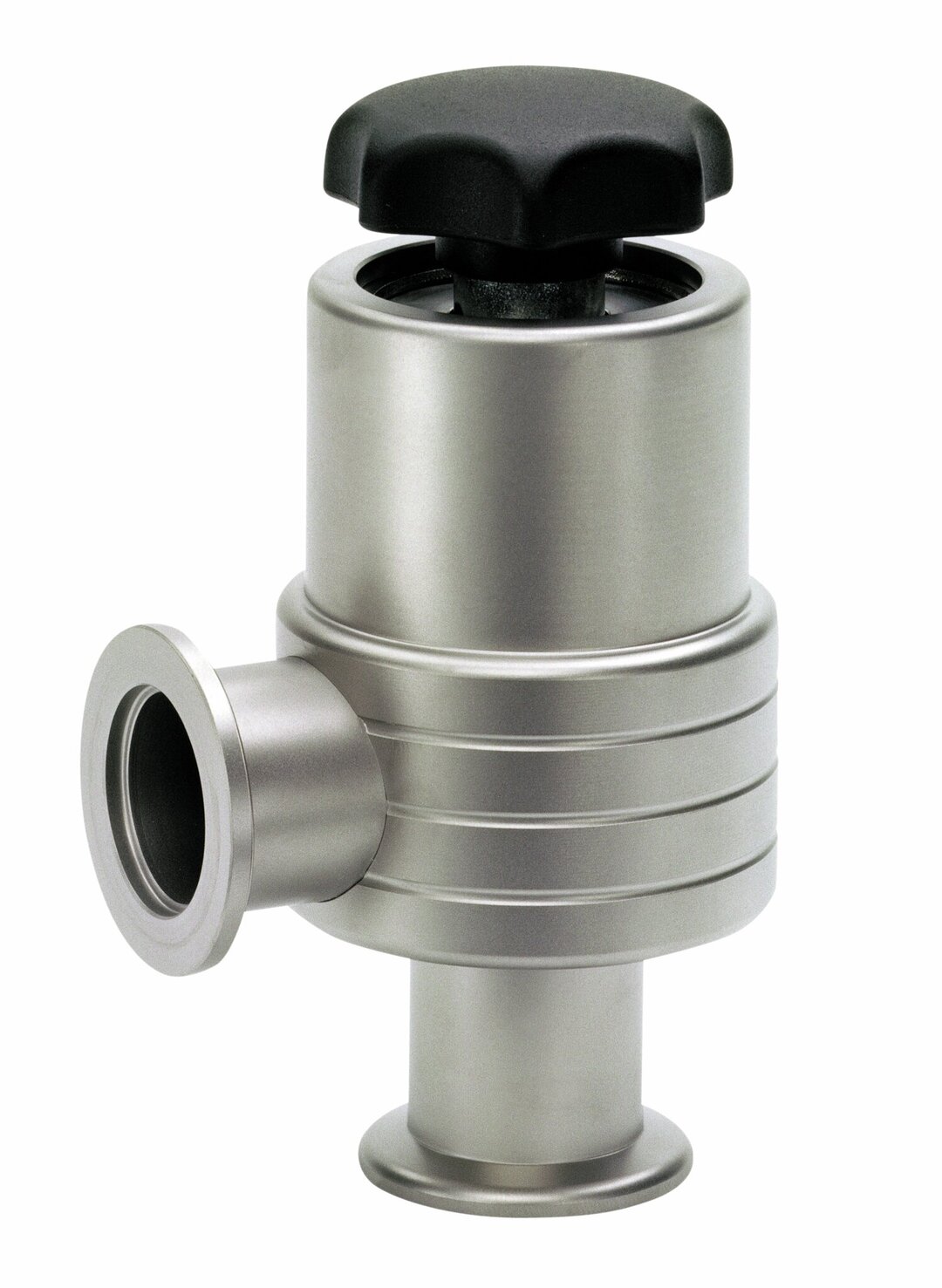

  6. Bellow sealed angle valve VE,stainless steel, KF DN 16
    VE 16 WIG High vacuum bellow valve
    • Excellent gas tightness
    • Minimum degassing
    • Leak rate 1 x 10-9 mbar l/s

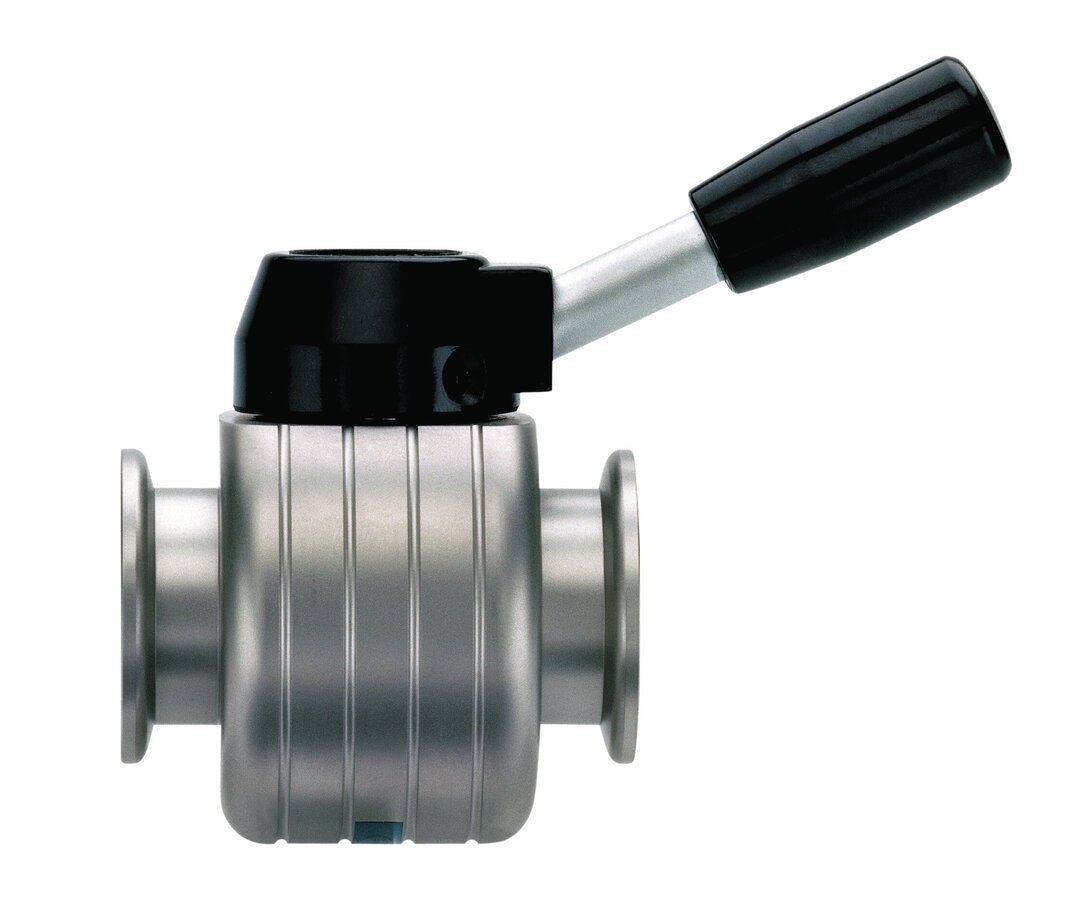

  7. In-line valve VS 25, stainless steel,small flange, KF DN 25
