RE 2.5Rotary vane pump
Overview
- high flow rates even at vacuum levels approaching ultimate vacuum
- very good ultimate vacuum even with gas ballast
- vacuum-tight at switch-off; external anti-suckback valve not needed
- large oil volume: Long intervals between oil changes
- ease of maintenance due to telescopic design
Ultimate vacuum
3 x 10-1 mbar
Ultimate vacuum with gas ballast
8 x 10-1 mbar
Max. pumping speed 50 Hz
2.3 m3/h
Rotary vane pump in action
The one-stage pumps RE 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. Typical applications are lyophilization, fine vacuum distillation and evacuation of small volumes, e.g., for utilization of µ-focus x-ray tubes or filling with pure gases.
Technical data and graphs
| Max. pumping speed 50 Hz | 2.3 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.65 cfm | Select diagram |
| Ultimate partial vacuum (abs.) without gas ballast | 3 x 10-1 mbar | |
| Ultimate vacuum | 3 x 10-1 mbar / 2.3 x 10-1 torr | |
| Ultimate vacuum with gas ballast | 8 x 10-1 mbar / 6 x 10-1 torr | |
| Number of stages | 1 | |
| Vacuum controller | 17 | |
| Lower ambient temperature (operation) | 12 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Oil capacity (B-Oil) min. | 0.40 l | |
| Oil capacity (B-Oil) max. | 1.00 l | |
| Inlet connection | small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.1 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 390 mm | |
| Dimension B in mm | 156 mm | |
| Dimension H in mm | 240 mm | |
| Weight | 12.8 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 48 dBA | |
| NRTL certification | No | |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
für Zoom klicken
Max. pumping speed 50 Hz
für Zoom klicken
Max. pumping speed 60 Hz
für Zoom klicken
Pump down graph 50 Hz (10 l volume)
für Zoom klicken
Pump down graph 60 Hz (10 l volume)
Downloads
Equipment
-
![Tubing, stainless steel, KF DN 16,length 1000 mm]()
KF DN 16, 1000 mm Metal vacuum tubing with small flanges- stainless steel
- Nominal width KF DN 16 mm | length 1000 mm
- Leak rate 1 x 10-9 mbar l/s
![Separator AK for RE/RZ 5 and RE/RZ 6 and RE/RZ 2.5]()
AK for RE/RZ 5/6/2.5 Separator inlet side- Compact and leak-tight
- High conductance
- Easy draining of condensate
![Oil mist filter FO R 2 / 2.5 / 5 / 6]()
FO R 2/2.5/5/6 Oil mist filter outlet side- Very high degree of separation
- Transparent catchpot
- Easy draining of oil
![VACUU·SELECT package for fine vacuum controlwith VACUU·VIEW extended for KF DN 16, within-line isolation valve VV-B 15C, T-piece,hose nozzle DN 10 and connecting parts DN 16,100-230V / 50-60Hz, plug CEE/CH/UK/US/AUS/CN]()
VACUU·SELECT + VACUU·VIEW extended, KF DN 16 Package fine vacuum control- Control down to 10-3 mbar.
- Automatic boiling point detection
- Predefined vacuum applications
![VACUU·SELECT package for fine vacuum controlwith Pirani sensor for KF DN 16, with in-lineisolation, valve VV-B 15C, T-piece,hose nozzle DN 10 and connecting parts DN 16,100-230V / 50-60Hz, plug CEE/CH/UK/US/AUS/CN]()
VACUU·SELECT + VSP 3000, KF DN 16 Package fine vacuum control- Control down to 10-3 mbar.
- Automatic boiling point detection
- Predefined vacuum applications
![Rubber vacuum tubing, DN 8,price per meter]()
DN 8 mm, sale per meter Rubber vacuum tubing- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
![Small flange with hose nozzleDN 16/DN 10, PP]()
This might also interest you
-

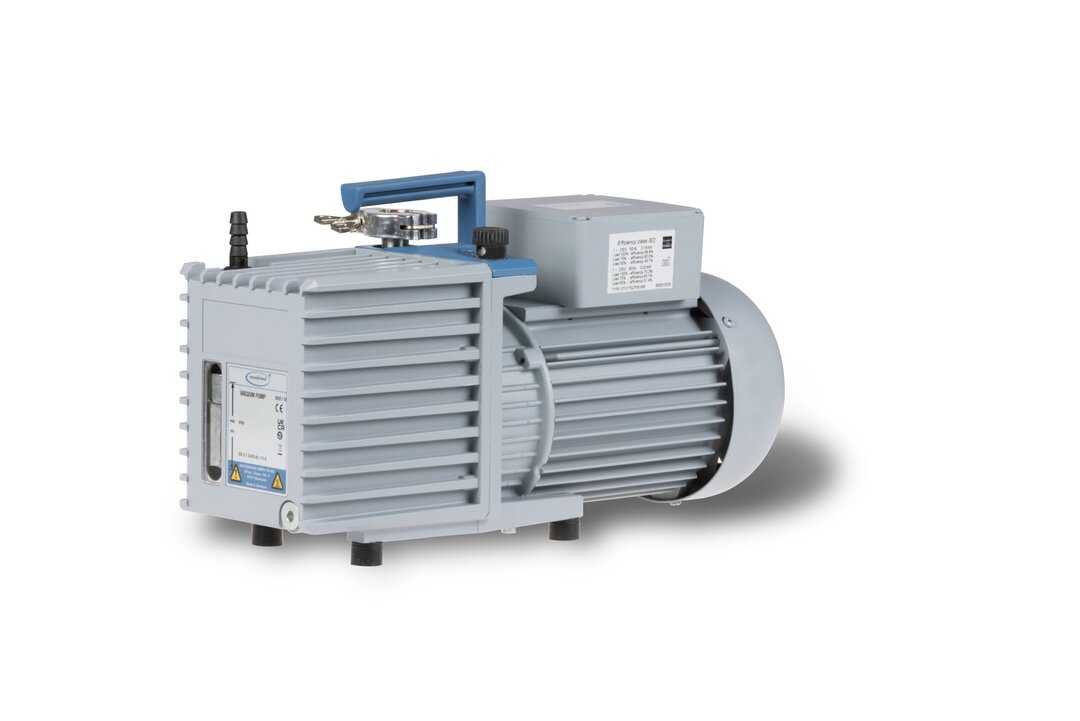

![RE 6 Rotary vane pump]()
