VACUU·SELECTVacuum controller
Overview
- precise VARIO® control via motor speed adjustment in combination with VARIO diaphragm pumps
- classic two-point vacuum control in connection with an external in-line solenoid valve
- graphic user interface simplifies laboratory work
- predefined applications for quick, save time and guarantee reproducible results
- application editor allows easy customization
Articleno.
20700000
Vacuum controller in action
Looking for an intuitive, easy-to-use vacuum controller? VACUUBRAND has introduced the VACUU·SELECT controller - an application-based controller with a touch screen display for all of your lab-scale vacuum processes. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations or create your own application with simple drag-and-drop editing. To use pre-defined applications, simply select your application and press start. The controller independently manages the vacuum process to completion. For solvent evaporation, the VACUU·SELECT controller detects boiling points and adjusts the vacuum process as necessary. You can virtually forget about the vacuum process and devote your attention to other tasks. The VACUU·SELECT controller is an easy-to-use, efficient controller for your lab.
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1080 mbar | |
| Upper measuring limit in torr | 810 torr | |
| Lower measuring limit in mbar/hPa | 0.1 | |
| Lower measuring limit in torr | 0.1 torr | |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr | |
| Vacuum sensor | VACUU·SELECT Sensor | |
| Temperature coefficient | < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K | |
| Vacum connection | Small flange KF DN 16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm | |
| Venting valve | Integrated, hose nozzle DN 4-5 mm | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Protection class IEC 60529 | IP 40 | |
| Protection class UL50E | Type 1 | |
| Protection class front side IEC 60529 | IP 41 | |
| Protection class UL50E front side | Type 2 | |
| Dimension L in mm | 152 mm | |
| Dimension B in mm | 127 mm | |
| Dimension H in mm | 41 mm | |
| Weight | 0.745 kg | |
| Max. current for VACUU BUS (24V DC) | 4 A | |
| Cable length connection in m | 2 m | |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) | |
| NRTL certification | Yes | |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only | |
| Items supplied | VACUU·SELECT vacuum controller, with vacuum sensor, venting valve, power supply, extension cable VACUU·BUS® 2 m, 100-230V / 50-60Hz, plug CEE/CH/UK/US/AUS |
Downloads
VACUU·SELECT vacuum controller,including sensor with air admittance valve,Extension cable VACUU·BUS lengt 2 m and power supply,100-230 V/50-60 Hz, plug CEE/CH/UK/US/AUS/CN
VACUU·SELECT
Vacuum controller
Manual vacuum gauge / controller
Manual
PDF
17.4 MB
17.1 MB
17.5 MB
17.4 MB
17.4 MB
17.5 MB
17.4 MB
17.5 MB
17.4 MB
17.8 MB
17.5 MB
17.5 MB
17.4 MB
17.5 MB
17.5 MB
17.3 MB
Equipment
-
![VACUU·SELECT user management]()
VACUU·SELECT User Management Function extension for VACUU·SELECT controller- Flexible and individual permissions
- Ensure consistent process parameters
- Customized working environment
![Rubber vacuum tubing, DN 8,price per meter]()
DN 8 mm, sale per meter Rubber vacuum tubing- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
![In-line isolation valve VV-B 6C,VACUU·BUS, PVDF/fluoroplastics,electromagnetic, with KF DN 16 andhose nozzle, certification (NRTL): C/US]()
VV-B 6C Solenoid-operated valves- High operating cycles
- Long term tightness
- Leak rate 1 x 10-2 mbar l/s

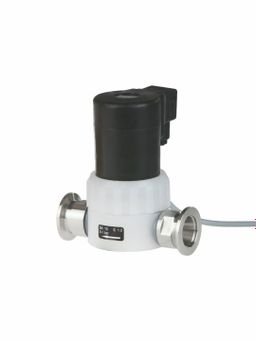

![In-line isolation valve electromagneticVV-B 15C, VACUU·BUS, PVDF/PTFE, DN 25certification (NRTL): C/US]()
