VV-B 15CSolenoid-operated valves

Overview

  • high operating cycles
  • significantly better long term tightness even after long operating time
  • easy to clean
  • versatile connection alternatives via small flange or hose nozzle
  • low leakage rate
Articleno. 20674215
On demand
VV-B 15C Solenoid-operated valves

By submitting the contact form, you agree that your data will be used to process your request. If your inquiry comes from a country in which we do not have our own sales department, you also consent to your data being forwarded to the responsible local trading partner. You can find an overview of the trading partners on our contact page. Further information on data processing, including possible third country transfers, can be found in our data protection information.

Anti-Robot Verification
FriendlyCaptcha ⇗

Inquire
Add to Wish List
Add to Compare list
main product photo

Solenoid-operated valves in action

In-line isolation valve electromagnetic VV-B 15C, VACUU·BUS, PVDF/PTFE, DN 25 certification (NRTL): C/US

These straight-through valves with electromagnetic (solenoid) drive are used for operating cycles with short intervals and, therefore, are often used as vacuum control valves. The straightforward design provides a valve with low leakage rate. The valves in version VV C are made of materials with excellent chemical resistance. The valve sealing of the VV-B 6C is made of a special fluoroelastomer with better form stability than common PTFE, much higher chemical resistance than FKM and excellent long-term leak tightness characteristics. In-line valve VV-B 15C, VACUU·BUS PVDF/PTFE, electromagnetic, DN 25, certification (NRTL): C/US

Technical data and graphs

Upper ambient temperature (operation) 40 °C
Lower ambient temperature (operation) 0 °C
Max. gas temperature 100 °C
Flange connection small flange KF DN 25
Operation VACUU·BUS®
Leakage rate 1 x 10-4 mbar l/s
Leakage rate of seat 1 x 10-2
Max. switching frequency 50 pro Min.
Fitting length between flanges 117 mm

Downloads

In-line isolation valve electromagneticVV-B 15C, VACUU·BUS, PVDF/PTFE, DN 25certification (NRTL): C/US
VV-B 15C
Solenoid-operated valves
Manual accessories
Manual PDF 1.4 MB 1.2 MB
Download Download

This might also interest you

  1. In-line valve VS 25, stainless steel,small flange, KF DN 25
    VS 25 Butterfly valve
    • High conductance
    • Minimal degassing rate
    • Leak rate 1 x 10-6 mbar l/s
  2. Gas inlet valve VGS 10, stainless steel,small flange KF DN 10
    VGS 10 Gas inlet valve
    • Hand operated
    • Fixed, permanent fitting
    • Leak rate 1 x 10-9 min l/s
  3. Diaphragm in-line valve VM 16
    VM 16 Diaphragm valve
    • Chemically resistant
    • Hand-operated
    • Leak rate 1 x 10-4 mbar l/s
  4. Diaphragm in-line valve VM 25
    VM 25 Diaphragm valve
    • Chemically resistant
    • Hand-operated
    • Leak rate 1 x 10-4 mbar l/s
  5. Gas inlet valve VGL, stainless steel,with soldering connections
    VGL Gas inlet valve
    • Hand operated
    • Fixed, permanent fitting
    • Leak rate 1 x 10-9 min l/s
  6. Ball valve VK 16, brass, small flange,KF DN 16
    VK 16 Ball valve
    • For rough and fine vacuum range
    • Leak rate 1 x 10-6 min l/s
  7. Coolant valve VKW-B, VACUU·BUS,DN 1,5 mm, inlet G3/4" / G1/2",outlet nozzle 6 mm, cable length 2 mcertification (NRTL): C/US
    VKW-B Cooling water valve
    • Mains plug VACUU·BUS®
    • Nominal width 1.5 mm

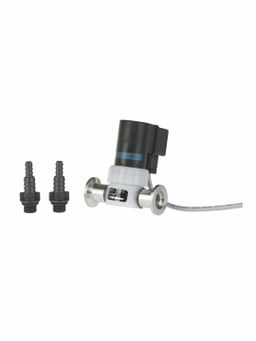

  8. In-line isolation valve VV-B 6C,VACUU·BUS, PVDF/fluoroplastics,electromagnetic, with KF DN 16 andhose nozzle, certification (NRTL): C/US
