VV-B 6CSolenoid-operated valves
Overview
- version C with excellent chemical resistance
- high operating cycles
- significantly better long term tightness even after long operating time
- easy to clean
- versatile connection alternatives via small flange or hose nozzle
Articleno.
20674291
Solenoid-operated valves in action
In-line isolation valve VV-B 6C, VACUU·BUS, PVDF/fluoroplastics, electromagnetic, with KF DN 16 and hose nozzle, certification (NRTL): C/US
These straight-through valves with electromagnetic (solenoid) drive are used for operating cycles with short intervals and, therefore, are often used as vacuum control valves. The straightforward design provides a valve with low leakage rate. The valves in version VV C are made of materials with excellent chemical resistance. The valve sealing of the VV-B 6C is made of a special fluoroelastomer with better form stability than common PTFE, much higher chemical resistance than FKM and excellent long-term leak tightness characteristics.Technical data and graphs
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (operation) | 0 °C | |
| Max. gas temperature | 100 °C | |
| Flange connection | Small flange KF DN 16 or hose nozzle DN 6/10 mm | |
| Operation | VACUU·BUS® | |
| Leakage rate | 1 x 10-2 mbar l/s | |
| Max. switching frequency | 50 pro Min. | |
| Fitting length between flanges | 80 mm |
Downloads
In-line isolation valve VV-B 6C,VACUU·BUS, PVDF/fluoroplastics,electromagnetic, with KF DN 16 andhose nozzle, certification (NRTL): C/US
In-line isolation valve VV-B 6C,VACUU·BUS, PVDF/fluoroplastics,electromagnetic, with KF DN 16 andhose nozzle, certification (NRTL): C/US
Brochure
PDF
1.4 MB
This might also interest you
-

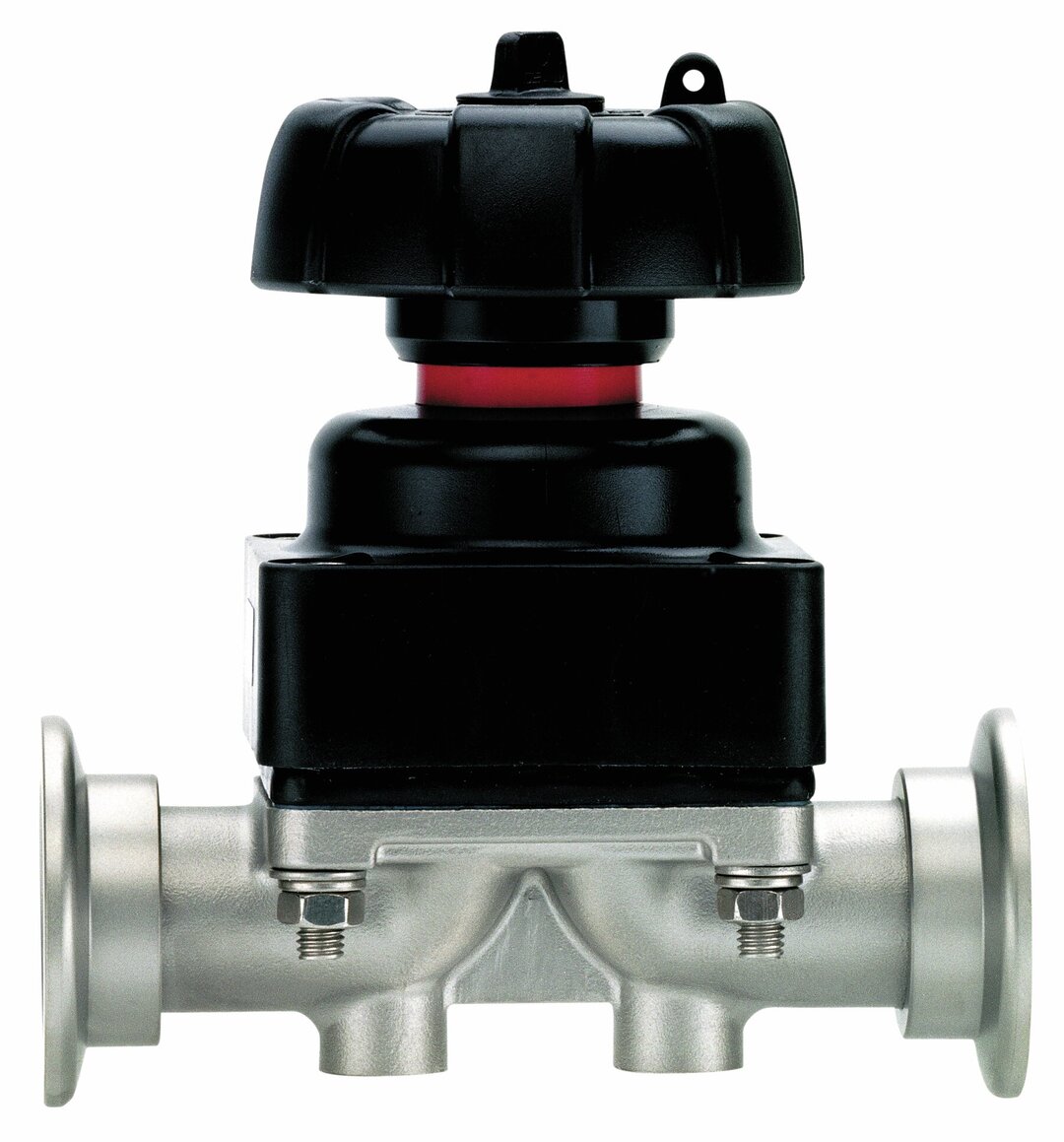

![Diaphragm in-line valve VM 25]()
VM 25 Diaphragm valve- Chemically resistant
- Hand-operated
- Leak rate 1 x 10-4 mbar l/s

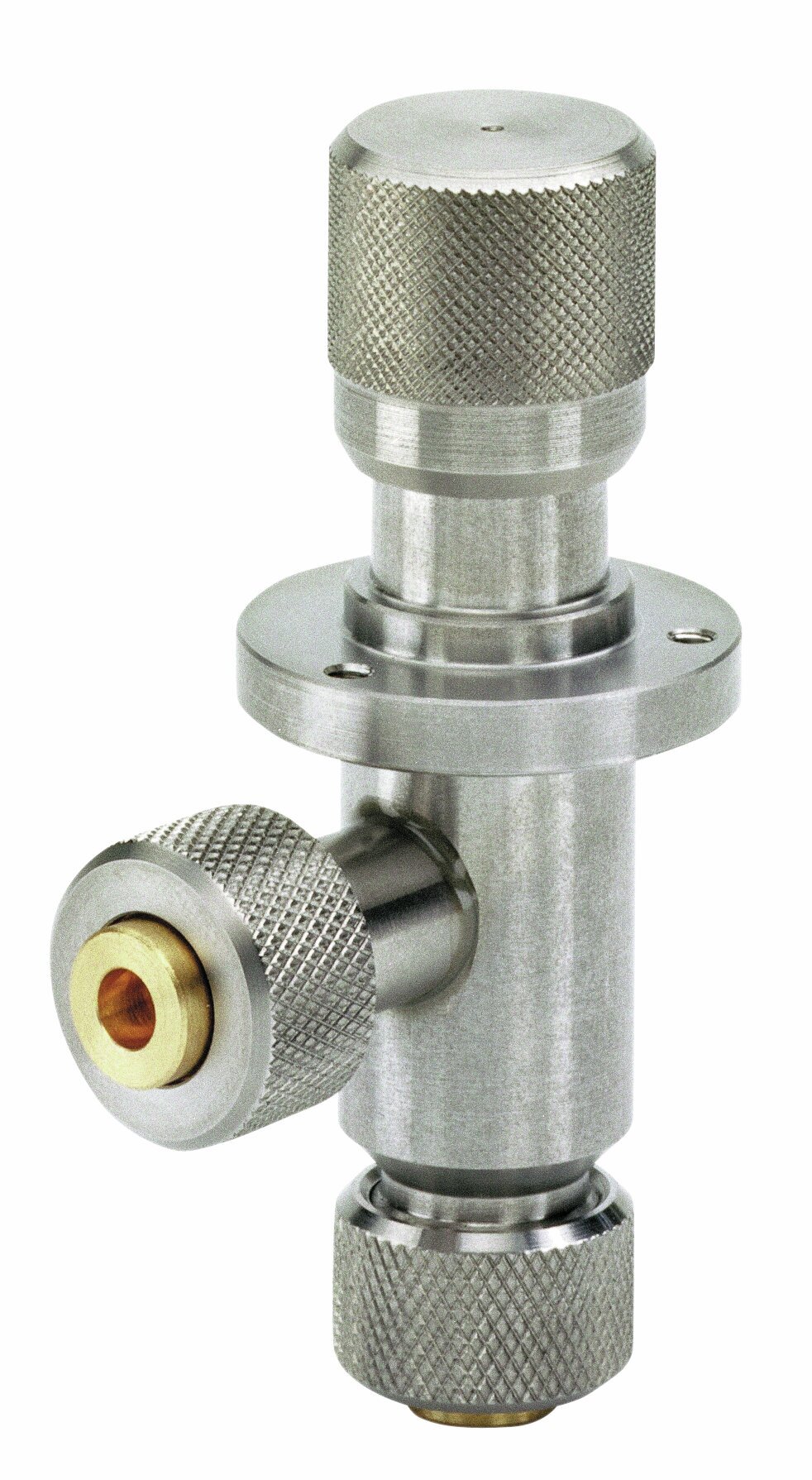

![Gas inlet valve VGL, stainless steel,with soldering connections]()
VGL Gas inlet valve- Hand operated
- Fixed, permanent fitting
- Leak rate 1 x 10-9 min l/s

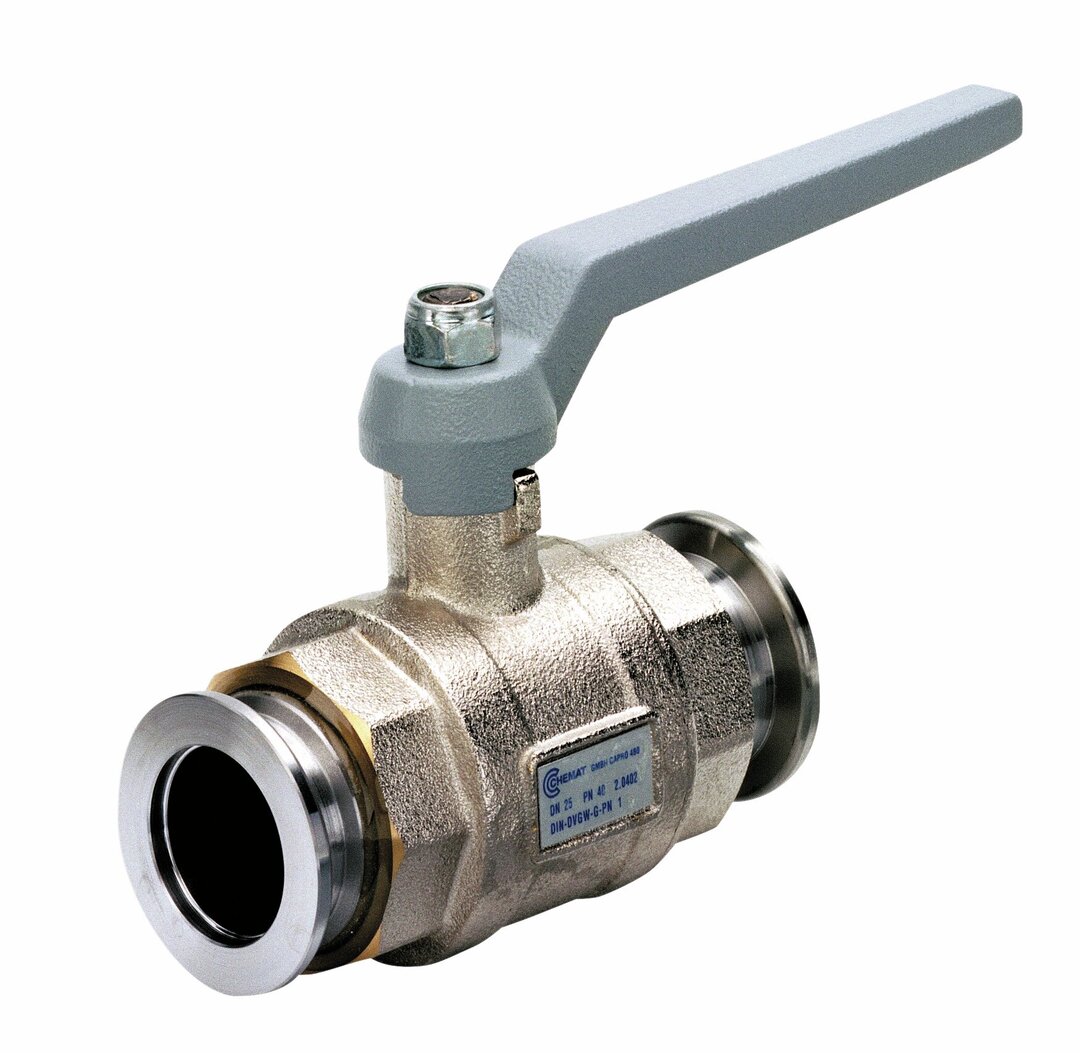

![Ball valve VK 16, brass, small flange,KF DN 16]()
VK 16 Ball valve- For rough and fine vacuum range
- Leak rate 1 x 10-6 min l/s
![Coolant valve VKW-B, VACUU·BUS,DN 1,5 mm, inlet G3/4" / G1/2",outlet nozzle 6 mm, cable length 2 mcertification (NRTL): C/US]()
VKW-B Cooling water valve- Mains plug VACUU·BUS®
- Nominal width 1.5 mm

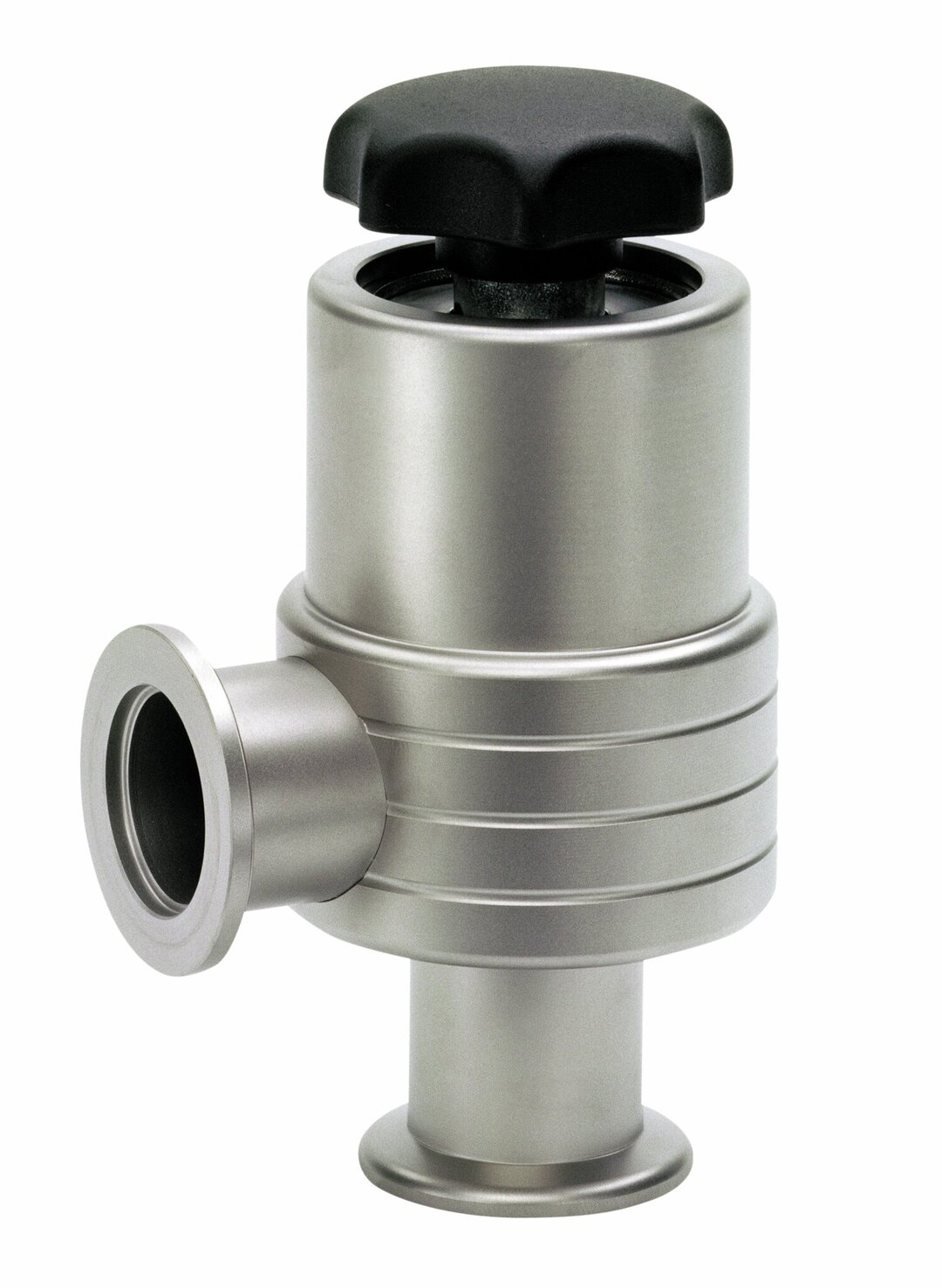

![Bellow sealed angle valve VE,stainless steel, KF DN 16]()
VE 16 WIG High vacuum bellow valve- Excellent gas tightness
- Minimum degassing
- Leak rate 1 x 10-9 mbar l/s

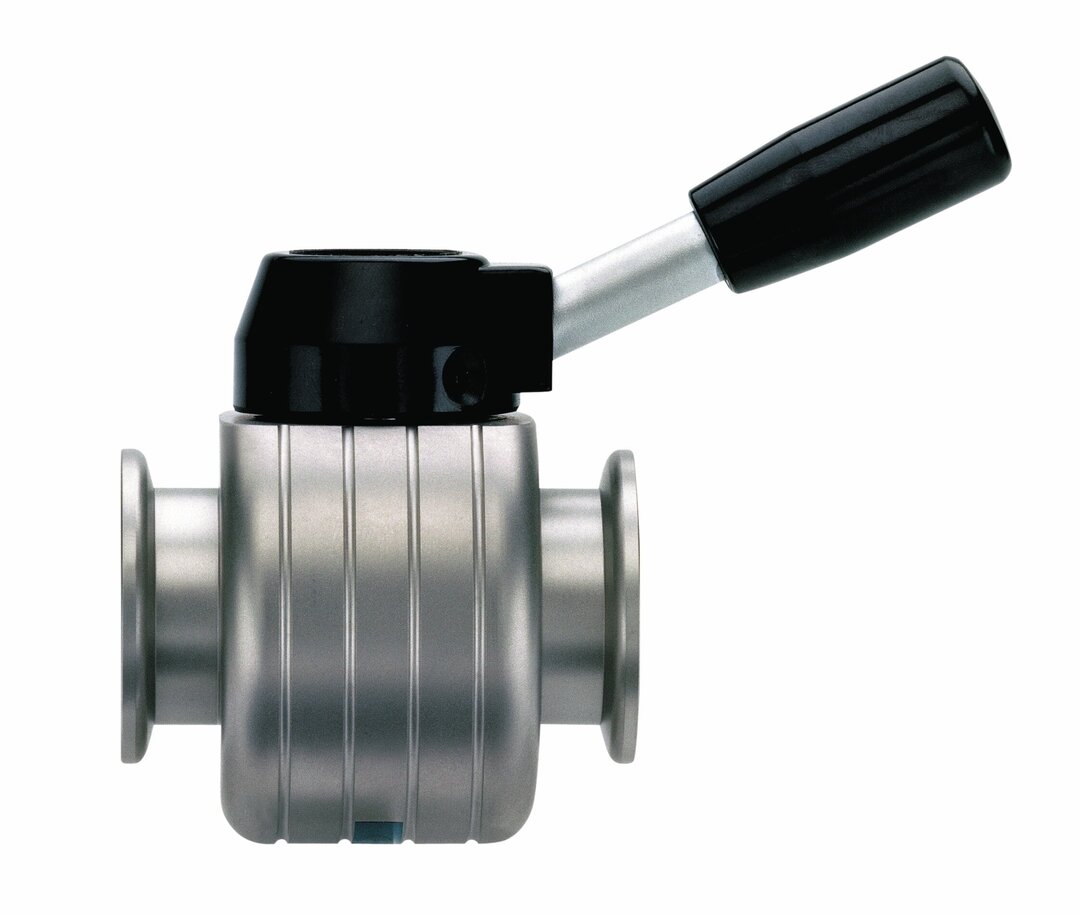

![In-line valve VS 25, stainless steel,small flange, KF DN 25]()
