BVC basic GFluid aspiration system
Overview
- mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimize the vapor load on the vacuum network
- stable base and electricity-free operation for convenience
- autoclavable collection bottle designed to reduce aerosol and foam formation; autoclavable quick-couplings available as accessory
- aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
- hydrophobic 0.2 µm sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle
Fluid aspiration system in action
The BioChem-VacuuCenter BVC basic is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network (e.g., VACUU·LAN®) and does not require electric power. The chemical-resistant mechanical vacuum controller always ensures an optimal operating vacuum. The controller opens only when needed thus limiting the gas load on the vacuum source. The evaporation of collected liquid is minimized. The inlet tubing integrated in the bottle head reduces aerosol and foam formation and ensures a long service life of the hydrophobic protection filter. The aspiration system is available either as BVC basic with 4l PP bottle or as BVC basic G with 2l coated borosilicate glass bottle.
Technical data and graphs
| Vacuum controller | Mechanical vacuum controller | |
| Control range | 100 - 500 mbar | |
| Collection bottle | 2l Glass | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | Suction controller | |
| Outlet connection | Hose nozzle DN 6-10 mm | |
| Protection class IEC 60529 | IP 54 | |
| Weight | 3.2 kg | |
| NRTL certification | No | |
| Items supplied | Complete fluid aspiration system for existing vacuum source, with automatic vacuum controll, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHC, collection bottle 2l made of glass, protection filter and manual. |
Equipment
-

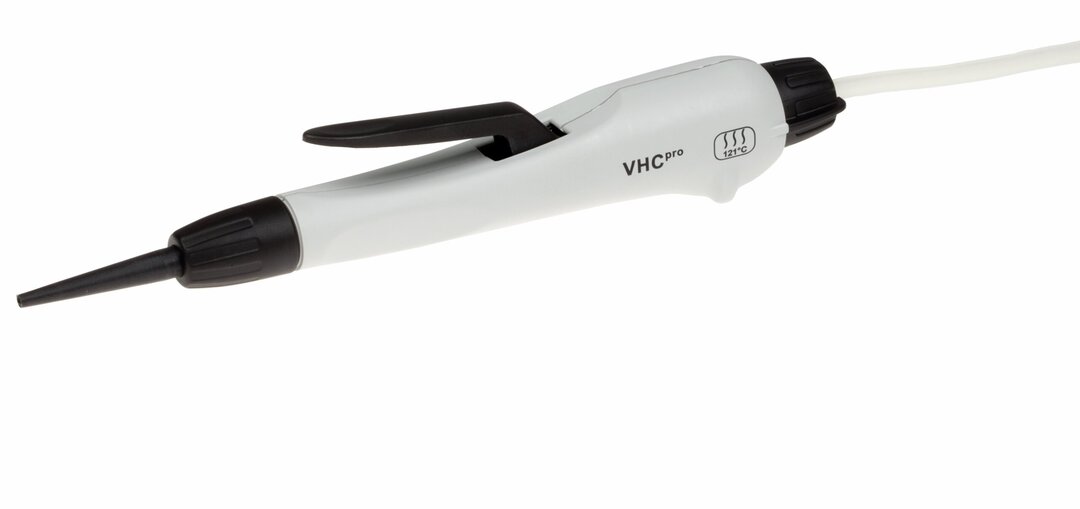

![VacuuHandControl VHCpro]()
VHCpro VacuuHandControl- Ergonomic aspiration hand set
- Autoclavable at 121 °C and 2 bars

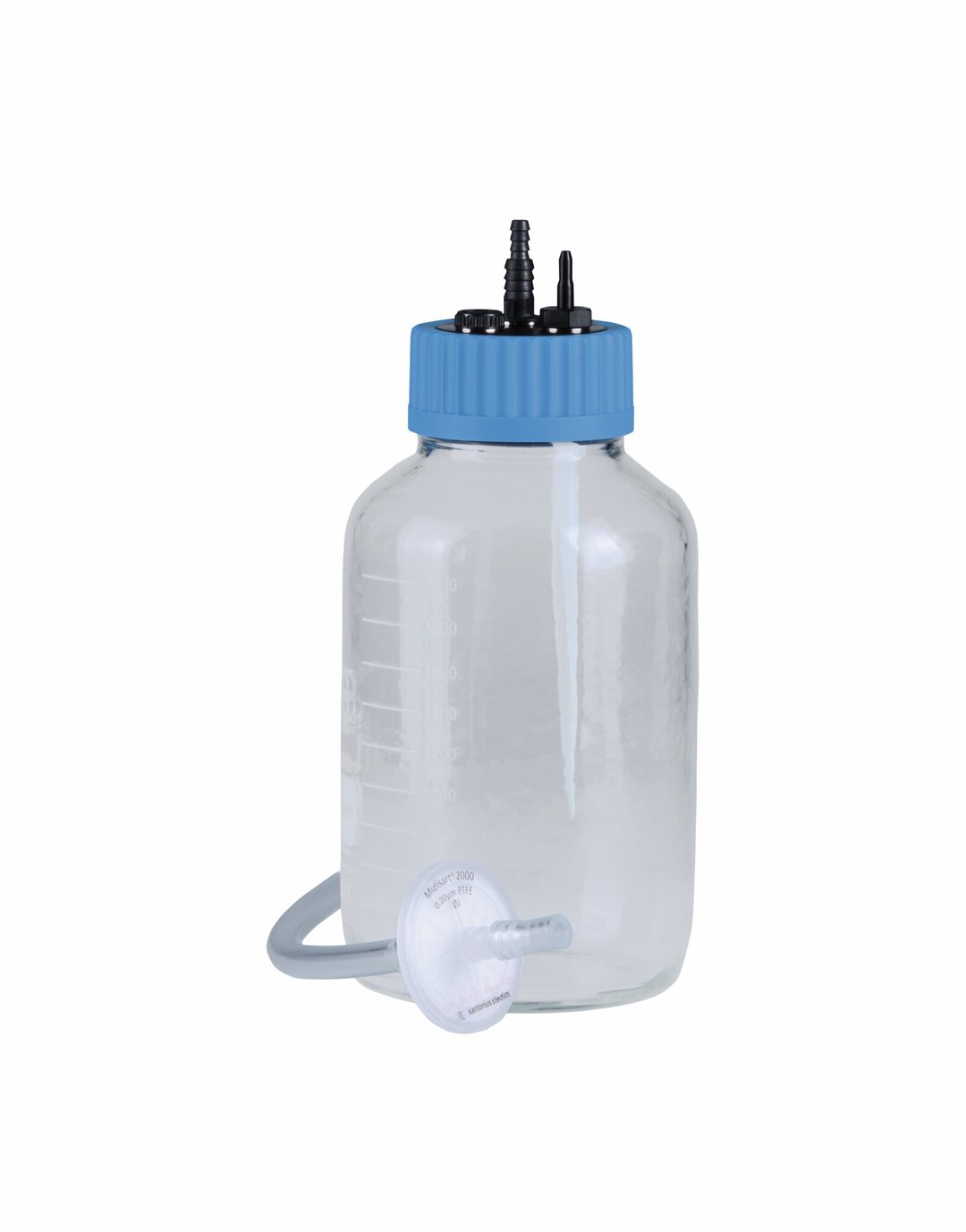

![Collection bottle 2L glass, coated,with protection filter and inlet tube]()
BVC BVC 2l bottle glass- Very high chemical resistance
- Minimized foam and aerosol formation
- Filter element 0.2 µm

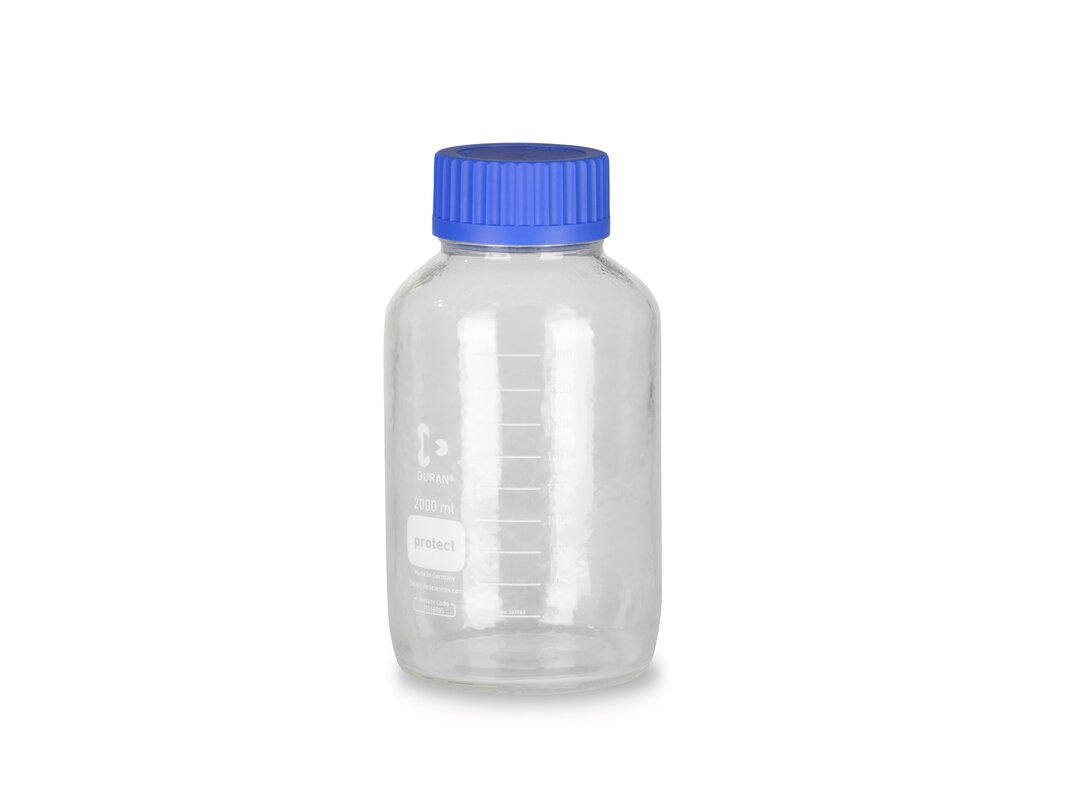

![Bottle 2L glass, with capunmachined (w/o filter,connection for hose, blind plug)]()
BVC Bottle 2L glass, with cap unmachined (w/o filter, connection for hose, blind plug)![Stand for VacuuHandControl VHCpro]()
VHCpro Table stand for VHCpro- Suitable for VHC pro
- Material stainless steel
- Autoclavable

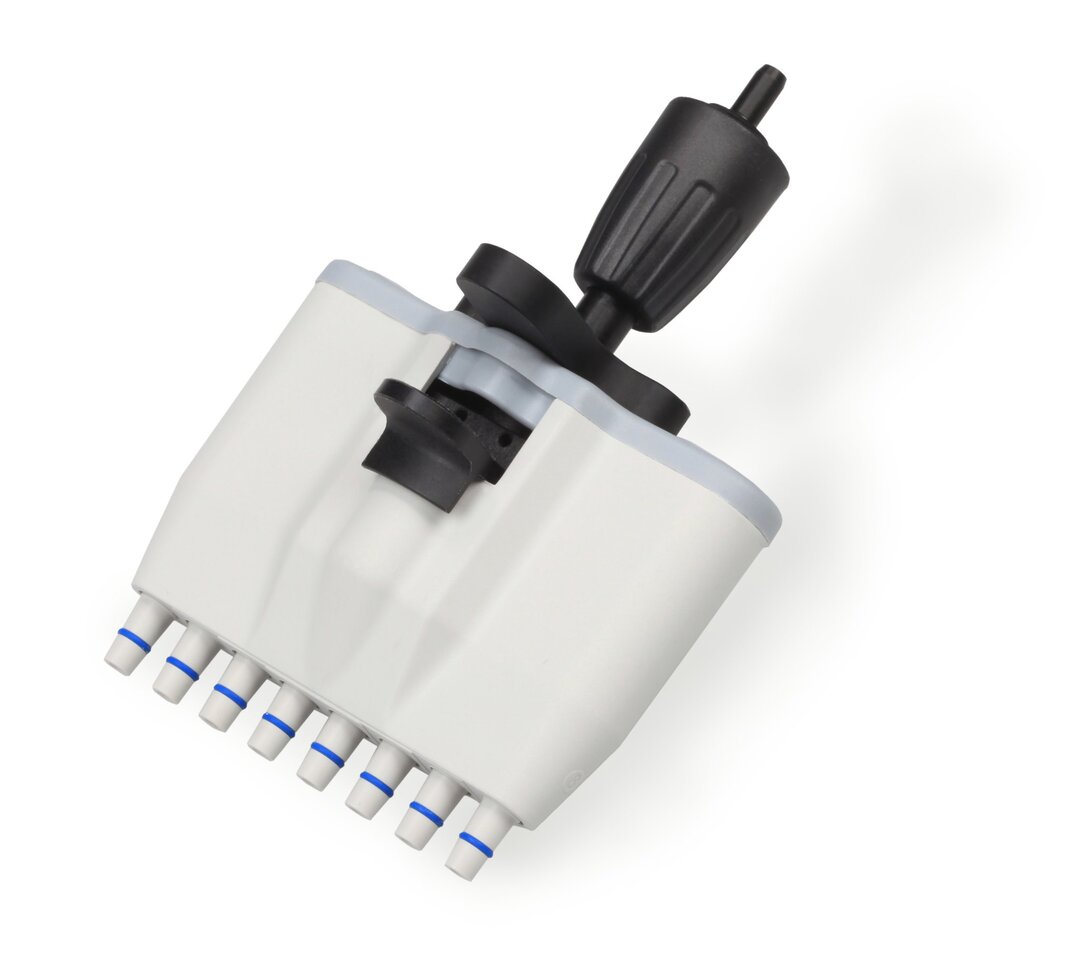

![8-channel tip adapter with ejector,for VacuuHandControl VHCpro]()
BVC 8-channel tip adapter with ejector, for VacuuHandControl VHCpro- Suction power is evenly spread across all pipette tips
- Completely autoclavable
- Stand and disinfectant reservoir inclusive

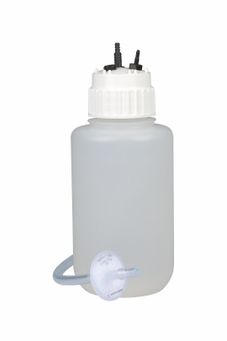

![Collection bottle 4L, made of PP,for BVC control / basic, withprotection filter and inlet tube]()
BVC BVC 4l bottle PP- High chemical resistance
- Minimized foam and aerosol formation
- Filter element 0.2 µm
![Bottle 4L PP with cap, unmachined (w/ofilter, connection for hose, blind plug)]()
This might also interest you
-

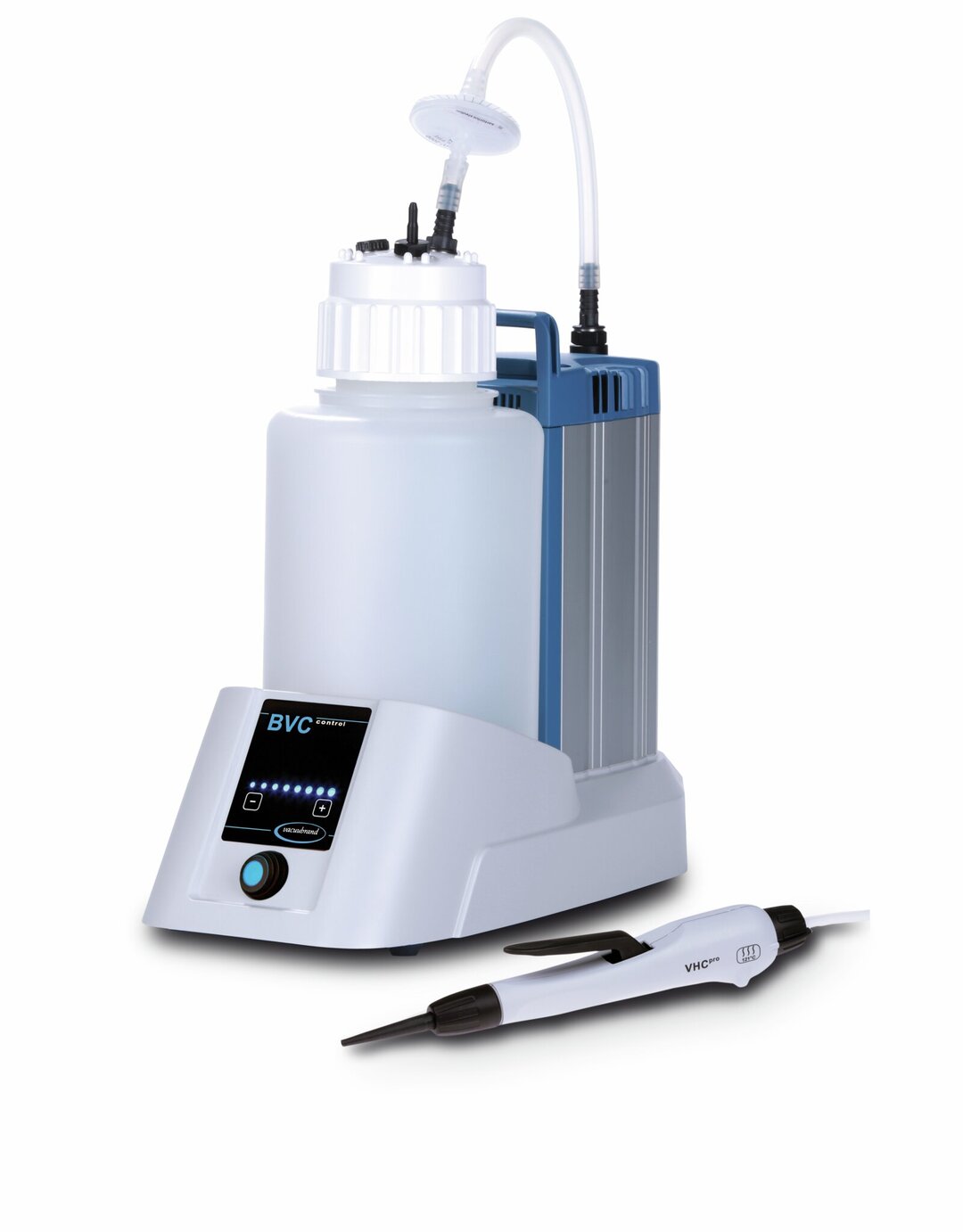

![BVC control Fluid aspiration system]()
BVC control Fluid aspiration system- Powerful chemistry diaphragm pump
- Collection bottle 4l Polypropylene
- Electronically adjustable suction power

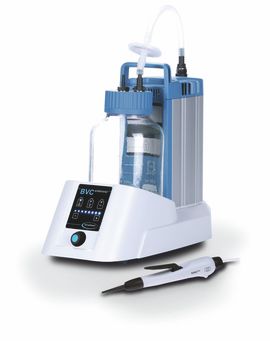

![BVC professional G Fluid aspiration system]()
BVC professional G Fluid aspiration system- Powerful chemistry diaphragm pump
- Collection bottle 2l Glass
- Self-closing quick couplings

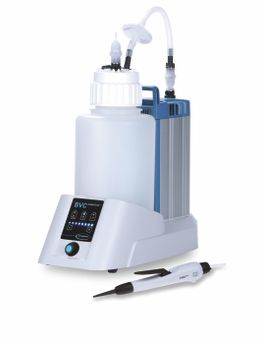

![BVC professional Fluid aspiration system]()
BVC professional Fluid aspiration system- Powerful chemistry diaphragm pump
- Collection bottle 4l Polypropylene
- Self-closing quick couplings

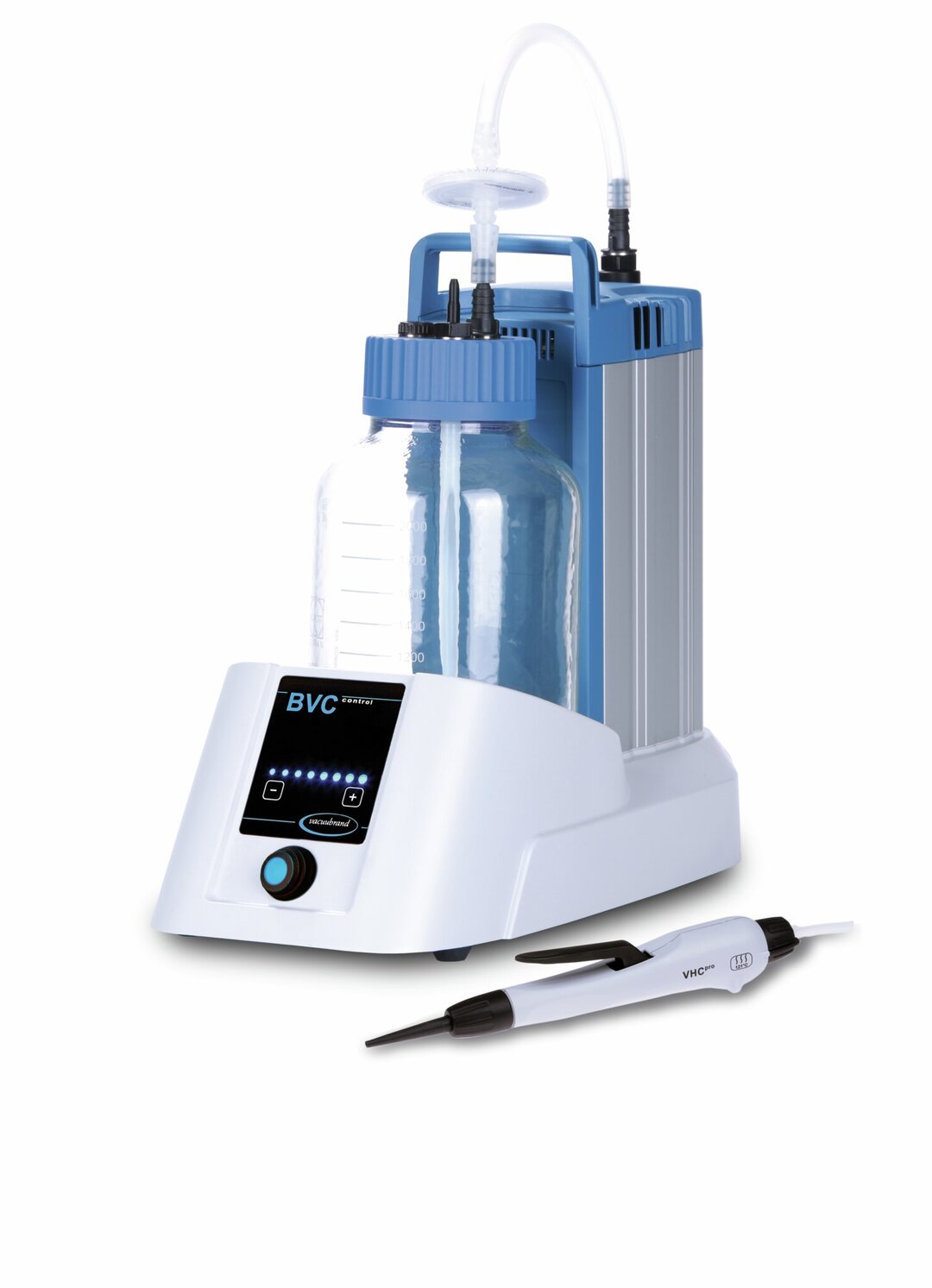

![BVC control G Fluid aspiration system]()
