ME 16 NT VARIO selectVARIO® diaphragm pump
Overview
- contamination-free pumping and evacuation
- high flow rate even near ultimate vacuum
- whisper quiet
- very low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Ultimate vacuum
70 mbar
Max. pumping speed 50 Hz
19 m3/h
VARIO® diaphragm pump in action
These oil-free diaphragm pumps are especially powerful pumps for evacuation and pumping of non aggressive gases. The one-stage design provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All parts in contact with pumped media are made of aluminum and selected plastics allowing a wide range of applications for non-corrosive gases. It provides precise vacuum control and consists always of the pump and the VACUU·SELECT vacuum controller with external gauge head. The highly flexible, fabric-reinforced double diaphragm made of FKM offers extended operating life that increases significantly in motor speed controlled operation. The eight-cylinder pump ME 16 NT VARIO features exceptionally high pumping speed, low vibration and a very compact design with smooth and easy-to-clean surfaces. Large one-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping of large amounts of gases. Typical applications are vacuum ovens and in general evacuation and pumping of non-corrosive gases. We recommend these pumps especially for processes with high inlet and process pressures. They are also excellent for very fast evacuations down to modest vacuum levels.
Technical data and graphs
| Max. pumping speed 50 Hz | 19 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 11.2 cfm | Select diagram |
| Ultimate vacuum | 70 mbar / 53 torr | |
| Number of heads | 8 | |
| Number of stages | 1 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | small flange KF DN 25 | |
| Outlet connection | G1/2" | |
| Rated motor power | 0.53 kW | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 552 mm | |
| Dimension B in mm | 260 mm | |
| Dimension H in mm | 450 mm | |
| Weight | 31.6 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 54 dBA | |
| NRTL certification | No | |
| Items supplied | Pump completely mounted, ready for use, silencer, with manual. | |
| Rated mains voltage range 1 | 100-120 V | |
| Mains frequency 1 | 50-60 Hz | |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
für Zoom klicken
Max. pumping speed 50 Hz
für Zoom klicken
Max. pumping speed 60 Hz
für Zoom klicken
Pump down graph 50 Hz (100 l volume)
für Zoom klicken
Pump down graph 60 Hz (100 l volume)
Downloads

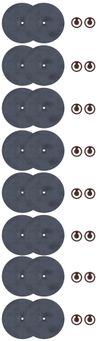

Equipment
This might also interest you
-
![ME 1 Diaphragm pump]()
ME 1 Diaphragm pump- Ultimate vacuum 100 mbar
- Pumping speed 0.7 m3/h
- Oilfree
![ME 2 NT Diaphragm pump]()
ME 2 NT Diaphragm pump- Ultimate vacuum 70 mbar
- Pumping speed 2 m3/h
- Oilfree
![ME 4 NT Diaphragm pump]()
ME 4 NT Diaphragm pump- Ultimate vacuum 70 mbar
- Pumping speed 4 m3/h
- Oilfree
![ME 4R NT Diaphragm pump]()
ME 4R NT Diaphragm pump- Ultimate vacuum 100 mbar
- Pumping speed 3.8 m3/h
- Oilfree

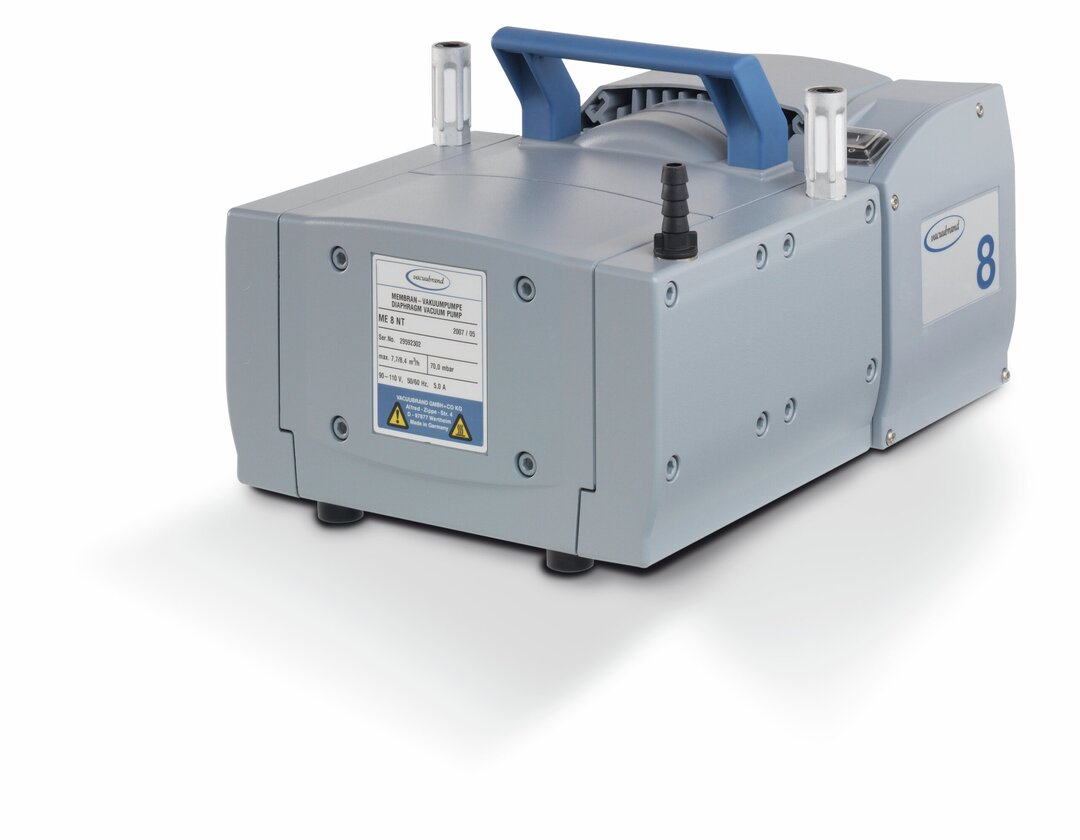

![ME 8 NT Diaphragm pump]()
