MD 4C NTChemistry diaphragm pump
Overview
- outstanding chemical resistance and superior vapor tolerance
- exceptionally high performance even at low vacuum
- excellent ultimate vacuum even with gas ballast
- whisper quiet and very low vibration
- long diaphragm life, maintenance-free drive system
Ultimate vacuum
1.5 mbar
Ultimate vacuum with gas ballast
3 mbar
Max. pumping speed 50 Hz
3.4 m3/h
Chemistry diaphragm pump in action
Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance. Three-stage chemistry-design diaphragm pumps are an excellent choice for applications with corrosive gases and vapors with high vacuum requirements. Typical applications are parallel and rotary evaporators, concentrators, drying ovens and many other laboratory applications. The MD 4C NT has an outstanding performance for pumping large amounts of vapor, e.g., out of drying ovens and gel dryers. This powerful pump is at the heart of a complete family of well-proven and reliable vacuum systems and pumping units for larger lab applications.
Technical data and graphs
| Max. pumping speed 50 Hz | 3.4 m3/h | |
| Max. pumping speed 60 Hz | 2.2 cfm | |
| Ultimate vacuum | 1.5 mbar / 1.1 torr | |
| Ultimate vacuum with gas ballast | 3 mbar / 2.2 torr | |
| Number of heads | 4 | |
| Number of stages | 3 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.25 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 328 mm | |
| Dimension B in mm | 243 mm | |
| Dimension H in mm | 198 mm | |
| Weight | 14.3 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
für Zoom klicken
Pump down graph 50 Hz (10 l volume)
für Zoom klicken
Pump down graph 60 Hz (10 l volume)
Equipment
-
DN 8 mm, sale per meter Rubber vacuum tubing- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
-

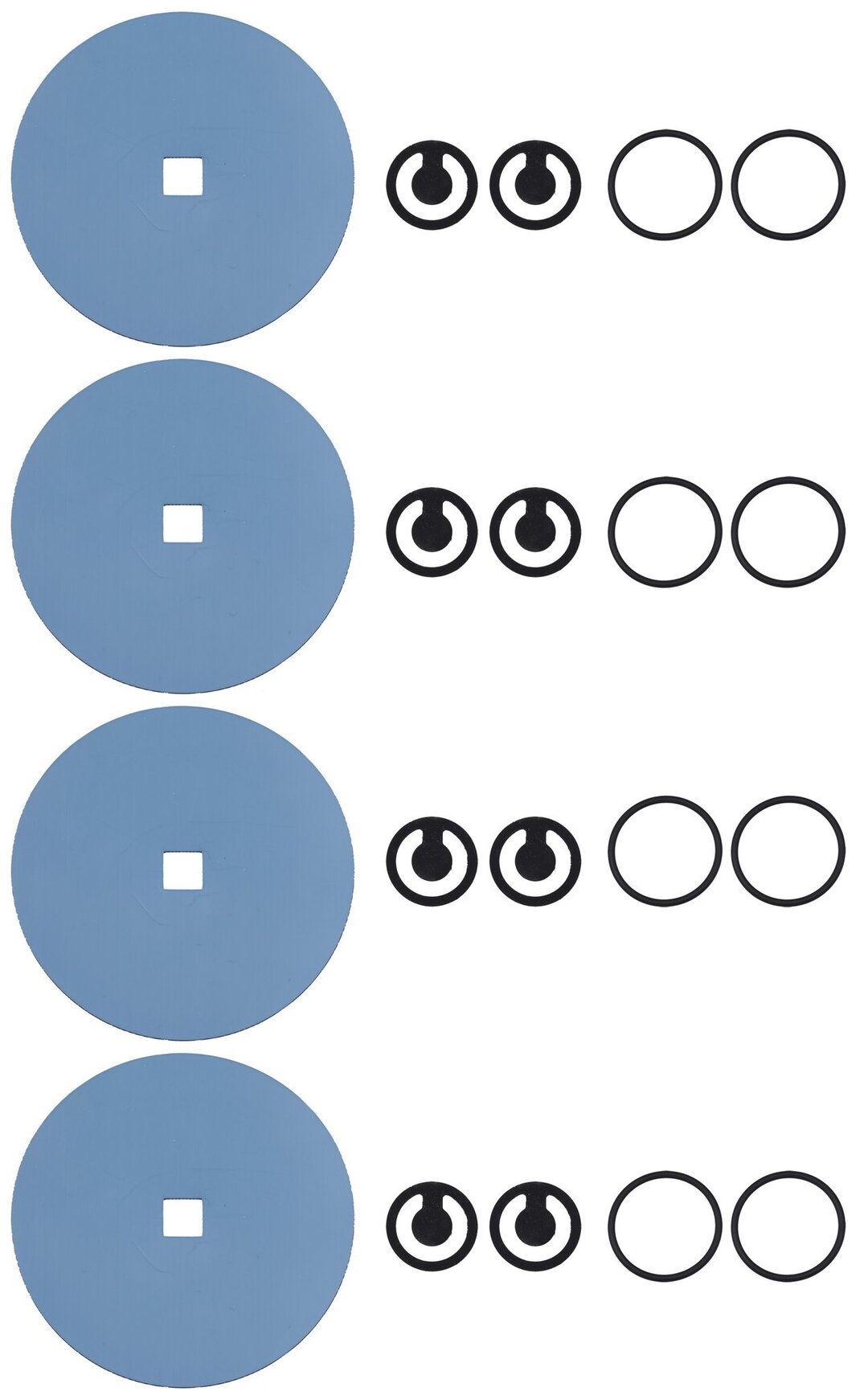

MD 4C NT/VARIO / PC 3003 / PC 3004 Set of diaphragms and valves- Complete kit
- Original spare parts
- Easy assembly
-
DN 8 mm, sale per meter Rubber vacuum tubing
- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
-
MD 4C NT/VARIO / PC 3003 / PC 3004 Set of diaphragms and valves
- Complete kit
- Original spare parts
- Easy assembly
-
DN 8 mm, sale per meter Rubber vacuum tubing
- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
-
MD 4C NT/VARIO / PC 3003 / PC 3004 Set of diaphragms and valves
- Complete kit
- Original spare parts
- Easy assembly
This might also interest you
-

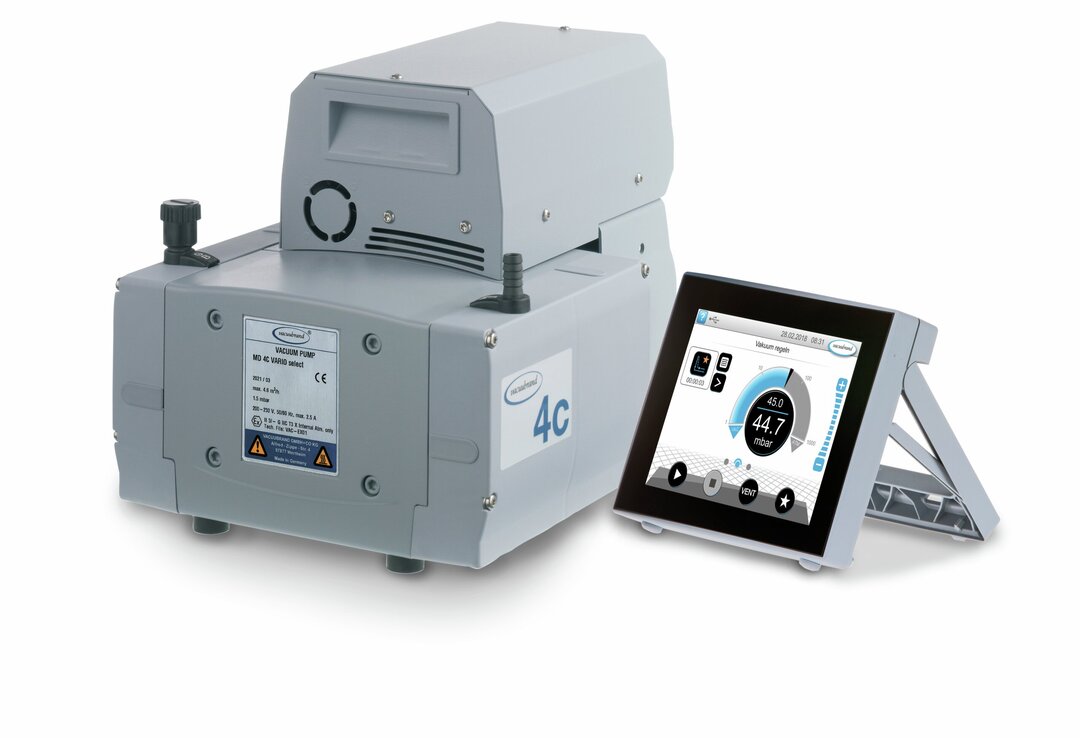

MD 4C VARIO select VARIO® chemistry diaphragm pump- Ultimate vacuum 1.5 mbar
- Pumping speed 4.6 m3/h
- Oilfree & chemically resistant
-

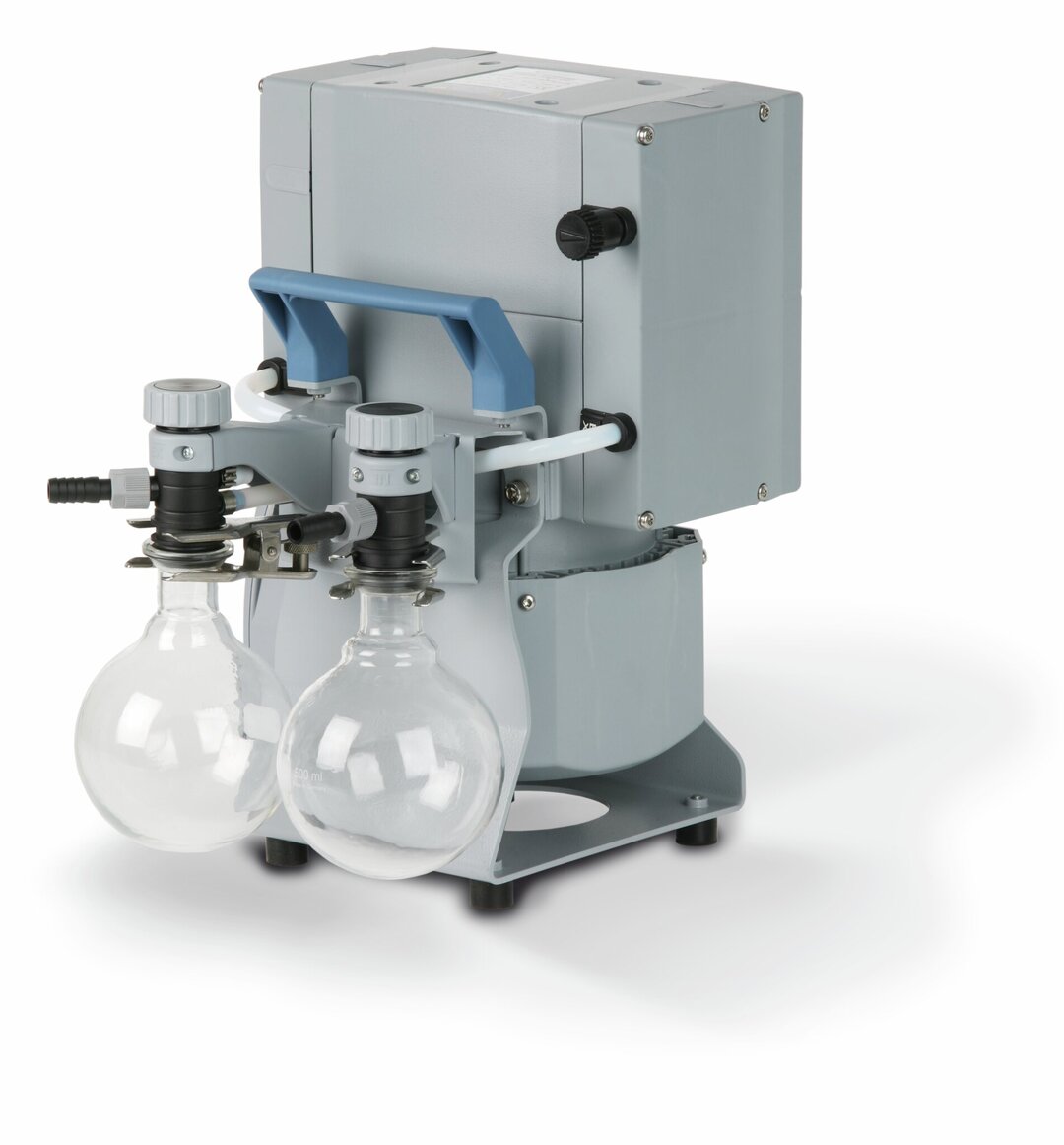

MD 4C NT +2AK Chemistry vacuum system- Ultimate vacuum 1.5 mbar
- Pumping speed 3.4 m3/h
- Oilfree & chemically resistant
-

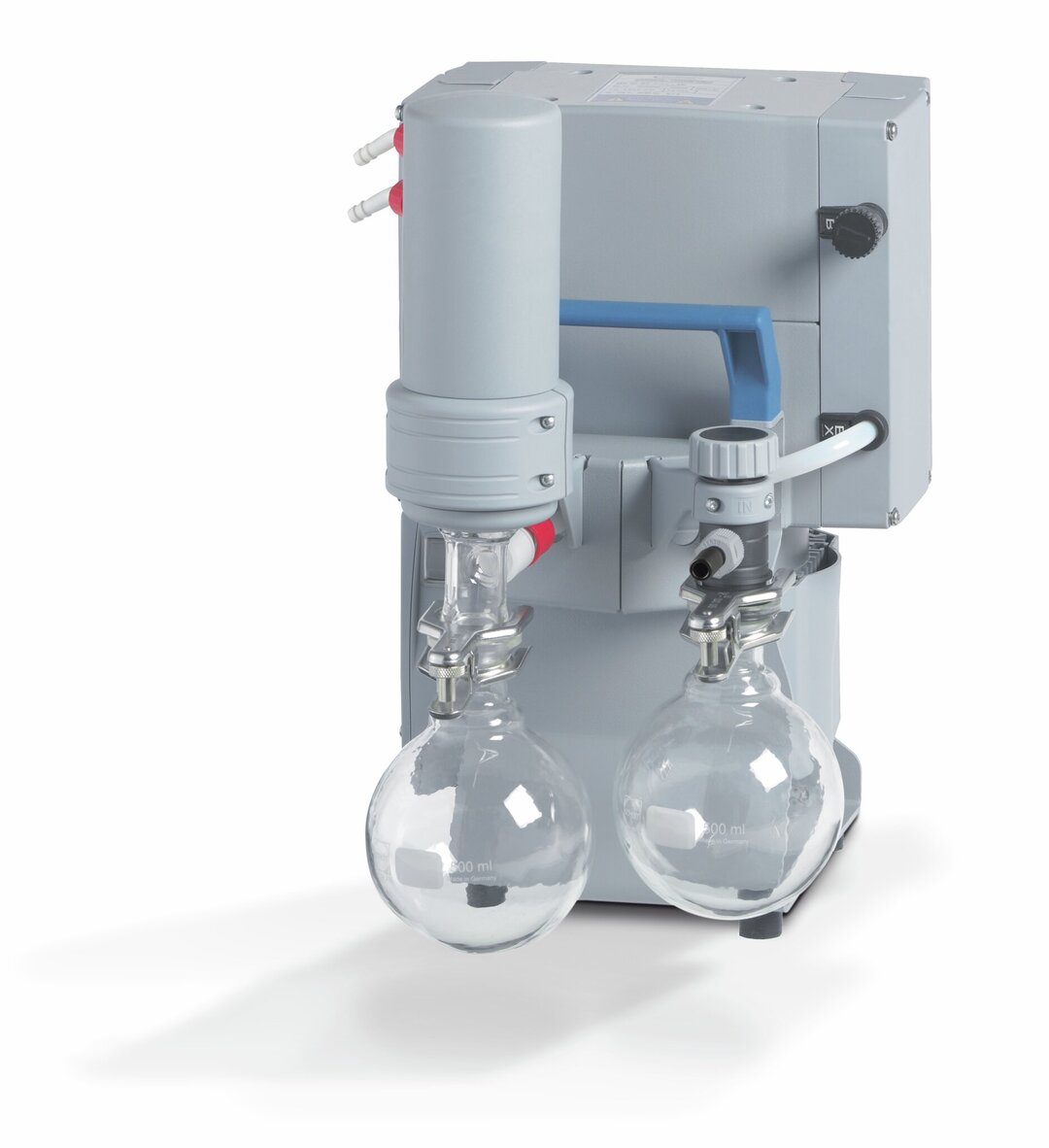

MD 4C NT +AK+EK Chemistry vacuum system- Ultimate vacuum 1.5 mbar
- Pumping speed 3.4 m3/h
- Oilfree & chemically resistant
-

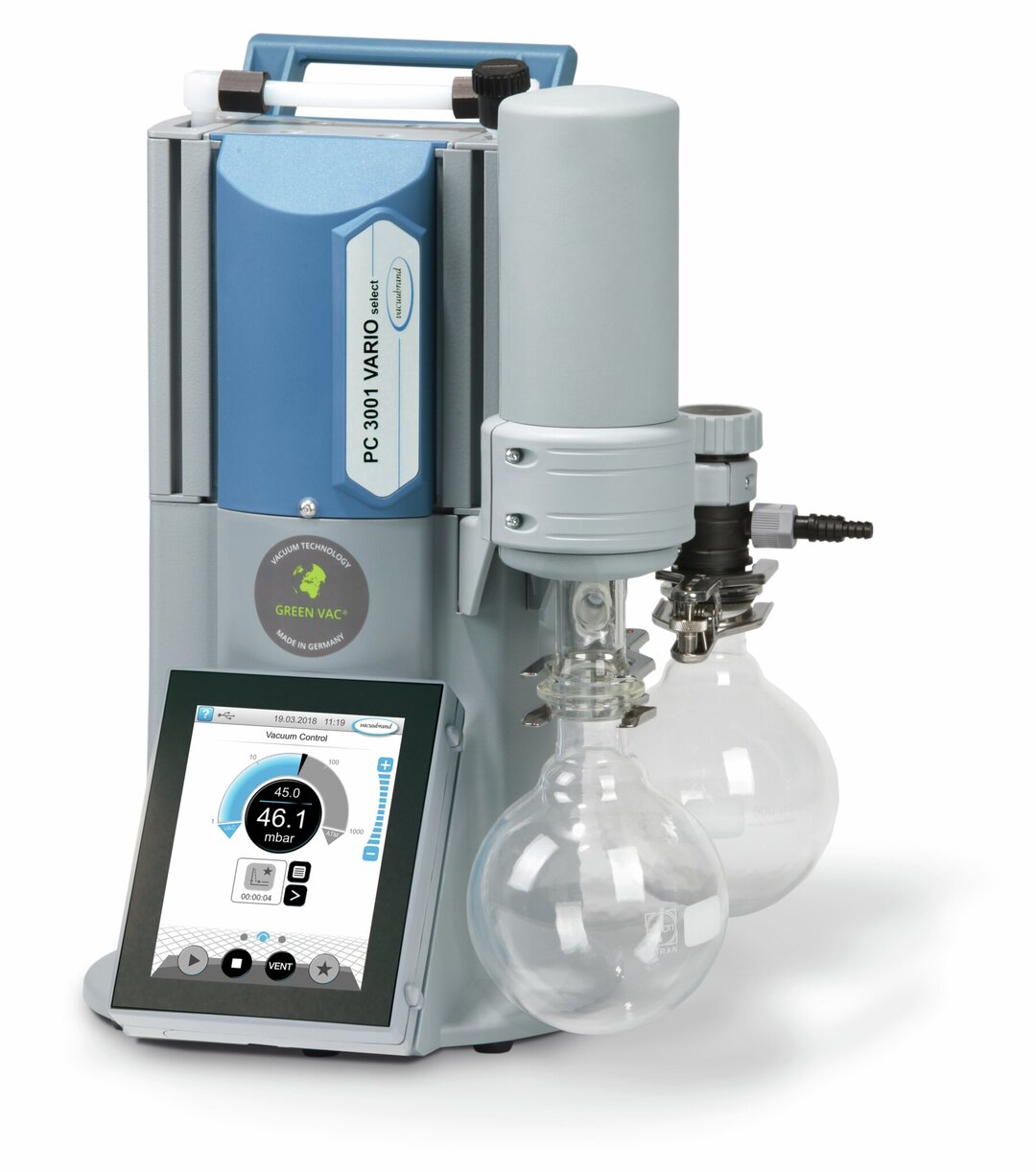

PC 3001 VARIO select VARIO® chemistry pumping unit- Ultimate vacuum 2.0 mbar
- Pumping speed 2 m3/h
- Oilfree & chemically resistant
-

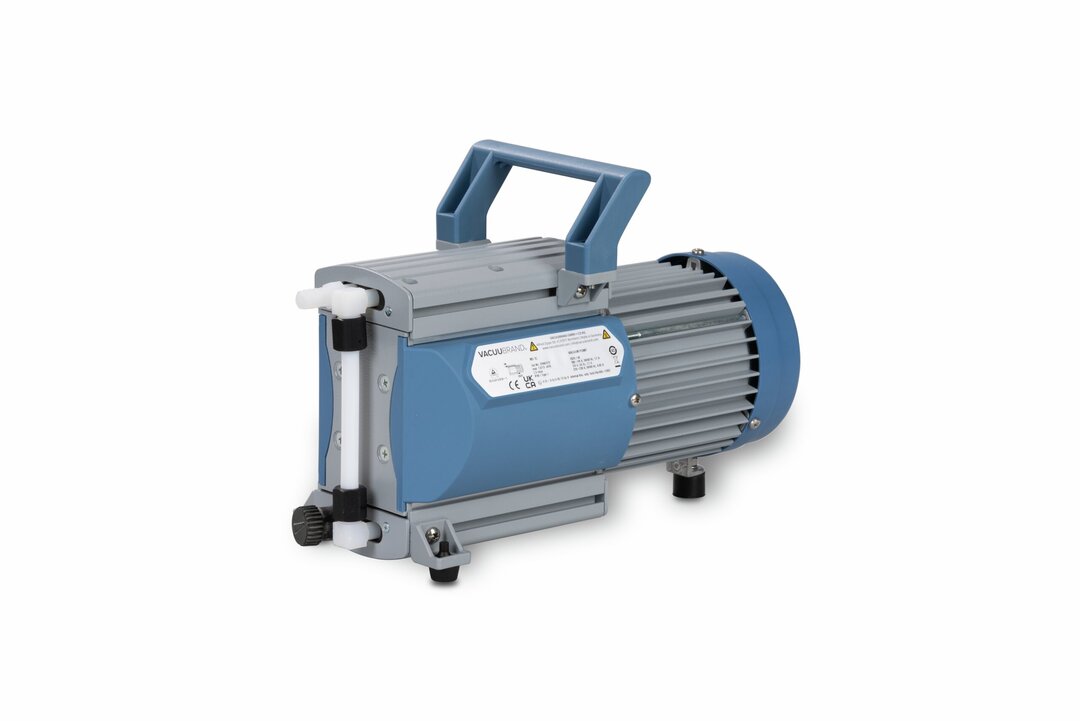

MD 1C Chemistry diaphragm pump- Ultimate vacuum 2 mbar
