PC 3002 VARIO select EK PeltronicVARIO® chemistry pumping unit
Overview
- VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
- automatic boiling point detection and adjustment of the vacuum for short process times
- compact and efficient, good ultimate vacuum even with open gas ballast valve
- very quiet, low-vibration operation and extra long service intervals
- excellent environmental friendliness due to efficient solvent recovery without external coolant
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
Max. pumping speed 50 Hz
2.8 m3/h
VARIO® chemistry pumping unit in action
VARIO® pumps and pumping units provide precise vacuum control by adaptation of the diaphragm pump´s motor speed. They feature fully automatic evaporation control on the push of a button. The basic pump is the MZ 2C NT VARIO two-stage chemistry diaphragm pump which meets medium vacuum requirements for most solvents. The pumping unit PC 3002 VARIO is a well proven choice for evaporation of large amounts of solvents. The separator at the inlet collects particles and liquid droplets. The waste vapor condenser Peltronic® at the outlet enables near-100-percent solvent recovery, efficient recycling and active environmental protection without external coolant. The on-demand motor speed control results in unsurpassed lifetimes of service parts, such as diaphragms. Typical applications are all evaporation processes. Evaporation processes can be run fully automatically and with short process times and high sensitivity at the same time. The VARIO® control ensures high process reliability through prevention of superheating or foaming. The control allows for automatic vacuum level adaptation and is self-adapting to changing process parameters at any time. The VACUU·BUS® interface facilitates an user-friendly configuration of even complex vacuum installations.
Technical data and graphs
| Max. pumping speed 50 Hz | 2.8 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.65 cfm | |
| Ultimate vacuum | 7 mbar / 5 torr | |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr | |
| Number of heads | 2 | |
| Number of stages | 2 | |
| Vacuum controller | VACUU·SELECT | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.53 kW | |
| Protection class IEC 60529 | IP 20 | |
| Dimension L in mm | 402 mm | |
| Dimension B in mm | 361 mm | |
| Dimension H in mm | 457 mm | |
| Weight | 22 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 43 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | No | |
| Items supplied | Pumping unit with Peltronic emission condenser, with manual. | |
| Rated mains voltage range 1 | 200-230 V | |
| Mains frequency 1 | 50-60 Hz | |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
Downloads
Equipment
-
![VACUU·SELECT user management]()
VACUU·SELECT User Management Function extension for VACUU·SELECT controller- Flexible and individual permissions
- Ensure consistent process parameters
- Customized working environment
![Rubber vacuum tubing, DN 8,price per meter]()
DN 8 mm, sale per meter Rubber vacuum tubing- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
![VACUU·LAN® adjustable elbow fittingfor PTFE-hose DN 10/8mm]()
Adjustable elbow fitting VACUU·LAN® module- Individual configuration
- Vacuum on demand
- High flexibility
![Fluid level sensorfor round bottom flask 500 mlcertification (NRTL): C/US]()
This might also interest you
-
![MZ 2C NT Chemistry diaphragm pump]()
MZ 2C NT Chemistry diaphragm pump- Ultimate vacuum 7 mbar
- Pumping speed 2 m3/h
- Oilfree & chemically resistant
![MZ 2C NT +2AK Chemistry vacuum system]()
MZ 2C NT +2AK Chemistry vacuum system- Ultimate vacuum 7 mbar
- Pumping speed 2 m3/h
- Oilfree & chemically resistant
![MZ 2C NT +AK+EK Chemistry vacuum system]()
MZ 2C NT +AK+EK Chemistry vacuum system- Ultimate vacuum 7 mbar
- Pumping speed 2 m3/h
- Oilfree & chemically resistant

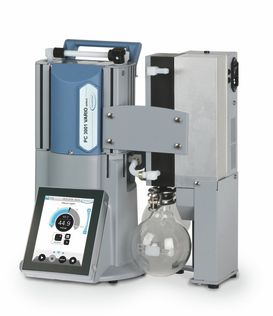

![VARIO chemistry pumping unit,PC 3001 VARIO select EKP,with exhaust vapor condenser Peltronic,100-120V / 200-230V / 50-60Hz, without mains cable]()
