Product description

PC 3001 VARIO select IK

VARIO® chemistry pumping unit

The PC 3001 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process control. The VARIO motor speed control also makes the pump whisper quiet and provides for exceptionally long maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. For exceptionally large amounts of vapor - like from parallel evaporators or drying ovens without condenser - the PC 3001 VARIO select IK with its condenser on the vacuum side is an excellent choice.

Information on data generation of connected devices »

Information on the disposal of old devices »

Technical Data

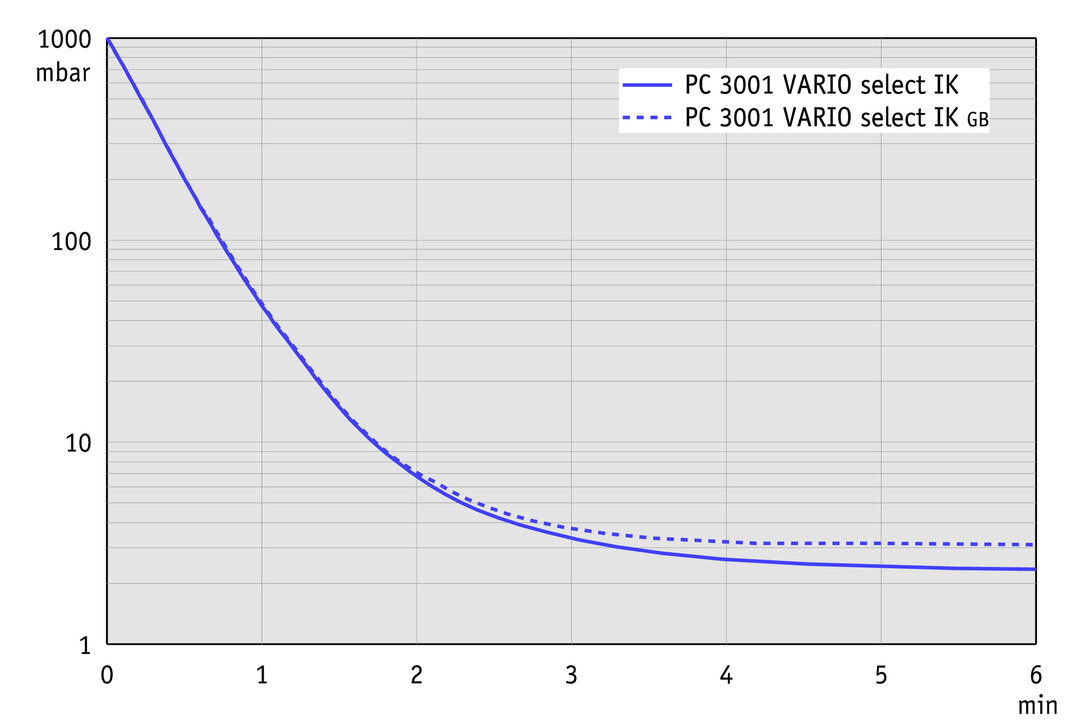

Technical data and graphs

Item number 20700265
Max. pumping speed 50 Hz 2 m³/h
Max. pumping speed 60 Hz 1.18 cfm
Ultimate vacuum 2 mbar
Ultimate vacuum in torr 1.5 torr
Ultimate vacuum with gas ballast 4 mbar
Ultimate vacuum with gas ballast in torr 3 torr
Number of heads 4
Number of stages 3
Vacuum controller VACUU·SELECT
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. outlet pressure (abs.) 1.1 bar
Inlet connection Hose nozzle DN 13 mm
Outlet connection Hose nozzle DN 8-10 mm
Coolant connection 4 x hose nozzle DN 6-8 mm
Rated motor power 0.16 kW
Protection class IEC 60529 IP 20
Dimension L in mm 309 mm
Dimension W in mm 312 mm
Dimension H in mm 400 mm
Weight 8.8 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 42 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pumping unit completely mounted, ready for use, with manual.
Rated mains voltage range 1 200-230 V
Rated mains voltage range 2 100-120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 50-60 Hz
Interface Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
Items supplied
Pumping unit completely mounted, ready for use, with manual.
Applications

Application examples

Rotary evaporators
Rotary evaporators
Vacuum concentrator / centrifuge
Vacuum concentrator / centrifuge
Vacuum drying oven
Vacuum drying oven

Rotary evaporators

In rotary evaporation, vacuum is the critical parameter for a successful process. Precise vacuum control enables optimal evaporation rates without delayed boiling or foaming. Chemical diaphragm pumps are particularly well-suited for this application due to their chemical resistance, high condensate tolerance, and sufficient suction capacity. Our VARIO technology controls the vacuum as needed via the motor speed. This results in precise pressure control and optimal process times. The VACUU·SELECT vacuum controller automatically detects boiling pressures and adjusts the vacuum to the process progression.

Rotary evaporators

Vacuum concentrator / centrifuge

In vacuum concentration, vacuum is the key parameter, as the temperature can only be raised to a limited extent. Precise vacuum control enables optimal evaporation rates without delayed boiling or foaming. Chemical diaphragm pumps are ideally suited for this application due to their oil-free operation, chemical resistance, and high condensate tolerance. Our VARIO technology controls the vacuum as needed through adaptive speed adjustment—this shortens process times, reduces noise, and extends diaphragm service life. With automatic boiling point detection and tracking, the system adapts optimally to the process.

Vacuum concentrator / centrifuge

Vacuum drying oven

For vacuum drying ovens, chemical-resistant, condensate-compatible pumps with high flow rates are essential for handling large volumes of vapor and gently drying samples. For primary drying under rough vacuum, choose oil-free chemical diaphragm pumps with a final vacuum of approximately 1–10 mbar. With VARIO control, the vacuum is adjusted via motor speed: optimized evaporation rates, reduced process times, quiet operation, and lower energy consumption. If residual drying under high vacuum is required, the VACUU·PURE 10C screw pump is ideal: oil-free, chemically resistant, with no wear parts, and featuring a regeneration mode for increased sample throughput. Recommended: AK separator (inlet) and EK exhaust condenser (outlet) for protection and near-total solvent recovery.

Vacuum drying oven
