VSP 3000Vacuum sensor
Overview
Vacuum sensor in action

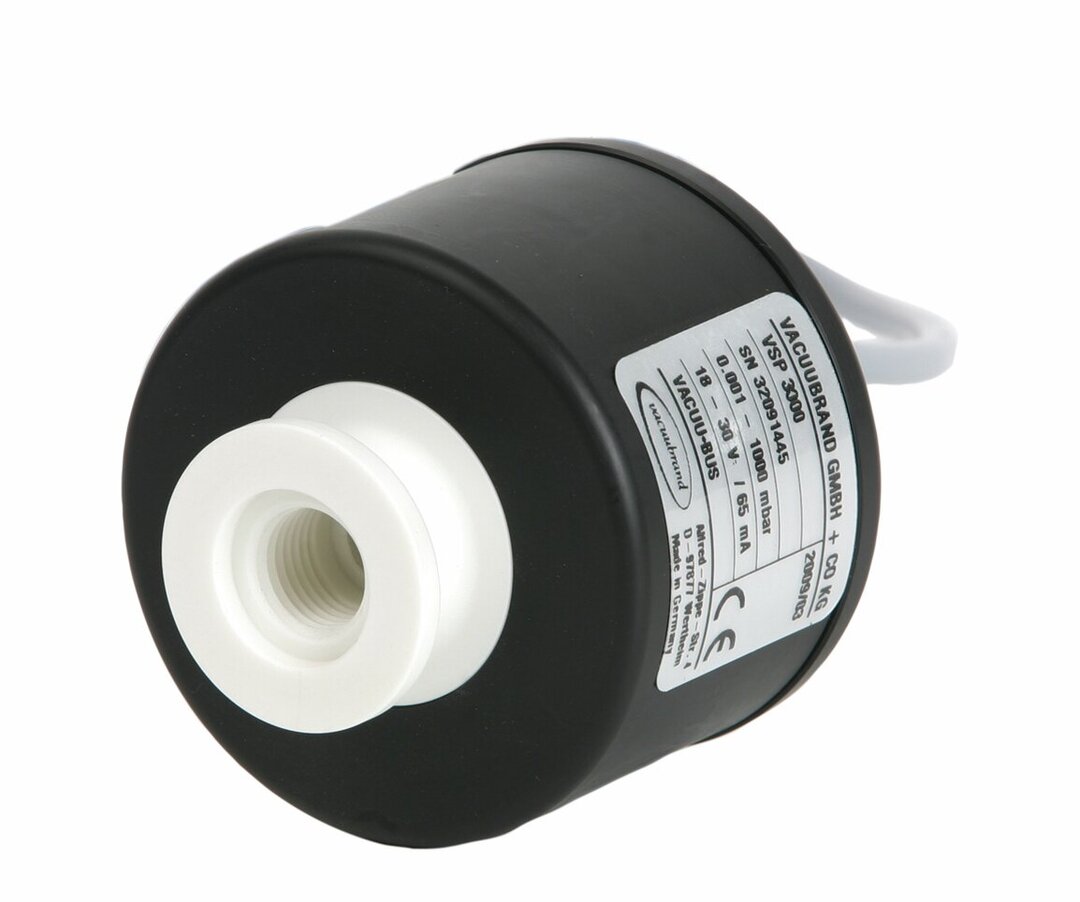

The Pirani-type vacuum sensor VSP 3000 offers an outstanding corrosion resistance and mechanical robustness for fine vacuum measurements. It is primarily designed for applications in chemistry and process engineering. The vacuum gauge DCP 3000 is now also available with this new Pirani sensor VSP 3000 for an increased measuring range down to the 10-3 mbar range. Up to eight external gauge heads (four of ceramic diaphragm-type VSK 3000 and four VSP 3000) can be connected simultaneously to the DCP 3000 vacuum gauge for easy measurements at multiple points. Communication between the DCP 3000 and the external components is provided by the especially developed bus control system VACUU·BUS®. It is self-configuring, easy to use due to standardized plug connectors and allows cable extensions up to 30 m. The large illuminated display, controlled by a simple jog wheel, displays the readings from each gauge head.
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1000 mbar | |
| Upper measuring limit in torr | 750 torr | |
| Lower measuring limit in mbar/hPa | 1 x 10-3 | |
| Lower measuring limit in torr | 1 x 10-3 torr | |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar/hPa/torr mbar/hPa/torr | |
| Vacuum sensor | 11 | |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Protection class IEC 60529 | IP 54 | |
| Protection class UL50E | Type 5 | |
| Protection class front side IEC 60529 | 6 | |
| Weight | 0.18 kg | |
| Interface | VACUU-BUS | |
| NRTL certification | Yes | |
| Items supplied | Vacuum sensor VSP 3000 complete with 2 m VACUU·BUS® - cable |
Equipment
-

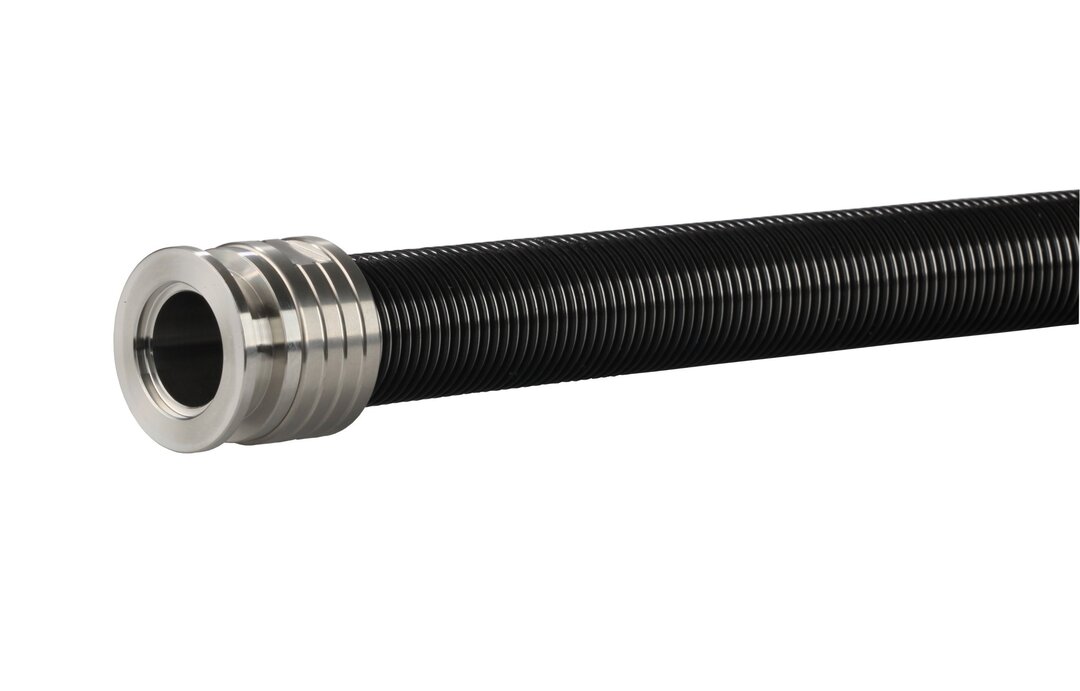

![PTFE tubing antistatic, KF DN 16/1000 mm]()
KF DN 16, 1000 mm PTFE-tubing (antistatic) with small flanges- PTFE (antistatic) / stainless steel
- Nominal width KF DN 16 mm | length 1000 mm
- Leak rate 1 x 10-4 mbar l/s
![Tubing, stainless steel, KF DN 16,length 1000 mm]()
KF DN 16, 1000 mm Metal vacuum tubing with small flanges- stainless steel
- Nominal width KF DN 16 mm | length 1000 mm
- Leak rate 1 x 10-9 mbar l/s
Application examples
Lyophilisation (freeze drying)
Vacuum drying oven
Fore vacuum for turbomolecular pumps
