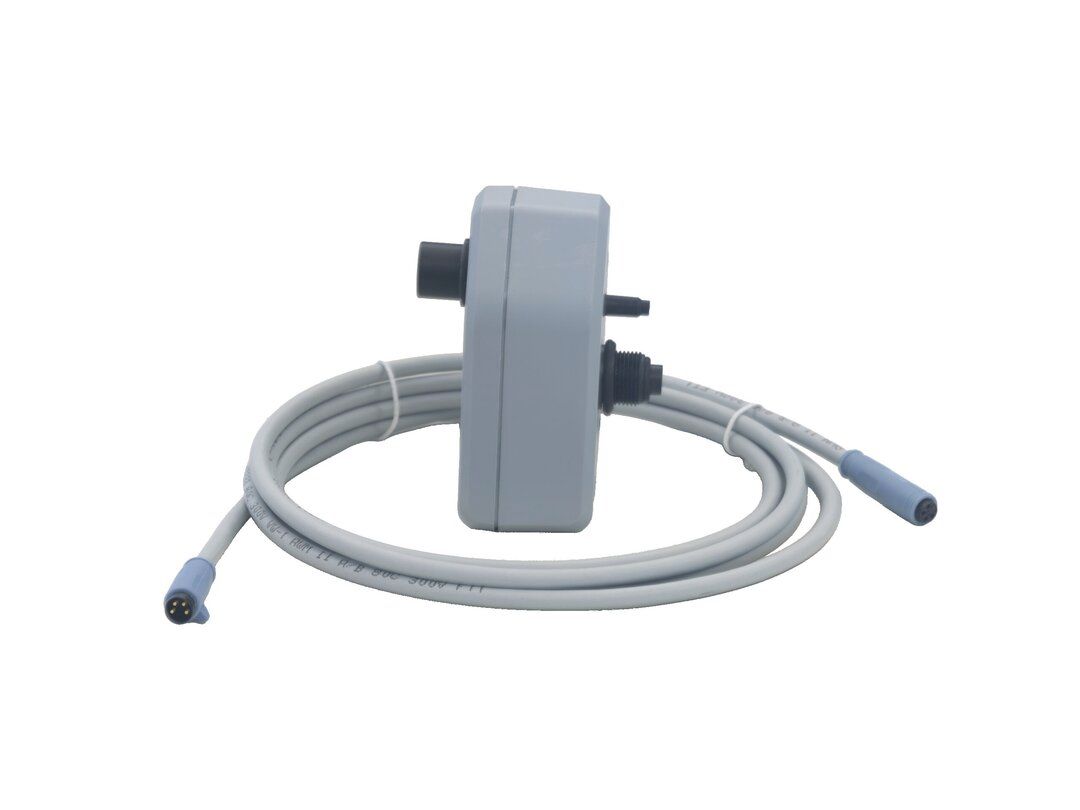

VACUU·SELECT SensorVacuum sensor
Overview
Articleno.
20700020
Vacuum sensor in action
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1080 mbar | |
| Upper measuring limit in torr | 810 torr | |
| Lower measuring limit in mbar/hPa | 0.1 | |
| Lower measuring limit in torr | 0.1 torr | |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr | |
| Vacuum sensor | 11 | |
| Temperature coefficient | < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K | |
| Vacum connection | Small flange KF DN 16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Protection class IEC 60529 | IP 41 | |
| Protection class UL50E | Type 2 | |
| Protection class front side IEC 60529 | 6 | |
| Weight | 0.15 kg | |
| Cable length connection in m | 2 m | |
| Interface | VACUU-BUS | |
| NRTL certification | Yes | |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only | |
| Items supplied | Vacuum gauge head VACUU-SELECT Sensor wiith venting valve. |
