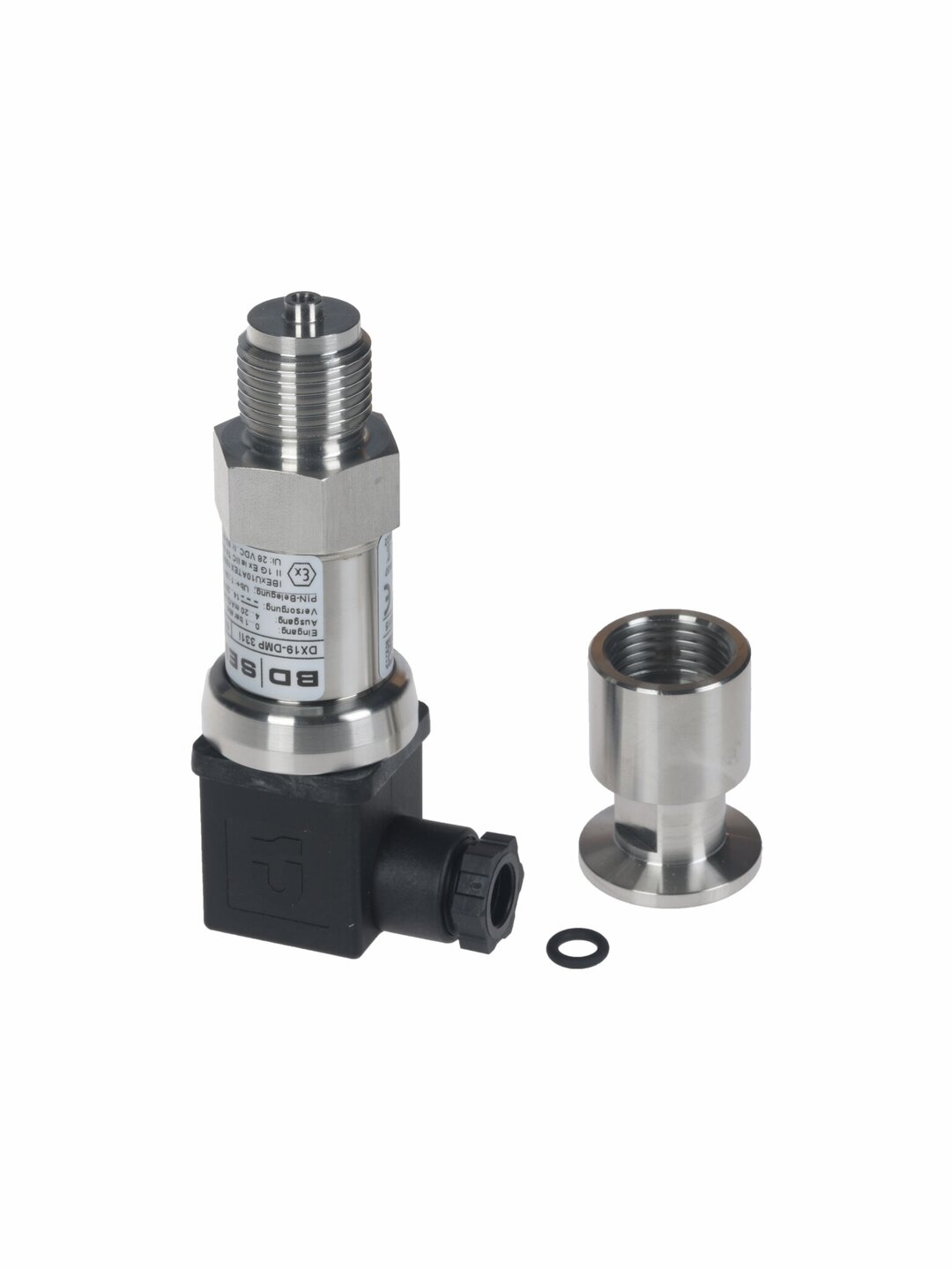

DMP 331i KF DN 16Vacuum sensor
Overview
- with ATEX-certification II 1G Ex ia IIC T4 GA. Measuring range 1000-1 mbar
- Accuracy: +-1 mbar
Articleno.
20635423
Vacuum sensor in action
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1000 mbar | |
| Upper measuring limit in torr | 750 torr | |
| Lower measuring limit in mbar/hPa | 1 | |
| Lower measuring limit in torr | 1 torr | |
| Measurement principle | Edelstahl-Membran (1.4435), gasartunab., Absolutdruck | |
| Accuracy of measurement | < +- 1 mbar mbar/hPa/torr | |
| Vacuum sensor | 11 | |
| Vacum connection | small flange KF DN 16 | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Metall housing | |
| Protection class IEC 60529 | IP 65 | |
| Protection class front side IEC 60529 | 6 | |
| Interface | 4 - 20 mA | |
| NRTL certification | No | |
| ATEX conformity | II 1G Ex ia IIC T4 Ga | |
| Items supplied | Vacuum sensor for hazardous areas complete with small flange KF DN 16 and plug for cable assembly. |
Downloads
ATEX Vacuum gauge head DMP 331i, BDSENSORS,with KF DN 16,measuring range: 1000-1 mbar, accuracy +-1 mbar,with ATEX approval: II 1G Ex ia IIC T4 Gaoutput signal 4 - 20 mA, for operationwith EX i - power / input isolating
