VACUU·VIEW extendedVacuum gauge
Overview
- Precision and chemical resistance in an exceptionally wide range from atmosphere down to 10-3 mbar, one gauge only for both rough and fine vacuum
- compact design with integrated sensors for useful setup in laboratory and process
- the chemical resistant combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures a long product life even with aggressive chemicals
- illuminated display, easy to read
- display with menu driven handling, easy to use e.g. for unit settings
Articleno.
20683210
Vacuum gauge in action
For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10-3 mbar.
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1100 mbar | |
| Upper measuring limit in torr | 825 torr | |
| Lower measuring limit in mbar/hPa | 1 x 10-3 | |
| Lower measuring limit in torr | 1 x 10-3 torr | |
| Measurement principle | Ceramic diaphragm sensor + ceramic jacketed Pirani sensor | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr | |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only | |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K | |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Venting valve | No | |
| Protection class IEC 60529 | IP 54 | |
| Protection class UL50E | Type 5 | |
| Protection class front side IEC 60529 | IP 54 | |
| Weight | 0.19 kg | |
| Dimension L in mm | 50 mm | |
| Dimension B in mm | 62 mm | |
| Dimension H in mm | 103 mm | |
| Vacuum sensor | Integr. | |
| Cable length connection in m | 2 m | |
| NRTL certification | Yes | |
| Items supplied | Vacuum gauge with integrated vacuum sensors, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
Downloads
Vacuum gauge VACUU·VIEW extended1100 - 0.001 mbarcertification (NRTL): C/US100-230 V/50-60 Hz,plug CEE/CH/UK/US/AUS
VACUU·VIEW extended
Vacuum gauge
Equipment
-
![Rubber vacuum tubing, DN 8,price per meter]()
DN 8 mm, sale per meter Rubber vacuum tubing- Natural rubber + SBR
- Nominal width DN 8 mm
- Sale per meter
This might also interest you
-

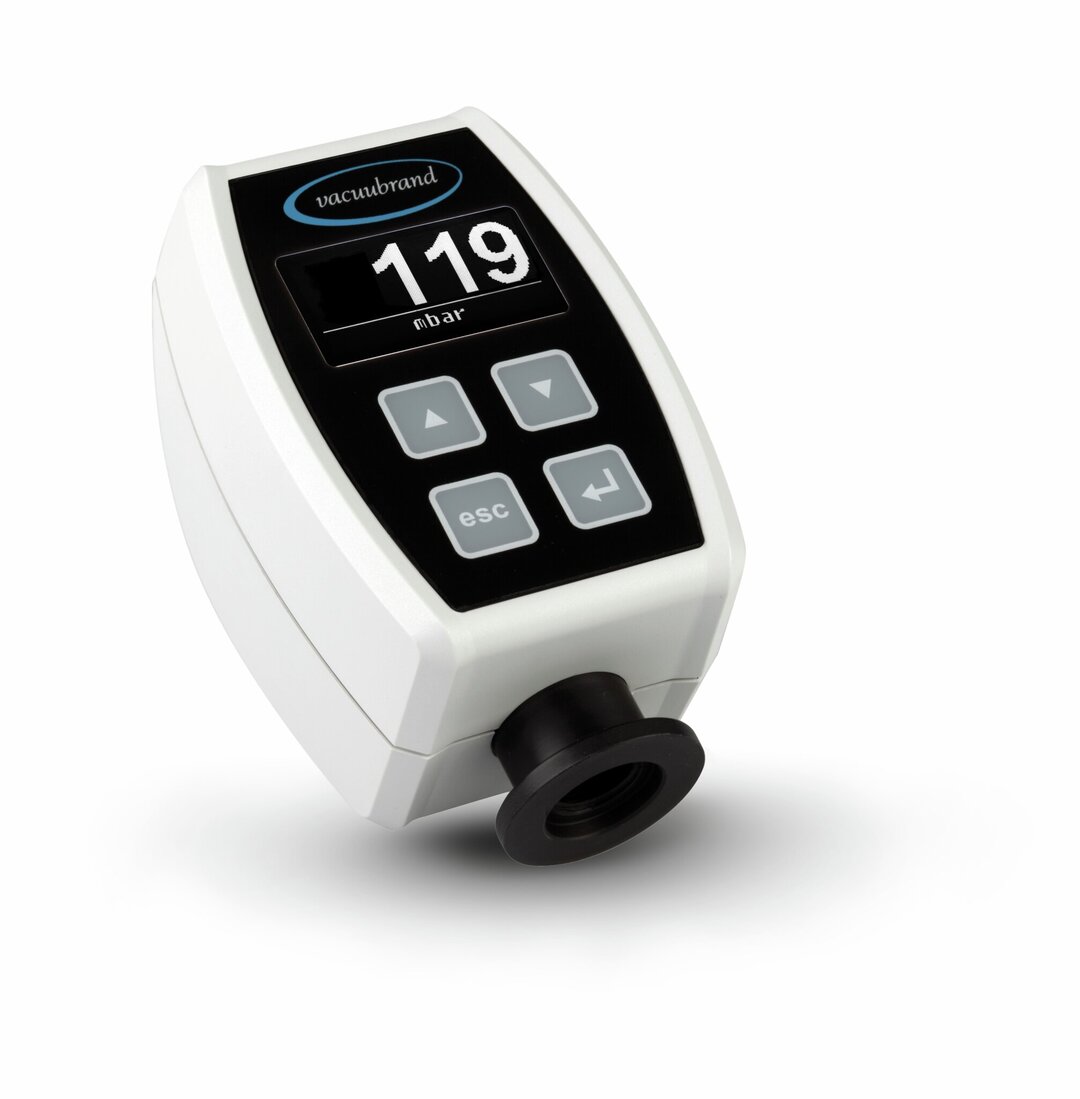

![Vacuum gauge VACUU·VIEW1100 - 0.1 mbarcertification (NRTL): C/US100-230 V/50-60 Hz,plug CEE/CH/UK/US/AUS]()
VACUU·VIEW Vacuum gauge- Chemically resistant
- Excellent long-term stability
- Mains powered

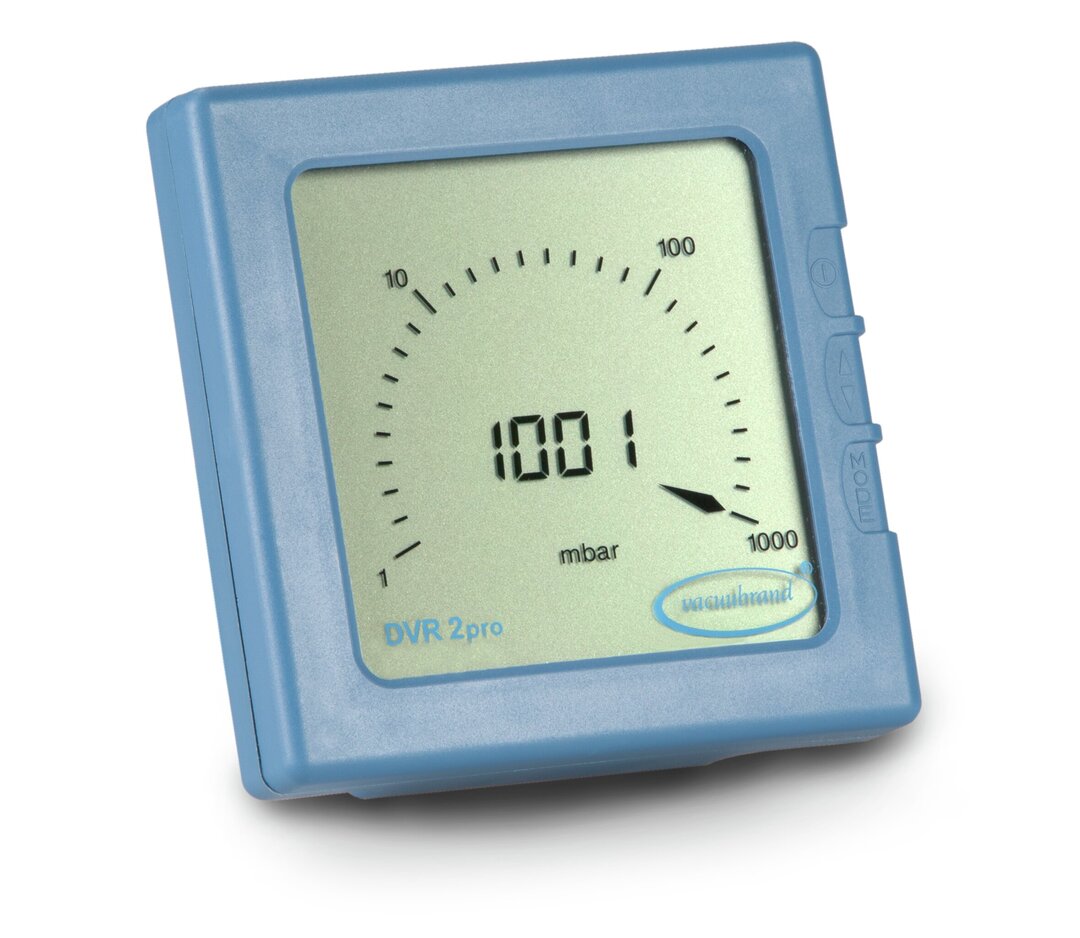

![Vacuum gauge DVR 2pro, 1080 - 1 mbar*** Alkaline-Manganese Dioxide-Zinc-Batteries! Not restricted - No dangerous goods transportaccording IATA SP A123 and ADR/RID/IMDG code. ***]()
DVR 2pro Vacuum gauge- Chemically resistant
- Excellent long-term stability
- Battery powered

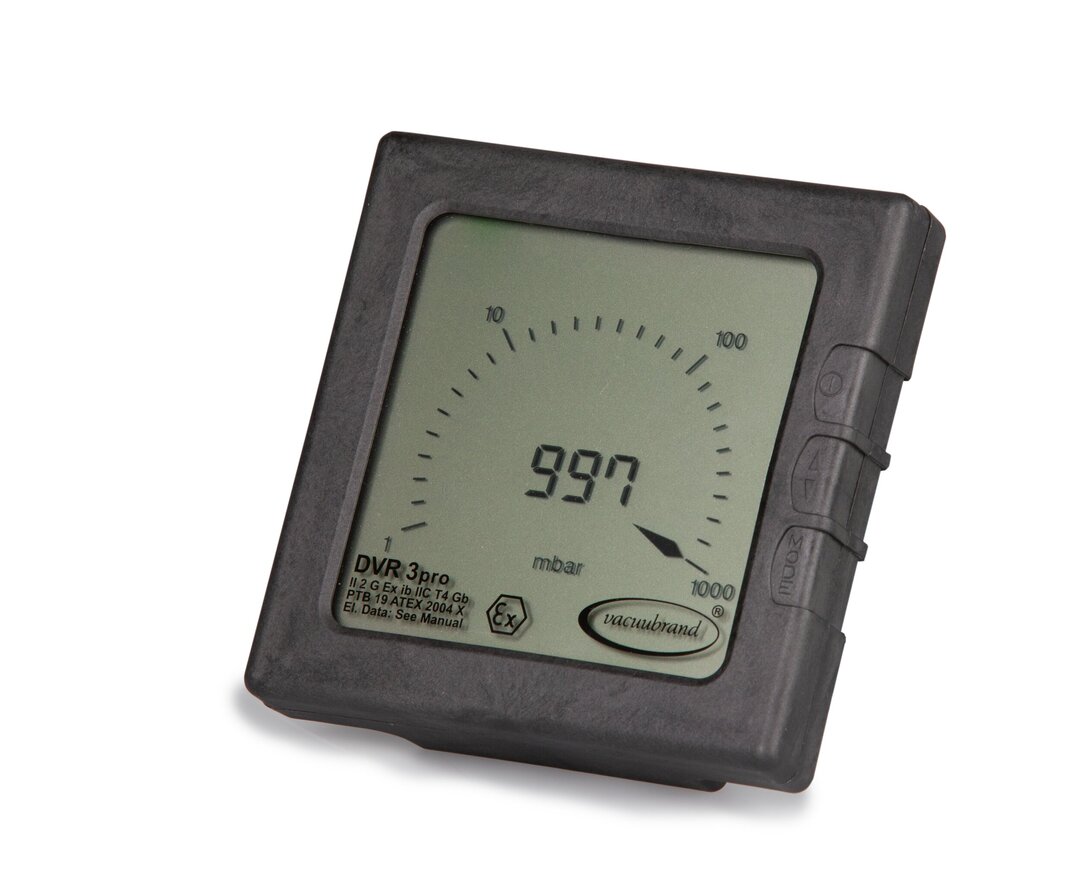

![Vacuum gauge DVR 3pro,PTB 19 ATEX 2004 X: II 2G EX ib IIC T4 Gb*** Alkaline-Manganese Dioxide-Zinc-Batteries! Not restricted - No dangerous goods transportaccording IATA SP A123 and ADR/RID/IMDG code. ***]()
