VCL KShut off module A1
Overview
Articleno.
20677155
Shut off module A1 in action

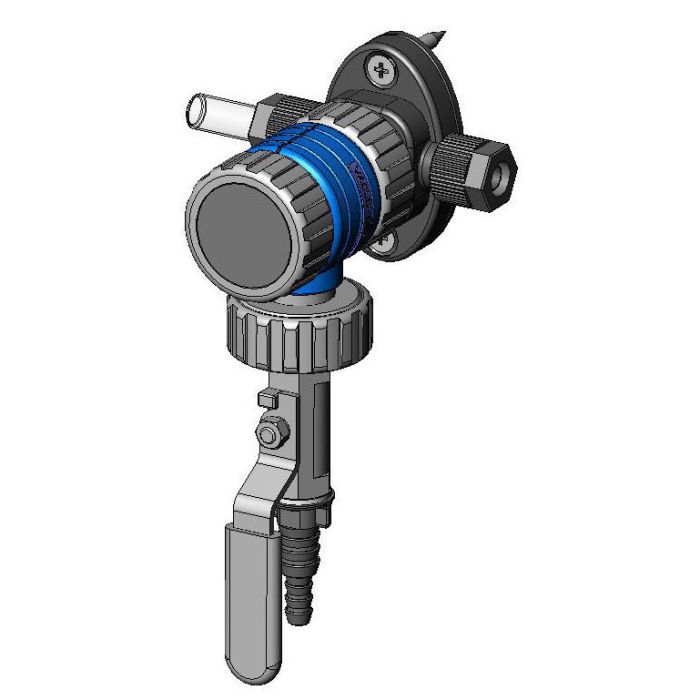

VACUU·LAN® shut off module VCL K with connecting part A1, M35 consisting of A1, B1, C1, D1
with ball valve for quick opening or closing of the vacuum line.Technical data and graphs
| Connection element | A1 | |
| Items supplied | VACUU·LAN® module, completely assembled and leak tested |
Downloads
VCL K
Shut off module A1
VACUU·LAN® shut off module VCL Kwith connecting part A1, M35consisting of A1, B1, C1, D1
Brochure
PDF
0.8 MB
