KF DN 16, 250 mmMetal vacuum tubing with small flanges
Overview
Articleno.
20673306
Metal vacuum tubing with small flanges in action

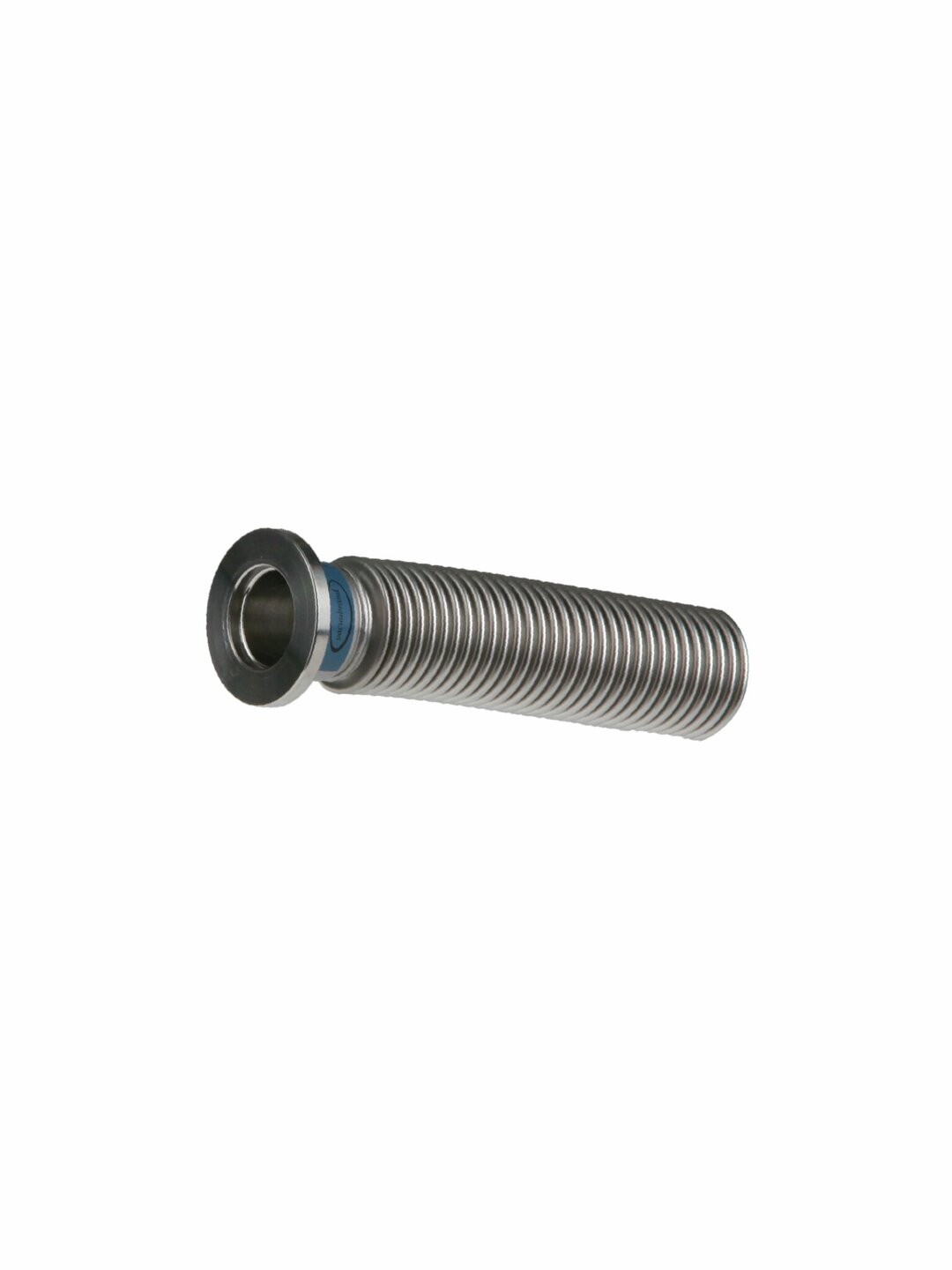

Tubing, stainless steel, KF DN 16, length 250 mm
Technical data and graphs
| Dimensions A in mm | 250 mm | |
| Dimension B in mm | 29 mm | |
| Dimensions C in mm | 120 mm |
Downloads
Tubing, stainless steel, KF DN 16,length 250 mm
KF DN 16, 250 mm
Metal vacuum tubing with small flanges
