Articleno.
20662701
KF DN 10 / NS 14/23Small flange with male ground joint
Overview
Small flange with male ground joint in action

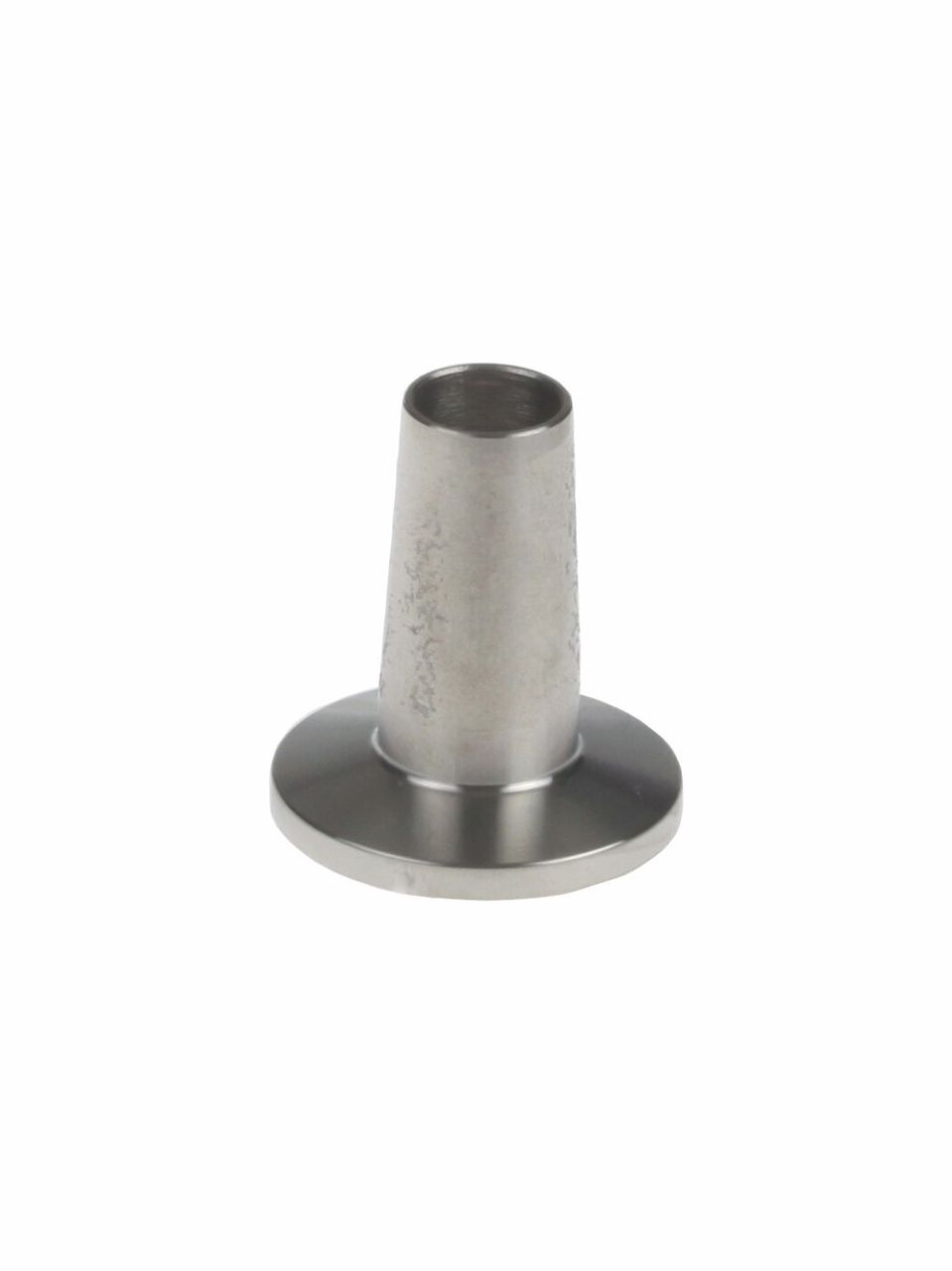

Small flange with male standard ground joint, stainless steel, KF DN 10, NS 14/23
Technical data and graphs
| Material | stainless steel | |
| Nominal width | KF DN 10 | |
| Dimensions A in mm | 33 mm | |
| Dimension W in mm | 23 mm | |
| Dimensions C in mm | 14.5 mm |
