KF DN 40 / DN 25 mmSmall flange with hose nipple

Overview

Articleno. 20662534
On demand
KF DN 40 / DN 25 mm Small flange with hose nipple

By submitting the contact form, you agree that your data will be used to process your request. If your inquiry comes from a country in which we do not have our own sales department, you also consent to your data being forwarded to the responsible local trading partner. You can find an overview of the trading partners on our contact page. Further information on data processing, including possible third country transfers, can be found in our data protection information.

Anti-Robot Verification
FriendlyCaptcha ⇗

Inquire
Add to Wish List
Add to Compare list

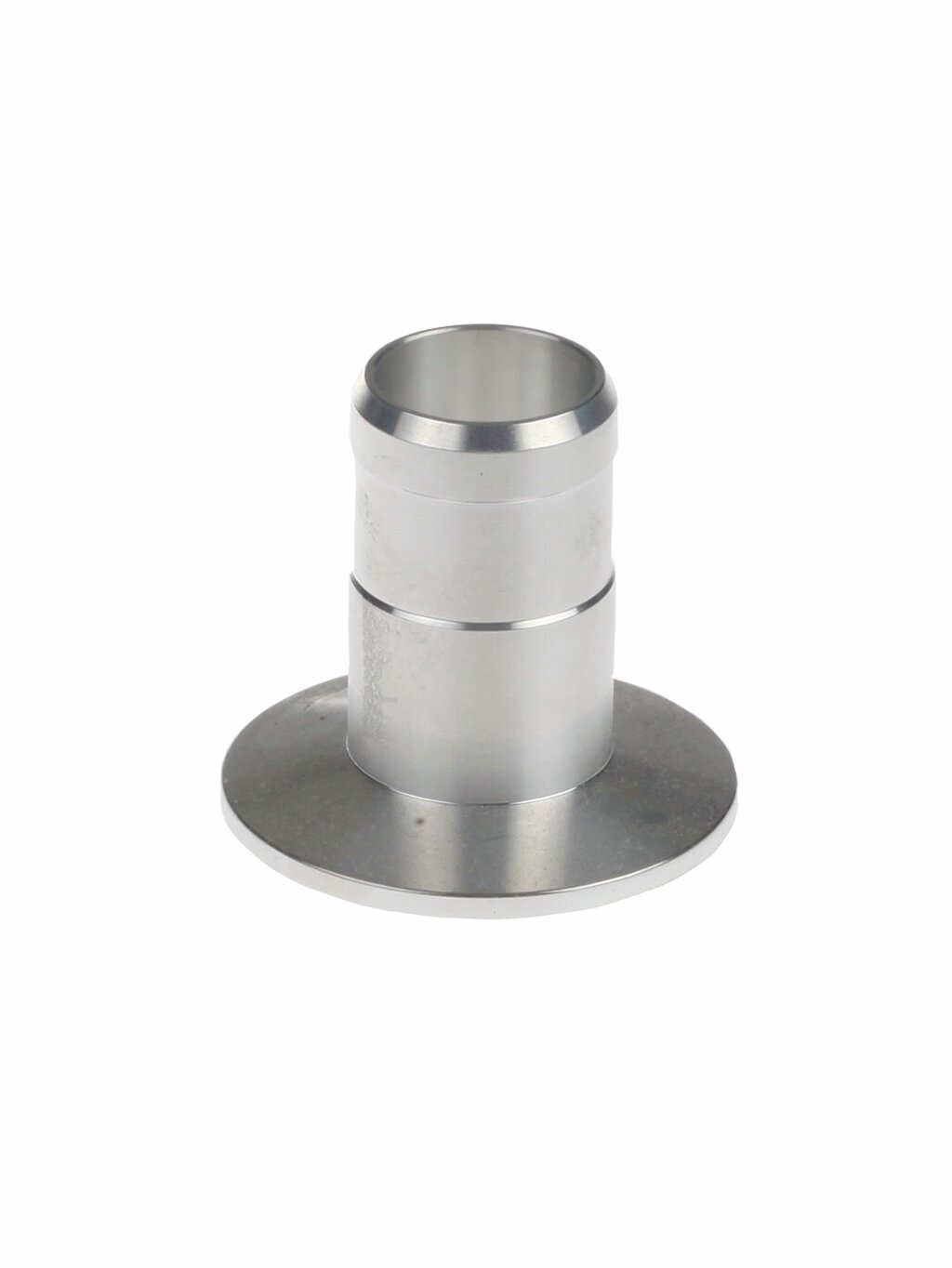

main product photo

Small flange with hose nipple in action

Small flange, aluminum, KF DN 40, with hose nipple for tubing i.d. 25 mm

Technical data and graphs

Dimensions A in mm 50 mm
Dimension B in mm 23 mm
Dimensions C in mm 28 mm
Inner diameter connection hose in mm 25
