KF DN 16 / DN 10 mmSmall flange with hose nozzle
Overview
Articleno.
20662511
Small flange with hose nozzle in action

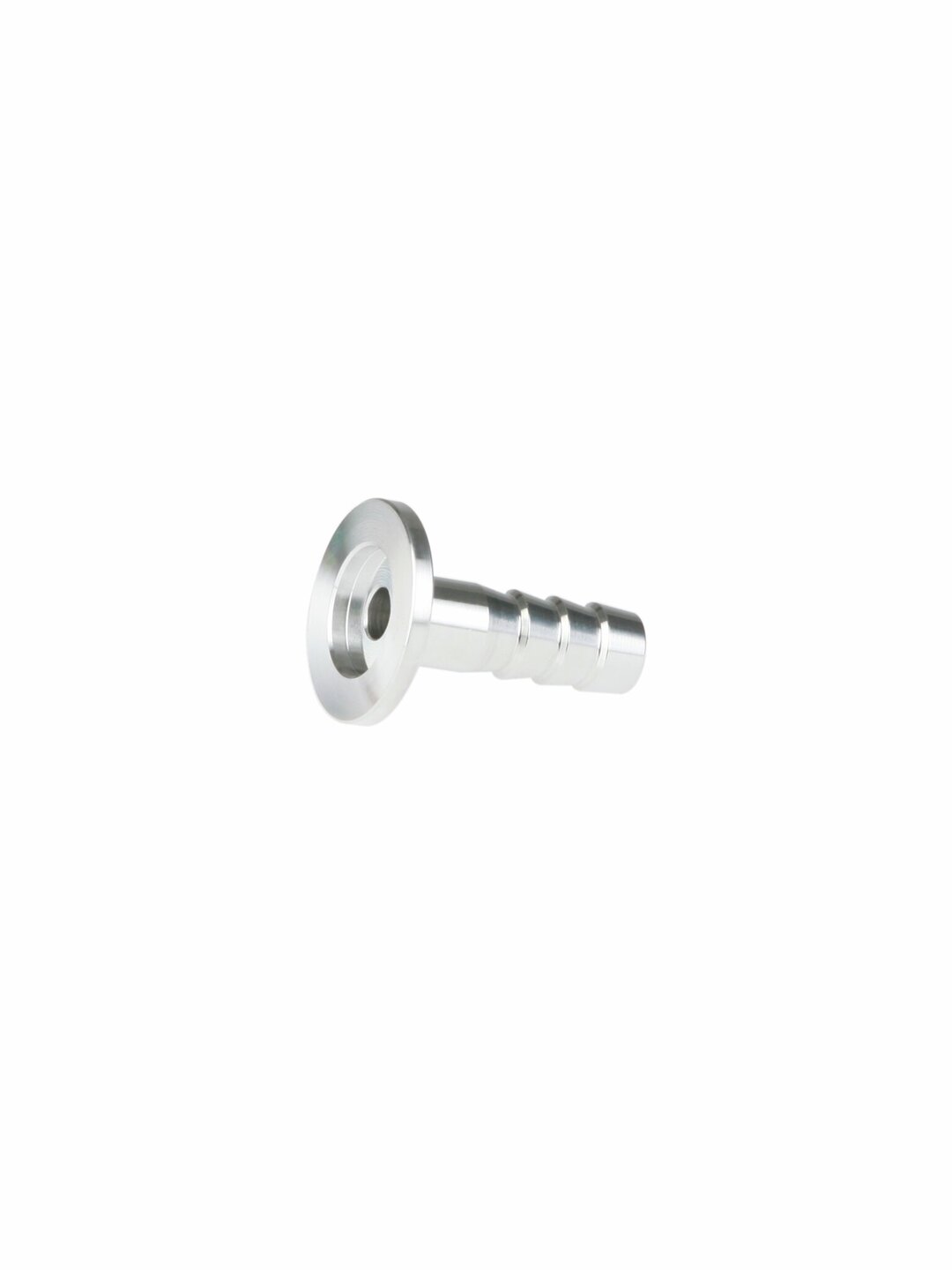

Small flange, aluminum, KF DN 16, with hose nozzle for tubing i.d. 10 mm
Technical data and graphs
| Material | Aluminum | |
| Nominal width | KF DN 16 | |
| Dimensions A in mm | 40 mm | |
| Dimension W in mm | 7 mm | |
| Dimensions C in mm | 12 mm | |
| Dimensions D in mm | 10 mm |
