KF DN 10 / DN 6 mmSmall flange with hose nozzle
Overview
Articleno.
20662500
Small flange with hose nozzle in action

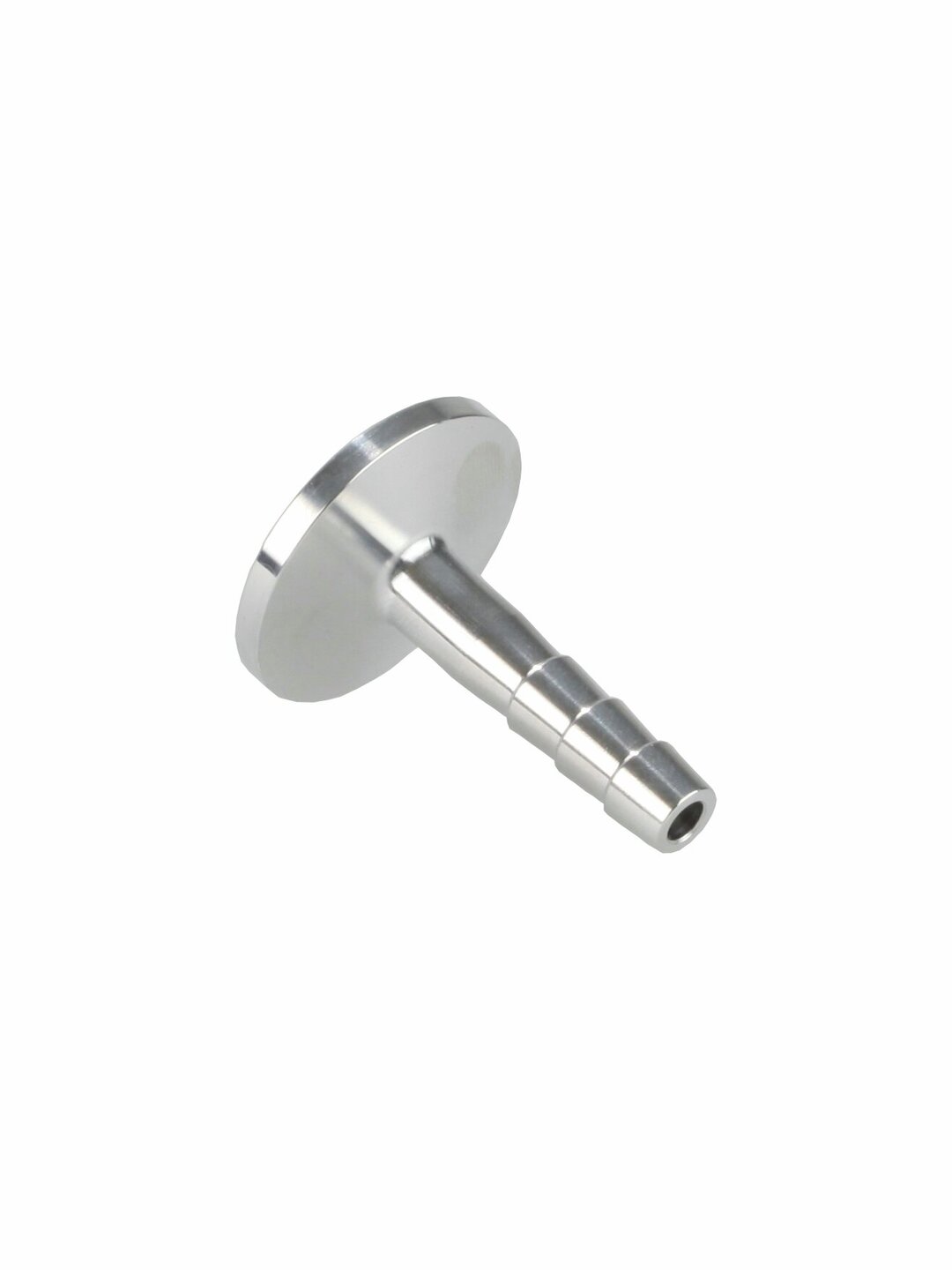

Small flange, aluminum, KF DN 10, with hose nozzle for tubing i.d. 6 mm
Technical data and graphs
| Dimensions A in mm | 40 mm | |
| Dimension B in mm | 4 mm | |
| Dimensions C in mm | 8 mm | |
| Inner diameter connection hose in mm | 6 |
