KF DN 10 / DN 12 mmSmall flange with hose nipple
Overview
Articleno.
20662530
Small flange with hose nipple in action

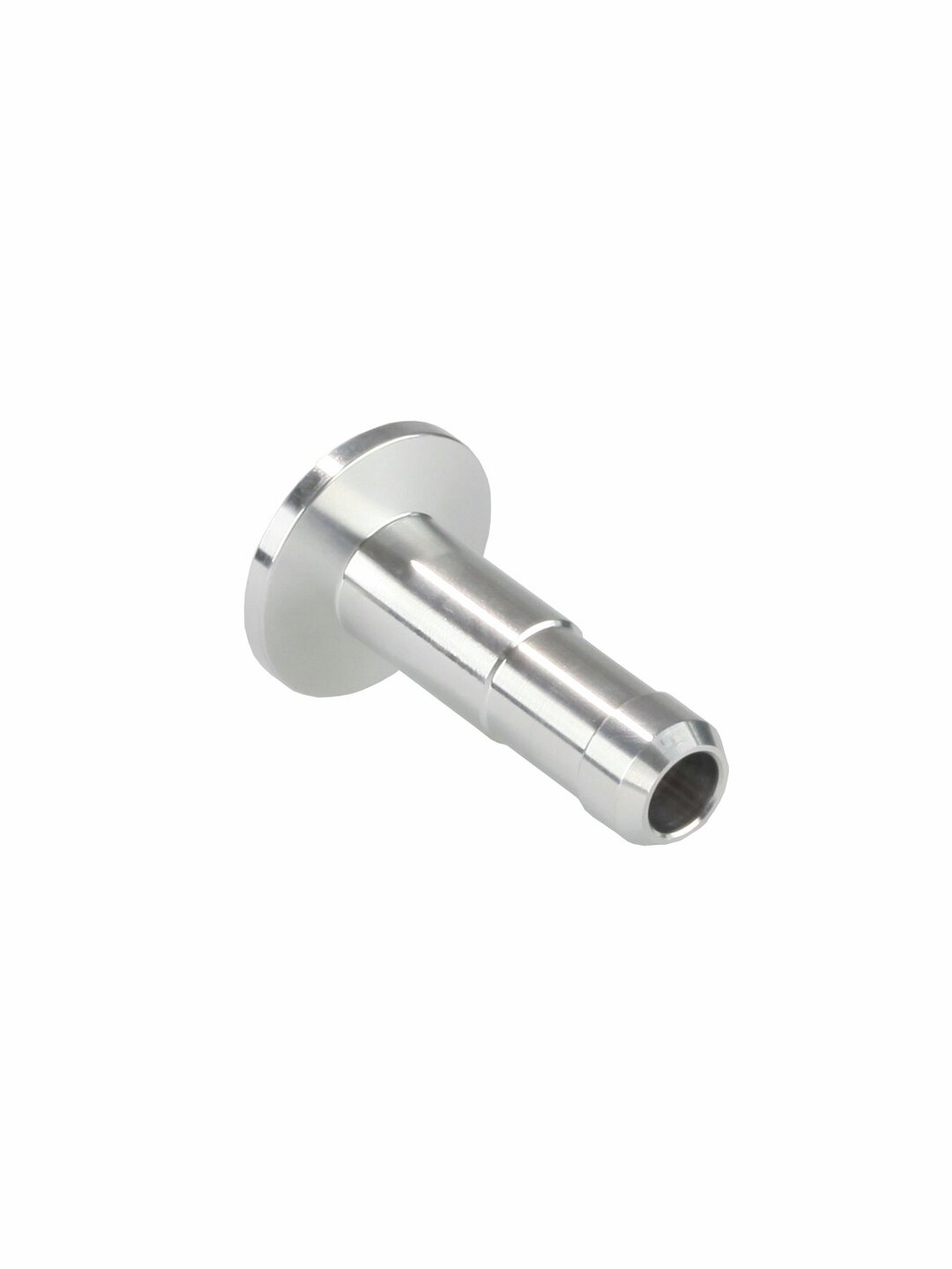

Small flange, aluminum, KF DN 10, with hose nipple for tubing i.d. 12 mm
Technical data and graphs
| Dimensions A in mm | 50 mm | |
| Dimension B in mm | 9 mm | |
| Dimensions C in mm | 14 mm | |
| Inner diameter connection hose in mm | 12 |
