AK for RE/RZ 2/2.5Separator inlet side
Overview
- direct mounting at the inlet, compact and leak-tight
- high conductance
- direct visibility of condensate through the transparent catchpot
- easy draining of condensate
- For rotary vane pumps RE 2.5 with article no. 2069715x and RZ 2.5 with article no. 2069812x. For rotary vane pumps RE 2.5 with article no. 2079715x and RZ 2.5 with article no. 2079812x order separator 20698006.
Articleno.
20698000
Separator inlet side in action
Separator AK for RE/RZ 2 and RE/RZ 2.5
Separators at the inlet protect pumps from particulates and droplets which may shorten service intervals and even reduce the lifetime and the operating performance of oil-sealed rotary vane pumps. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of plastic (PMP) with good chemical resistance.Technical data and graphs
| Ambient temp., upper limit, in °C | 40 °C | |
| Ambient temp., lower limit, in °C | 10 °C | |
| Dimension L in mm | 200 mm | |
| Dimension B in mm | 80 mm | |
| Dimension H in mm | 159 mm | |
| Outlet connection | small flange KF DN 16 | |
| Inlet connection | directly mountable | |
| For VACUUBRAND pumps | RE 2, RZ 2, RE 2.5 (2069715x), RZ 2.5 (2069812x) | |
| Volume catchpot | 250 ml | |
| Items supplied | Separator AK for RE/RZ 2/2.5. |
Downloads
Separator AK for RE/RZ 2 and RE/RZ 2.5
This might also interest you
-
![Separator AK for RE/RZ 5 and RE/RZ 6 and RE/RZ 2.5]()
AK for RE/RZ 5/6/2.5 Separator inlet side- Compact and leak-tight
- High conductance
- Easy draining of condensate

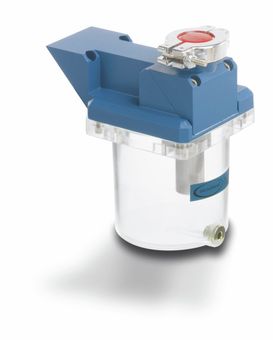

![Separator AK R 8 / 9 / 16,inlet connection KF NW 25]()
