KF DN 16 / G1/2"Screw-in flange (male thread) for small flange
Overview
Articleno.
20672101
Screw-in flange (male thread) for small flange in action

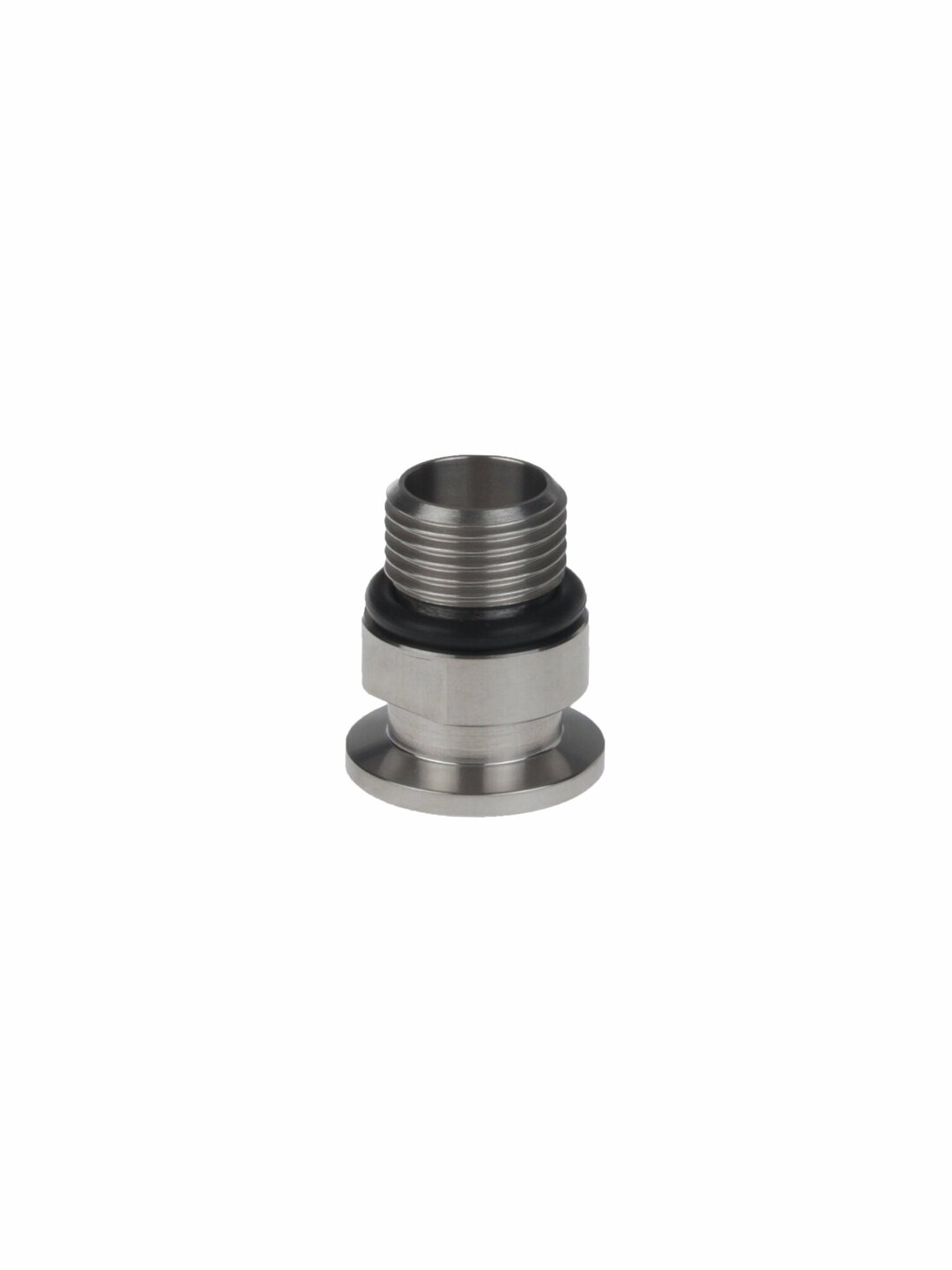

Screw-in flange, stainless steel, KF DN 16/G 1/2"
Small flange KF DN 16 / G1/2" as outlet for diaphragm pumps ME 16(C) NT, MD 12(C) NT, MV 10(C) NTTechnical data and graphs
| Material | stainless steel | |
| Material sealing | FKM | |
| Nominal width | KF DN 16 | |
| Dimensions A in mm | 35 mm | |
| Dimension W in mm | 16 mm | |
| Dimensions C in mm | G1/2" mm | |
| Dimensions D in mm | 26 mm |
