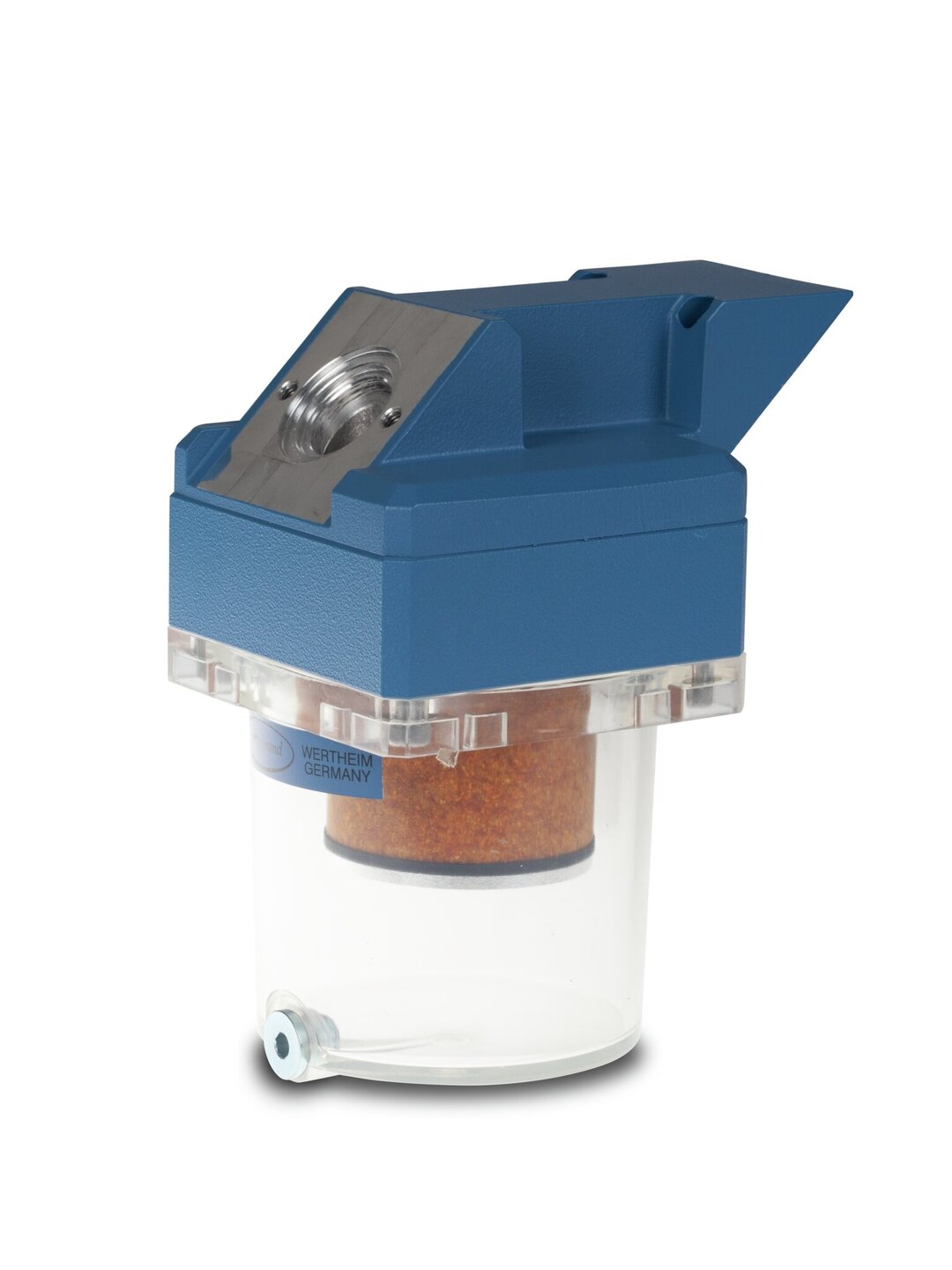

FO R 8/9/16Oil mist filter outlet side
Overview
- very high degree of separation
- optimal control by transparent catchpot
- easy draining of oil
- direct mounting on the oil reservoir outlet
- integrated pressure relief valve for burst protection in case of blocked filter
Articleno.
20698017
Oil mist filter outlet side in action
Oil mist filter FO R 8 / 9 / 16, outlet connection NW 25 KF
Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters separate nearly 100% of oil mist at the ultimate vacuum of the pump.Technical data and graphs
| Ambient temp., upper limit, in °C | 40 °C | |
| Ambient temp., lower limit, in °C | 10 °C | |
| Dimension L in mm | 163 mm | |
| Dimension B in mm | 110 mm | |
| Dimension H in mm | 196 mm | |
| Outlet connection | directly mountable | |
| Inlet connection | small flange KF DN 25 | |
| For VACUUBRAND pumps | RE 8, RZ 8, RE 9, RZ 9, RE 16, RZ 16 | |
| Permissible volume flow rate | 20 m3/h | |
| Volume catchpot | 195 ml |
Downloads
Oil mist filter FO R 8 / 9 / 16,outlet connection NW 25 KF
Oil mist filter FO R 8 / 9 / 16,outlet connection NW 25 KF
Brochure
PDF
8.9 MB
