KF DN 40Filter-centring ring for small flange
Overview
Articleno.
20660163
Filter-centring ring for small flange in action

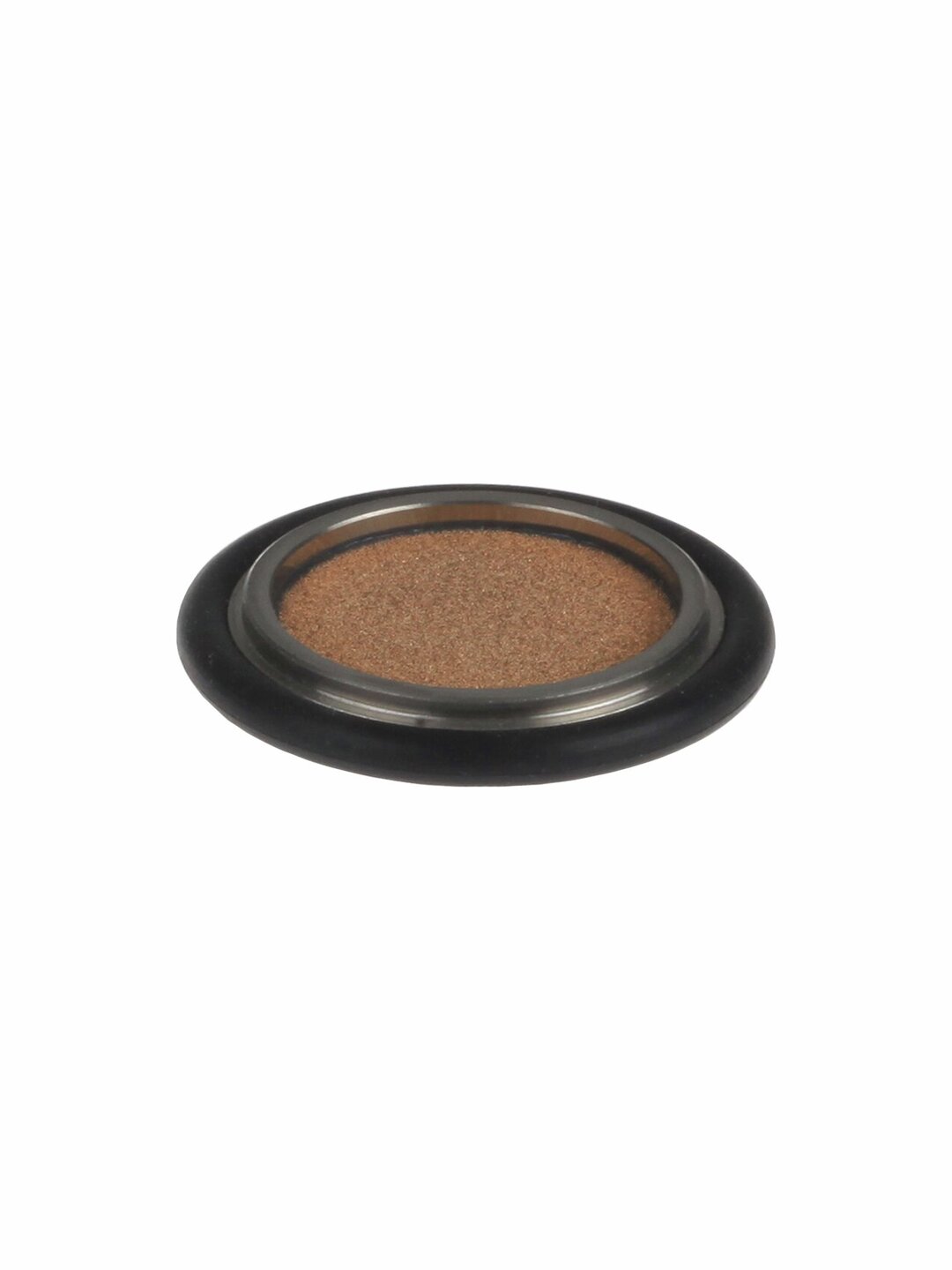

Filter centring ring, sealing ring NBR, KF DN 40
Technical data and graphs
| Dimensions A in mm | 41 mm | |
| Dimension B in mm | 36 mm | |
| Dimensions C in mm | 43 mm | |
| Items supplied | Filter centring ring with sealing ring, pore size 45 µm. | |
| Sealing ring inner diameter x cord thickness in mm | 42 x 5 |
