KF DN 32/40External centring ring for small flange
Overview
Articleno.
20660197
External centring ring for small flange in action

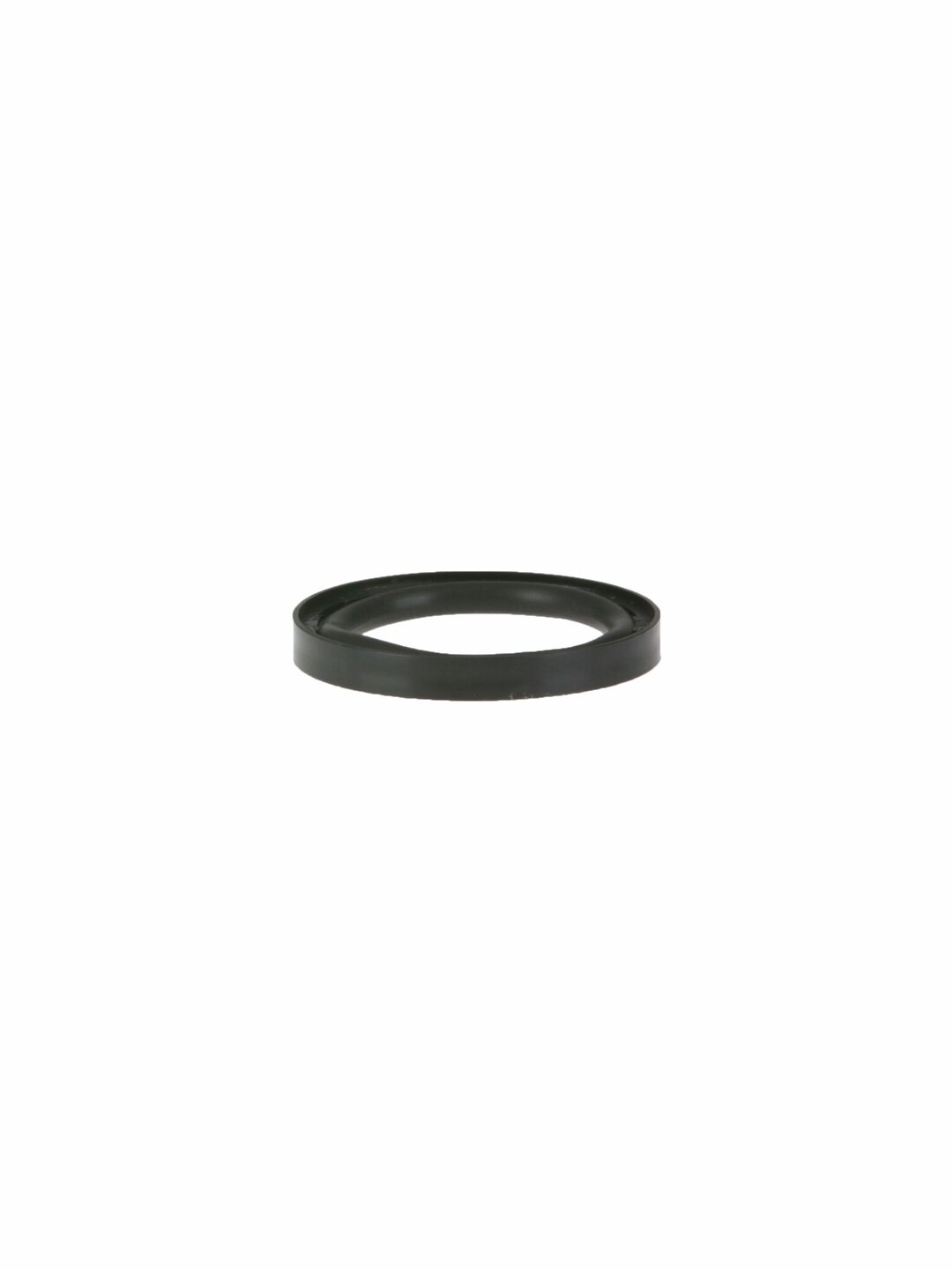

External centring ring, PBT, sealing ring FPM, KF DN 32/40
Technical data and graphs
| Dimensions A in mm | 57 mm | |
| Dimension B in mm | 55.1 mm | |
| Dimensions C in mm | 51 mm | |
| Sealing ring inner diameter x cord thickness in mm | 42 x 5 |
