KF DN 20/25External centring ring for small flange
Overview
Articleno.
20660191
External centring ring for small flange in action

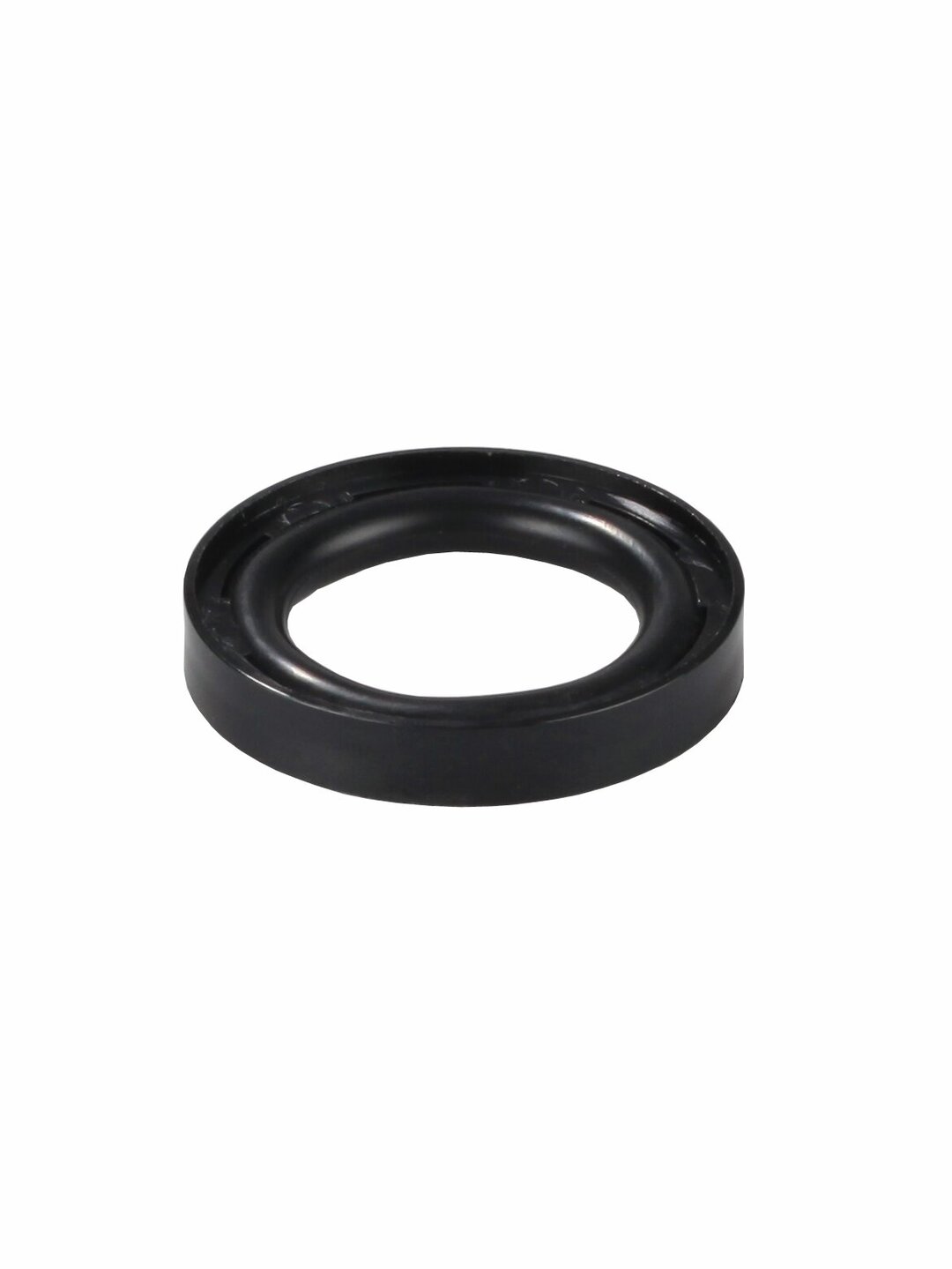

External centering ring, PBT, sealing ring NBR, KF DN 20/25
Technical data and graphs
| Material | PBT | |
| Material sealing | NBR | |
| Nominal width | KF DN 20/25 | |
| Dimensions A in mm | 42 mm | |
| Dimension B in mm | 40.1 mm | |
| Dimensions C in mm | 36.7 mm | |
| Dimensions D in mm | 28 x 5 mm |
