Articleno.
20660190

KF DN 10/16External centring ring for small flange

Overview

External centring ring for small flange in action

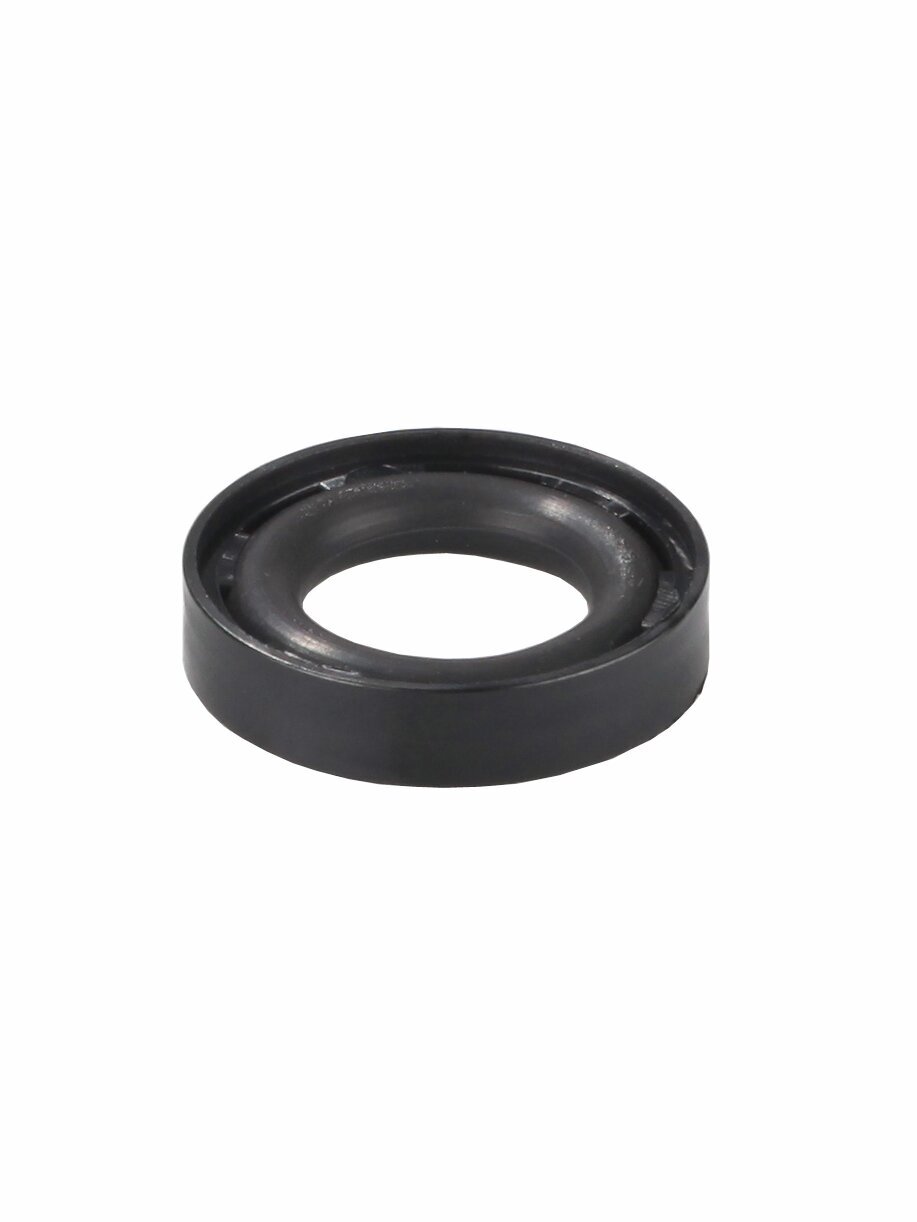

External centering ring, PBT, sealing ring NBR, KF DN 10/16

Technical data and graphs

Material PBT
Material sealing NBR
Nominal width KF DN 10/16
Dimensions A in mm 32 mm
Dimension W in mm 30.1 mm
Dimensions C in mm 27.7 mm
Dimensions D in mm 18 x 5 mm
