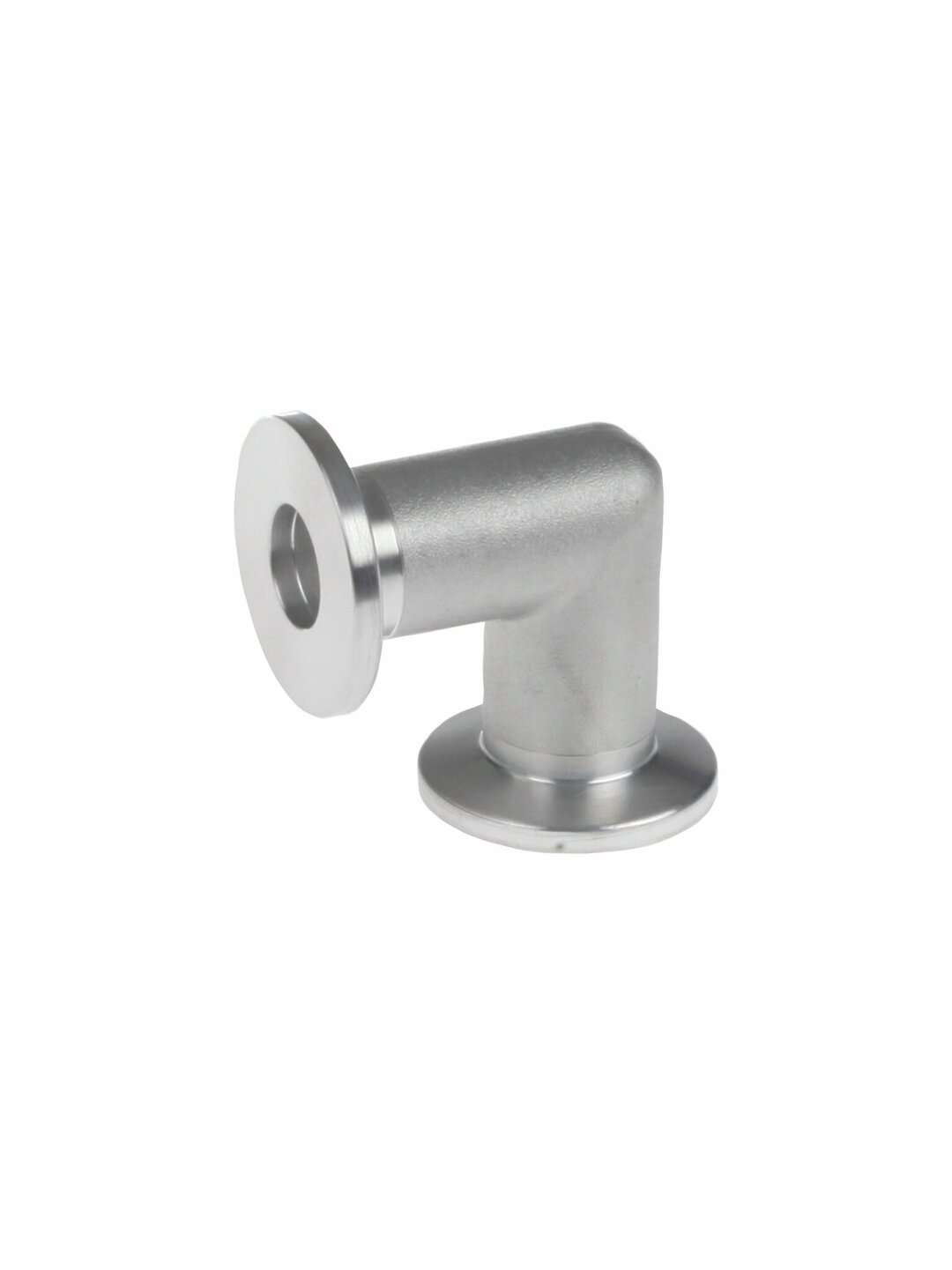

KF DN 16/16Elbow piece with small flanges
Overview
Articleno.
20669404
Elbow piece with small flanges in action
Elbow, aluminum, KF DN 16
Technical data and graphs
| Material | Aluminum | |
| Nominal width | KF DN 16 | |
| Dimensions A in mm | 39 mm |
