MZ 2D NTDiaphragm pump
Overview
- contamination-free pumping and evacuation
- high flow rate even near ultimate vacuum
- whisper quiet and very low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
- This pump is supplied without a power cable. You can order the power cable in our online store separately with item number 20612065.
Ultimate vacuum
4 mbar
Max. pumping speed 50 Hz
2.3 m3/h
Diaphragm pump in action
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in these MZ 2 series pumps that are in contact with pumped media are made of aluminum, stainless steel and selected plastics, allowing a wide range of applications for non-corrosive gases. The two-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 4 mbar. The highly flexible fabric-reinforced double diaphragms made of FKM provide high reliability and extended operating life. The NT-series features further improved performance data and compact design. Two-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at medium vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens and aqueous filtrations. The MZ 2D NT is ideal as backing pump for turbomolecular drag pumps and for pumping down in helium cryostats due to its better ultimate vacuum.
Technical data and graphs
| Max. pumping speed 50 Hz | 2.3 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.5 cfm | Select diagram |
| Ultimate vacuum | 4 mbar / 3 torr | |
| Number of heads | 2 | |
| Number of stages | 2 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | small flange KF DN 16 | |
| Outlet connection | Silencer / G1/4" | |
| Rated motor power | 0.18 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 246 mm | |
| Dimension B in mm | 242 mm | |
| Dimension H in mm | 198 mm | |
| Weight | 11.4 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 47 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 200-230 V | |
| Rated mains voltage range 2 | 100-115 V | |
| Rated mains voltage range 3 | 120 V | |
| Mains frequency 1 | 50-60 Hz | |
| Mains frequency 2 | 50-60 Hz | |
| Mains frequency 3 | 60 Hz |
für Zoom klicken
Max. pumping speed 50 Hz
für Zoom klicken
Max. pumping speed 60 Hz
für Zoom klicken
Pump down graph 50 Hz (10 l volume)
für Zoom klicken
Pump down graph 60 Hz (10 l volume)
Downloads
Equipment
-

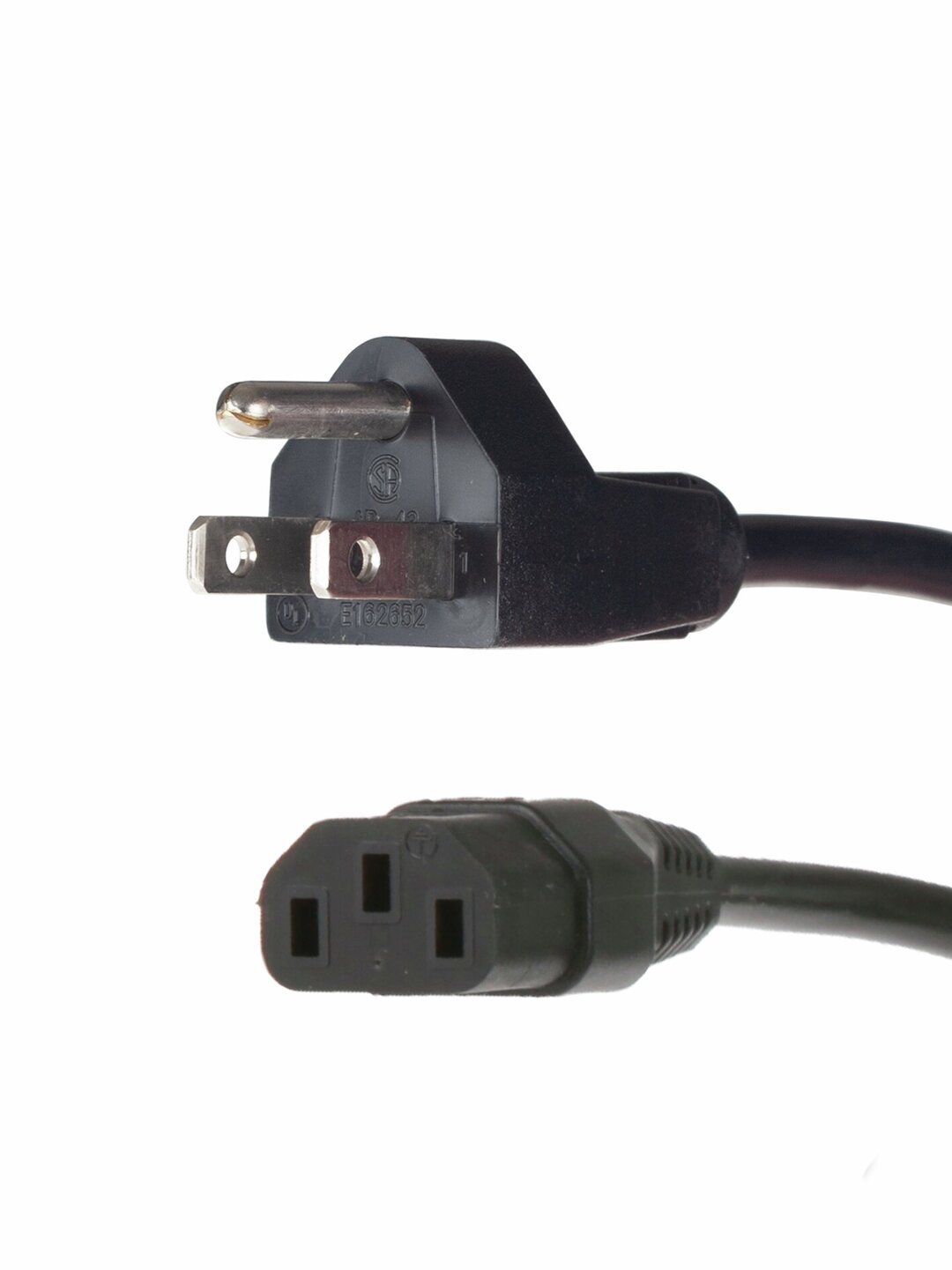

![Mains cable 120 V, US]()
