MD 1Diaphragm pump

Overview

  • contamination-free pumping and evacuation
  • high flow rate even near ultimate vacuum
  • excellent ultimate vacuum
  • whisper quiet and ultra-low vibration
  • proven long diaphragm life, maintenance-free drive system

Ultimate vacuum

1.5 mbar

Max. pumping speed 50 Hz

1.2 m3/h

On demand

Inquire

Diaphragm pump in action

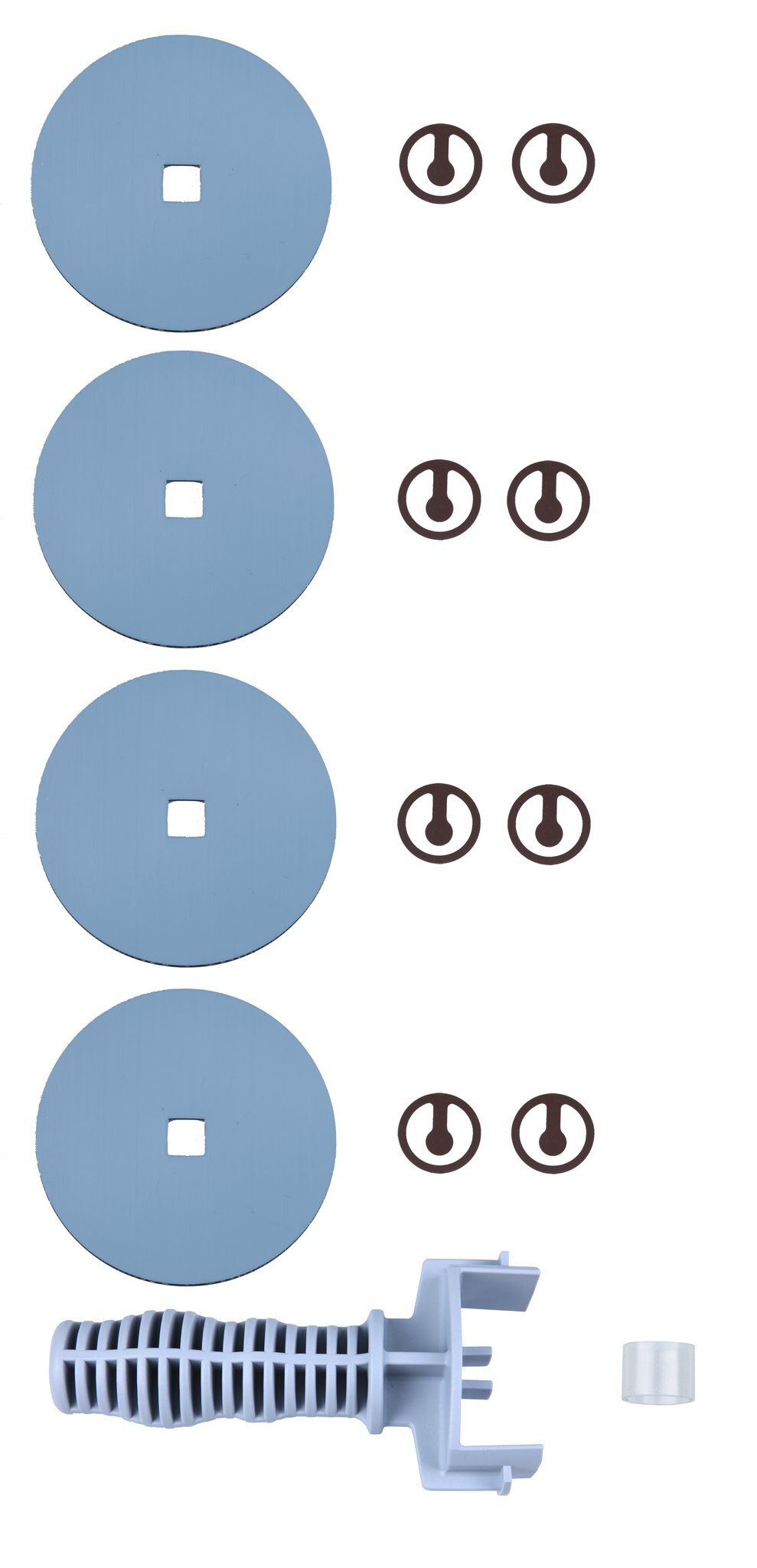

The MD 1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum. The three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps. The MD 1 is an ultra-low vibration pump with very long diaphragm lilfetime and stable ultimate vacuum documented with years of testing. With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases. The MD 1 is an excellent choice for continuous, oil-free evacuation and pumping of non-aggressive gases. It is suitable for high vacuum requirements at modest gas flow as often needed in physics and analytics. The pump is exceptionally quiet and reliable with long diaphragm and valve lifetimes. With its low ultimate vacuum and compact dimensions the MD 1 is widely used as replacement of rotary vane pumps. Typical applications are exhaust gas analysis, for degassing of small amounts of viscous media and in particular as backing pump for compact turbomolecular drag pumps. Back diffusion of oil or even oil back flow, e.g., into a high vacuum chamber is excluded due to its oil-free operation. For equipment manufacturers customized versions are available.


Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz 1.2 m3/h Select diagram
Max. pumping speed 60 Hz 0.82 cfm Select diagram
Ultimate vacuum 1.5 mbar / 1.1 torr
Number of heads 4
Number of stages 3
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection Hose nozzle DN 6 mm
Outlet connection Silencer / G1/8"
Rated motor power 0.08 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 326 mm
Dimension B in mm 143 mm
Dimension H in mm 215 mm
Weight 7.3 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 40 dBA
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 220-230 V
Rated mains voltage range 2 100-115 V
Rated mains voltage range 3 120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 50-60 Hz
Mains frequency 3 60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

MD 1 Diaphragm pump
MD 1 Diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 5 MB 5.9 MB 5 MB 8.7 MB 5 MB 5 MB 4.9 MB 5 MB 8.6 MB
Download Download Download Download Download Download Download Download Download
