VKE 16Ball valve

Overview

Articleno. 20675504
On demand
VKE 16 Ball valve

By submitting the contact form, you agree that your data will be used to process your request. If your inquiry comes from a country in which we do not have our own sales department, you also consent to your data being forwarded to the responsible local trading partner. You can find an overview of the trading partners on our contact page. Further information on data processing, including possible third country transfers, can be found in our data protection information.

Anti-Robot Verification
FriendlyCaptcha ⇗

Inquire
Add to Wish List
Add to Compare list
main product photo

Ball valve in action

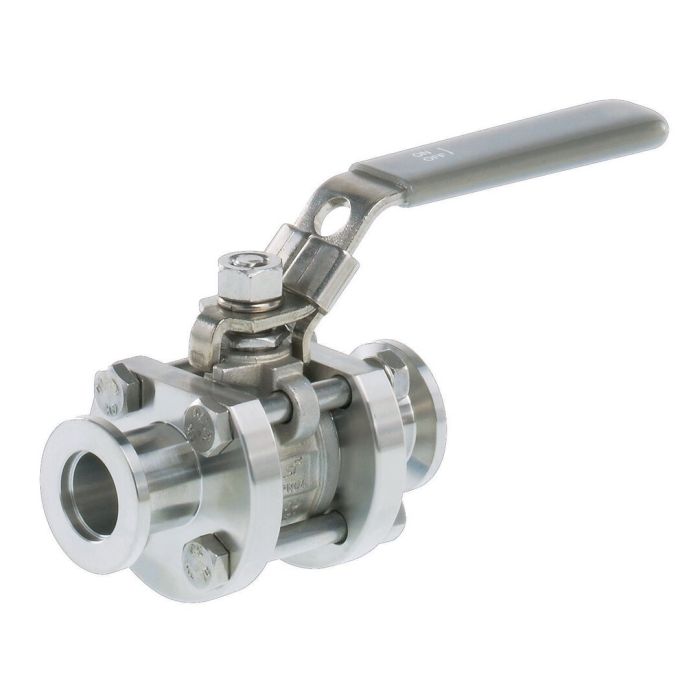

Ball valve VKE 16, stainless steel, KF DN 16

Valves of the VK series are sturdy isolation devices for the rough and fine vacuum range. A precisely machined ball with a hole through the middle is rotated by means of shaft and lever. When the valve is open, the hole provides unimpeded passage of media over the entire nominal cross section. Ball valves are therefore also used for load locks, e.g., for sample holders, thermocouples or helium supply lines. The VKE series uses stainless steel for the metal parts and fiberglass reinforced PTFE seatings.


Technical data and graphs

Upper ambient temperature (operation) 80 °C
Lower ambient temperature (operation) 0 °C
Max. gas temperature 80 °C
Flange connection small flange KF DN 16
Operation Manual
Leakage rate 1 x 10-6 mbar l/s
Leakage rate of seat 1 x 10-6
Fitting length between flanges 80 mm
