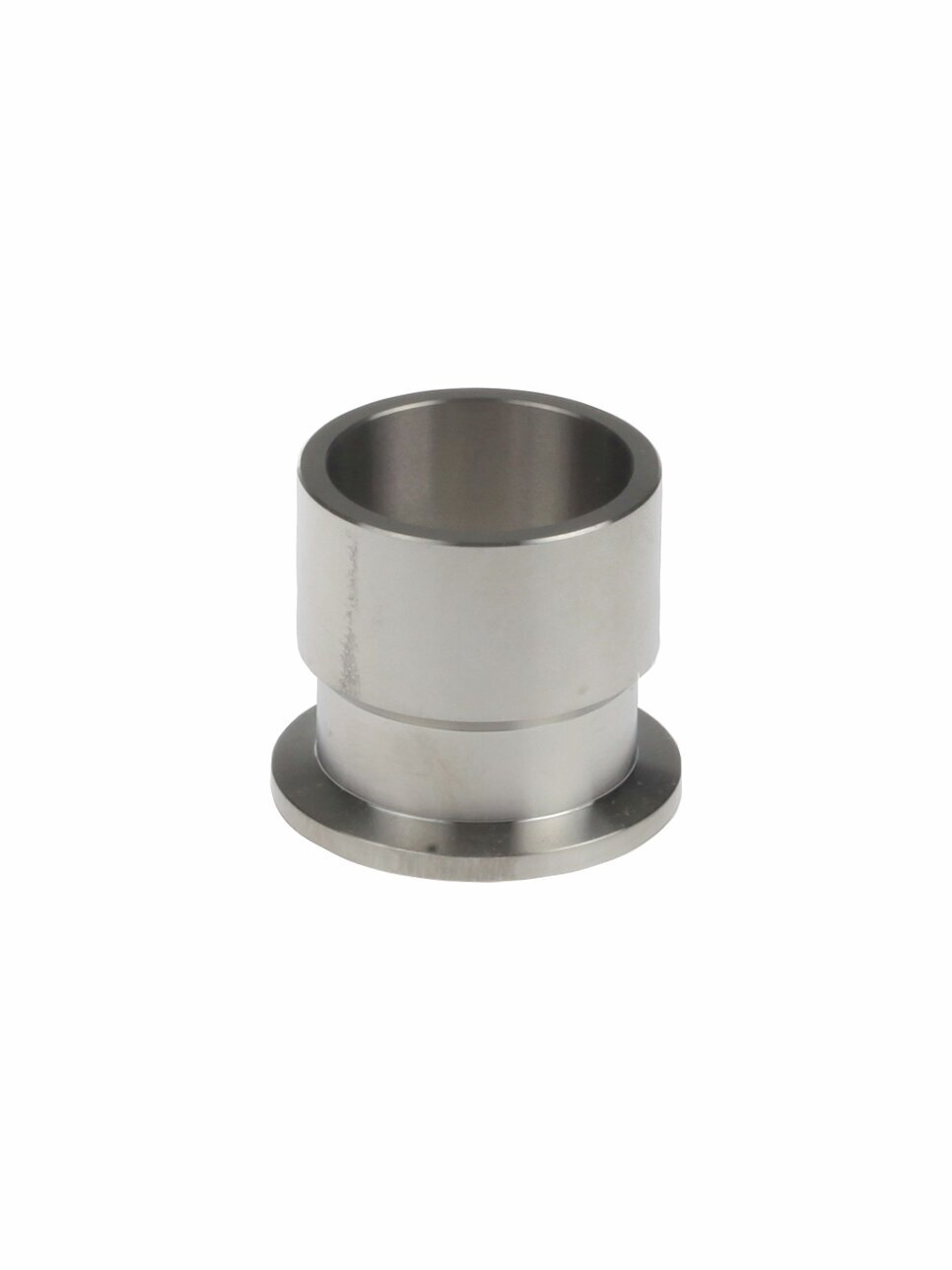

KF DN 40 / NS 29/32Small flange with female ground joint
Overview
Articleno.
20662804
Small flange with female ground joint in action
Small flange with female ground joint, stainless steel, KF DN 40, NS 29/32
Technical data and graphs
| Dimensions A in mm | 35 mm | |
| Dimension B in mm | 29.2 mm | |
| Dimensions C in mm | 32 mm |
